The universal bracket

    • Note：
          Using universal stands can extend working area, can observe objects in any direction. There are 4 kinds of universal stands can be selected.

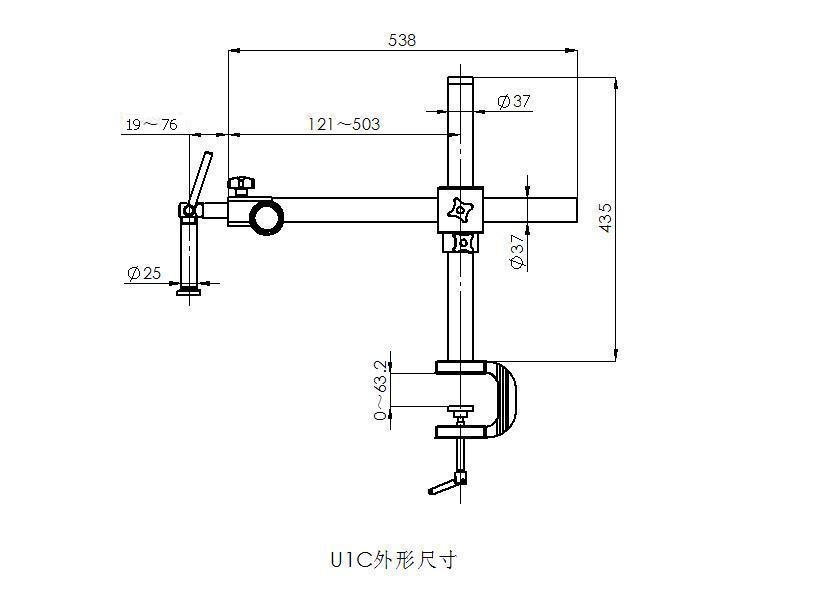

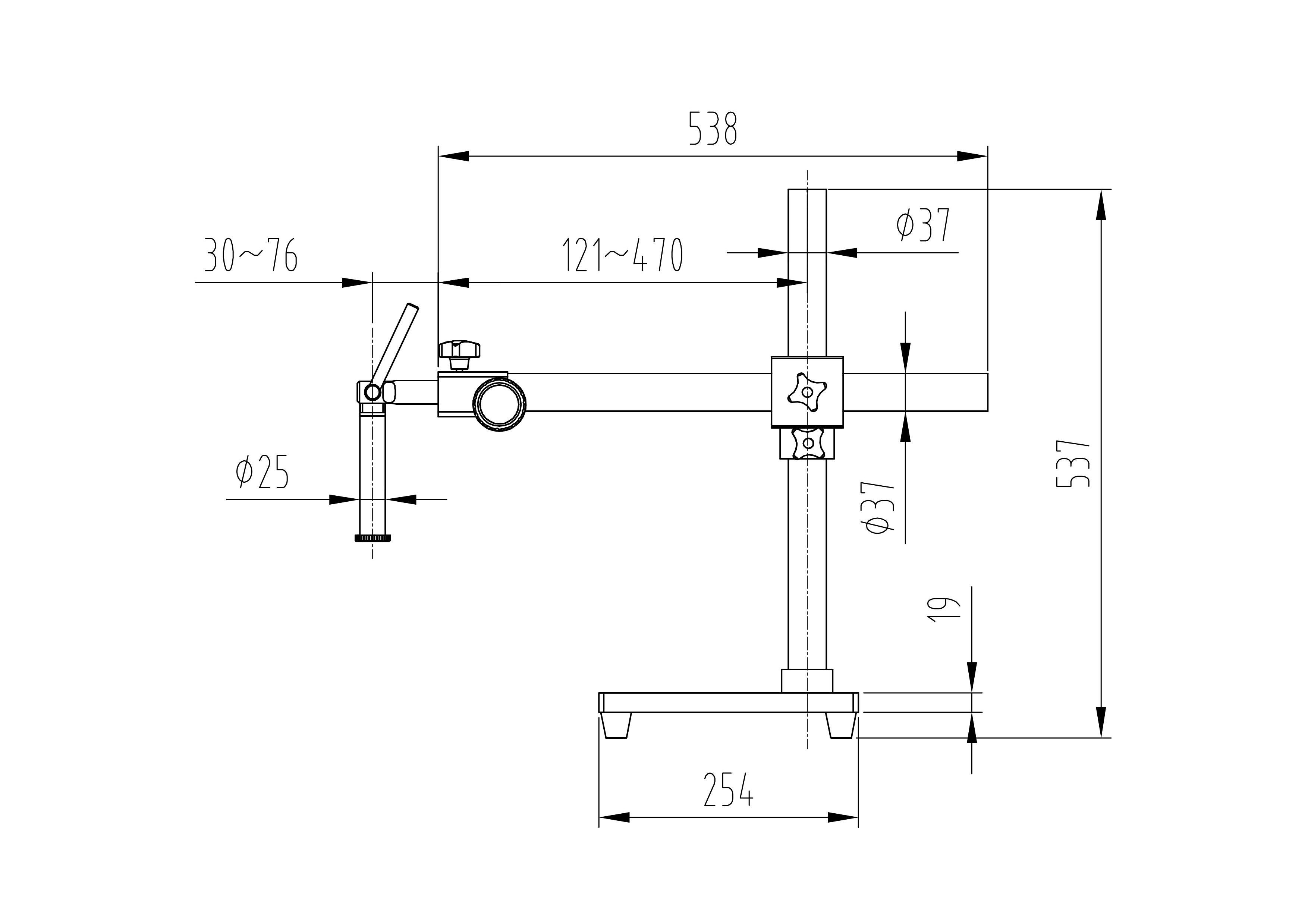

       Model: U1 or U1C universal stand
       Introduction:
    ● Cast iron oleplate，anticorrosive and wearable metal post，aluminium alloy rail.
    ● Use with holder SF1，can observe object with any direction，enlarge the range of observation.
    ● The size of the soleplate: 254×254×40mm(used in U1)
    ● The maximal clamped thickness of U shape nip: 63.2mm(used in U1C)
    ● The height of post：475mm，diameter：Φ37mm ● Rail with gear ang rack flexed adjustment, the shortest flexed length is 560mm, and the longest is 605mm, diameter：Φ37mm
    ● The measurement to match between the steeve and the aperture：Φ25mm

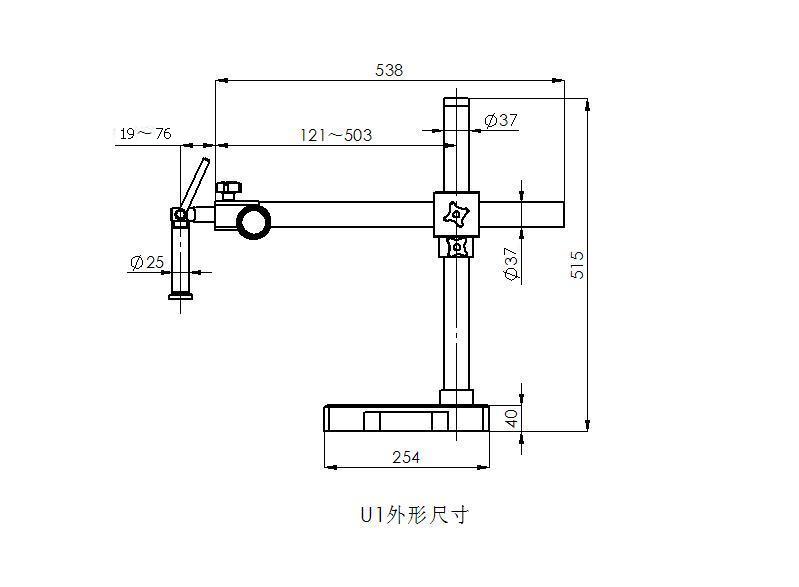

    U1 exemplify

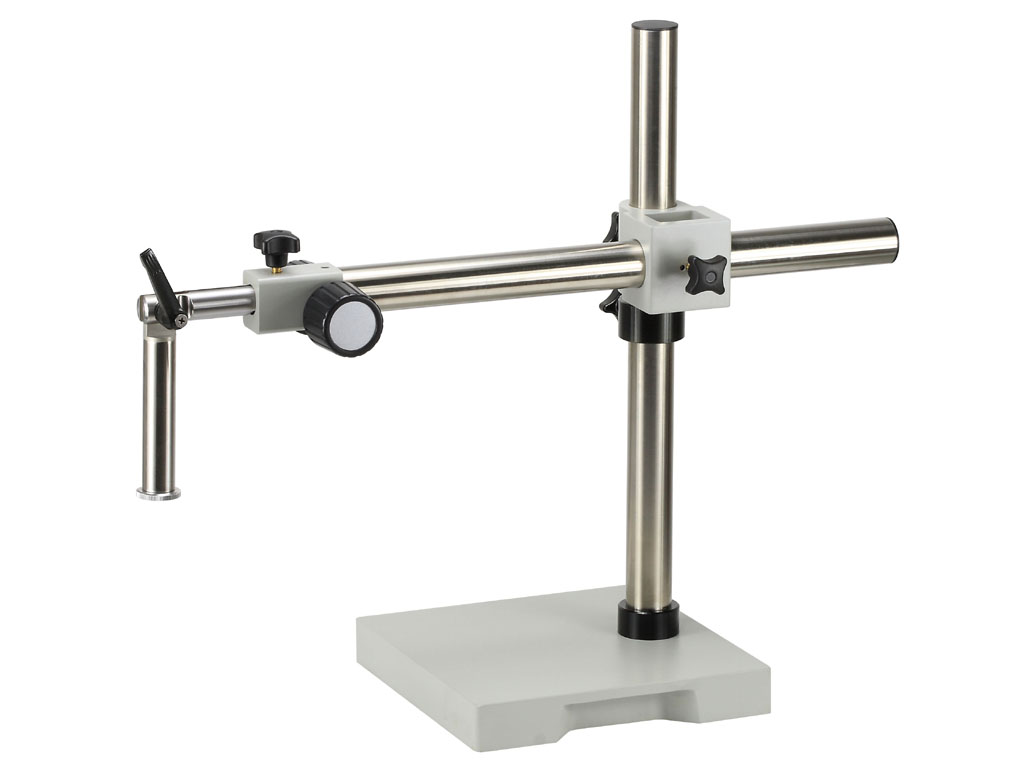

    U1

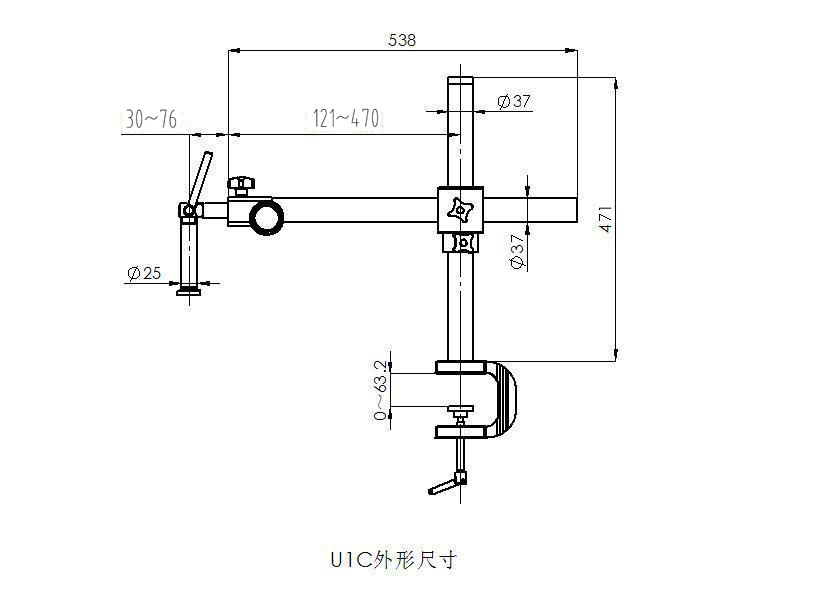

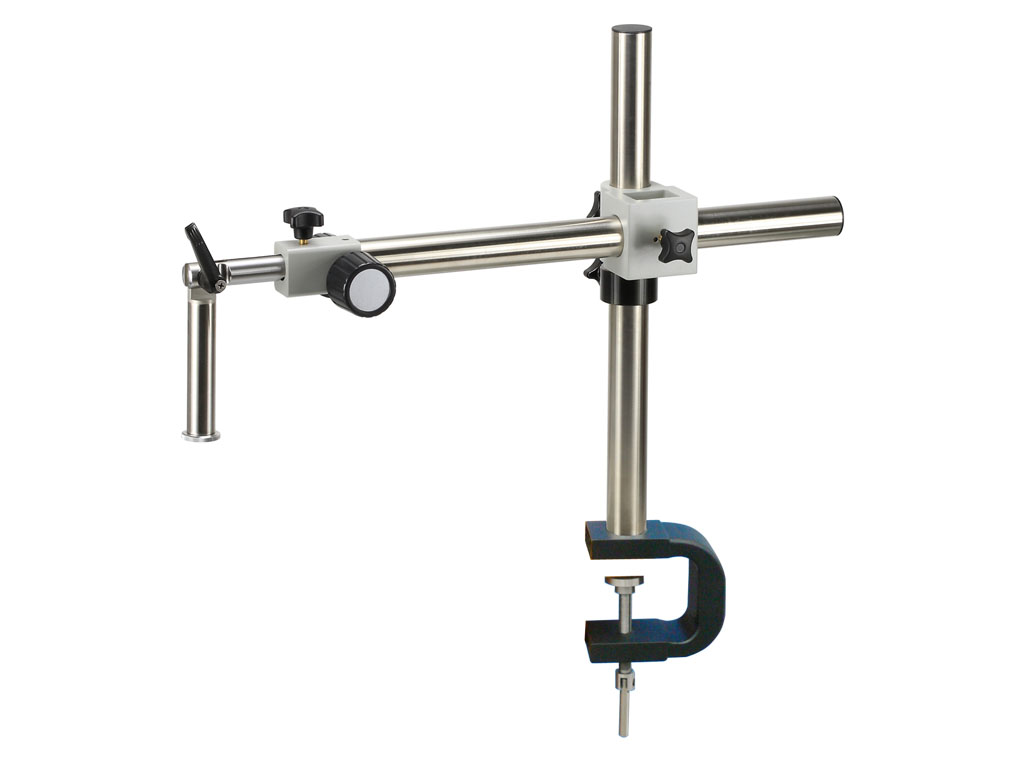

    U1c

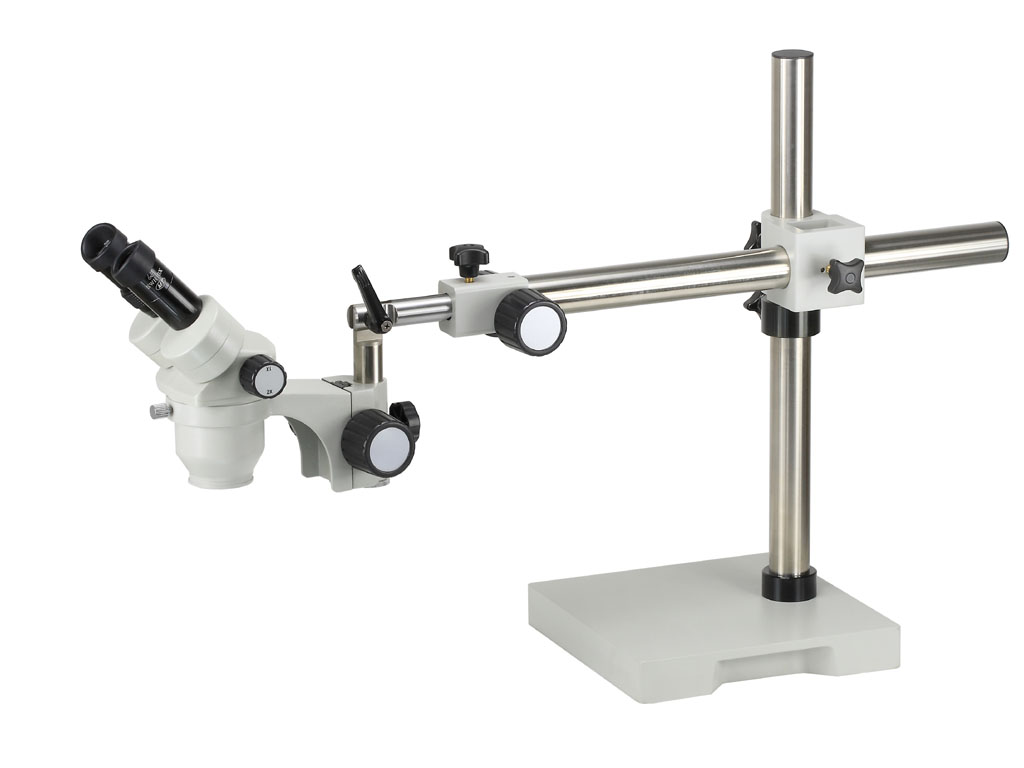

    U1+MTS112+SF1

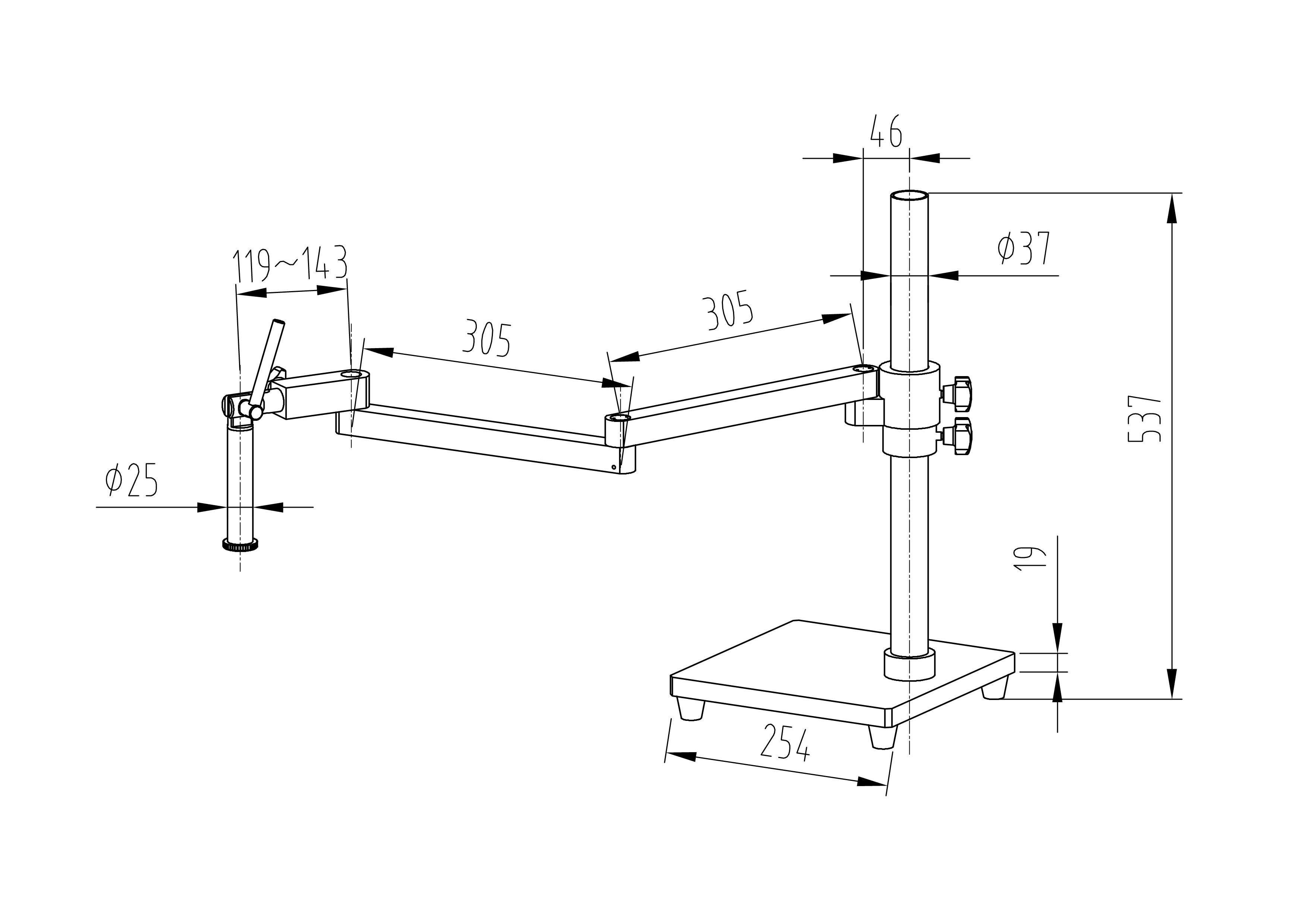

      Model: U2 or U2C universal stand
      Introduction:
      ● Cast iron soleplate，anticorrosive and wearable metal post，aluminium alloy telescopic rail. Use with holder SF1，can observe object with any direction，enlarge the range of observation.
      ● The size of the soleplate: 254×254×40mm(used in U2)
      ● The maximal clamped thickness of U shape nip: 63.2mm(used in U2c)
      ● The height of post：475mm，diameter：Φ37mm
      ● The measurement to match between the steeve and the aperture：Φ25mm

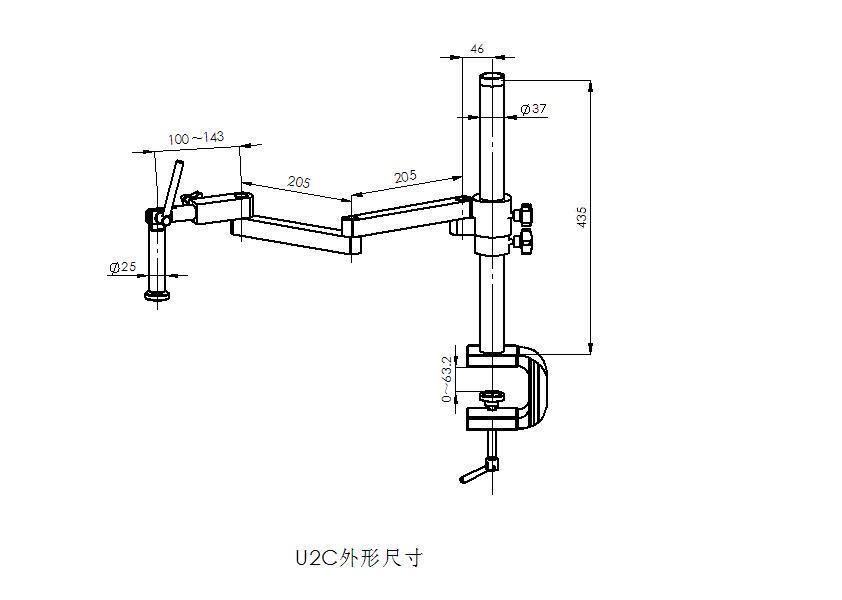

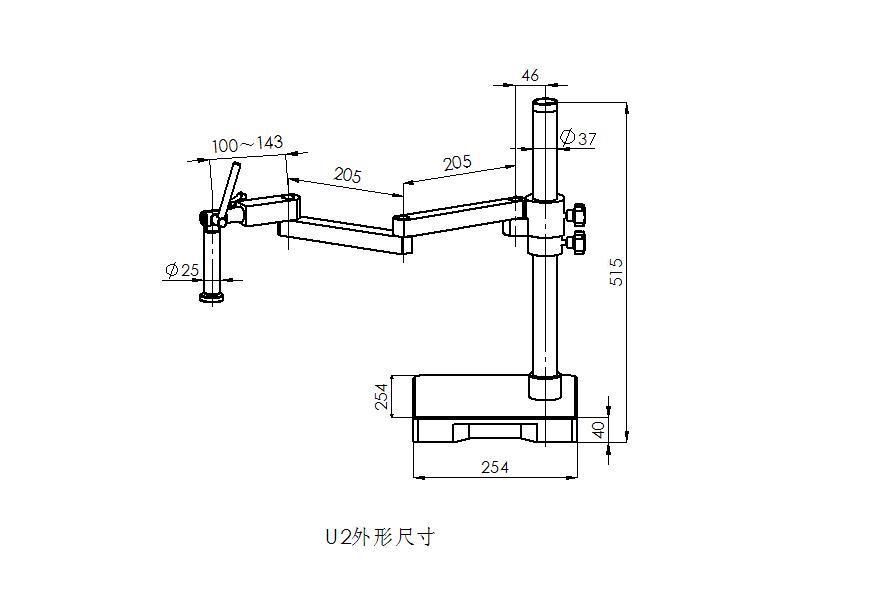

    U2 exemplify

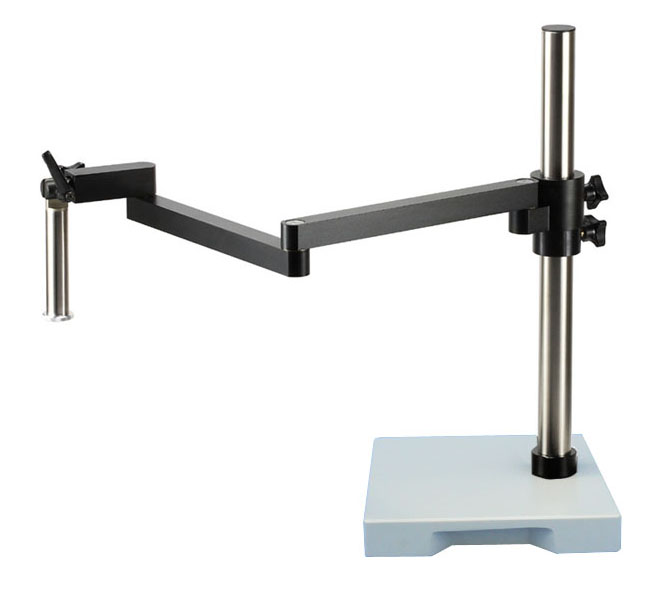

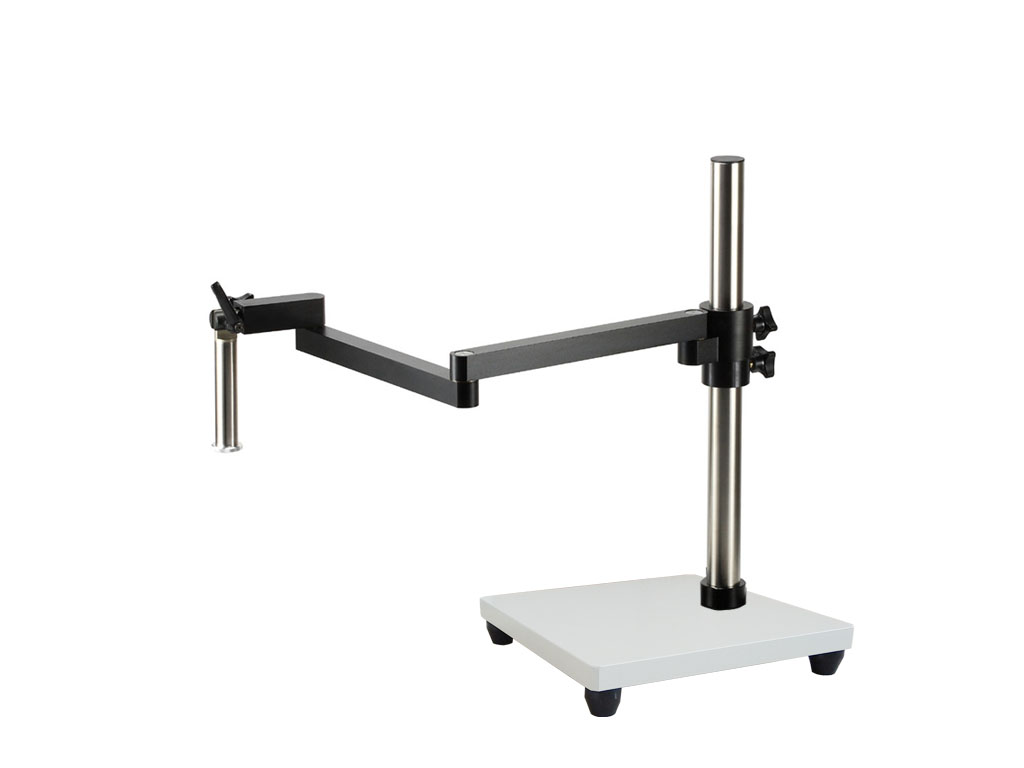

    U2

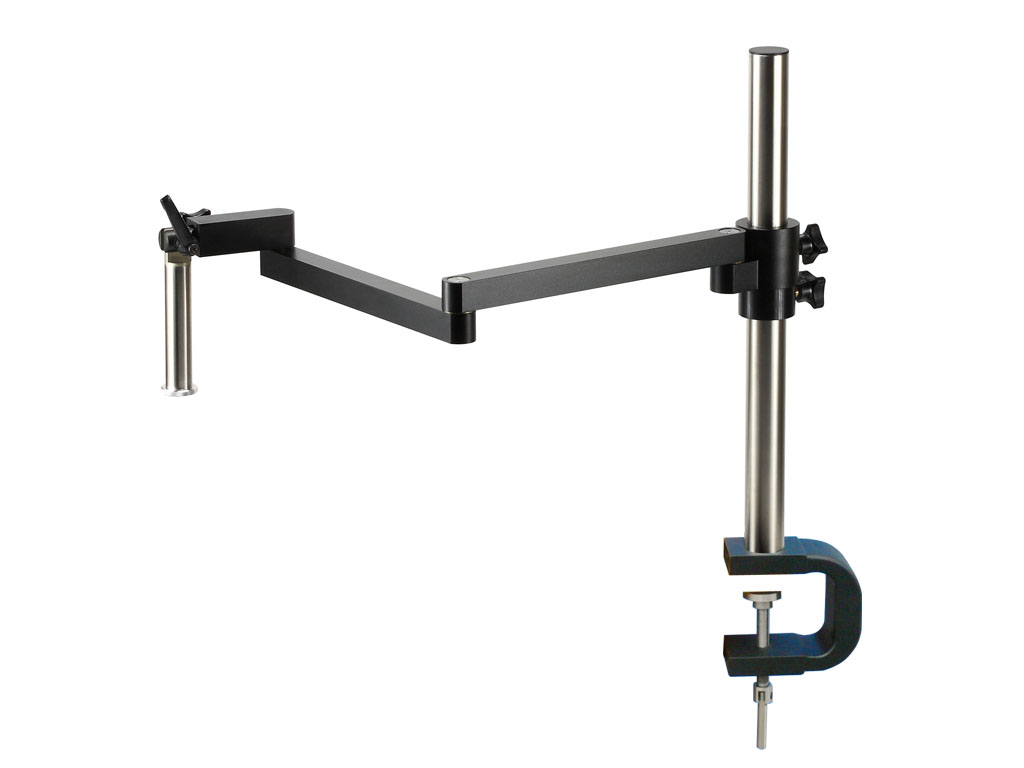

    U2c

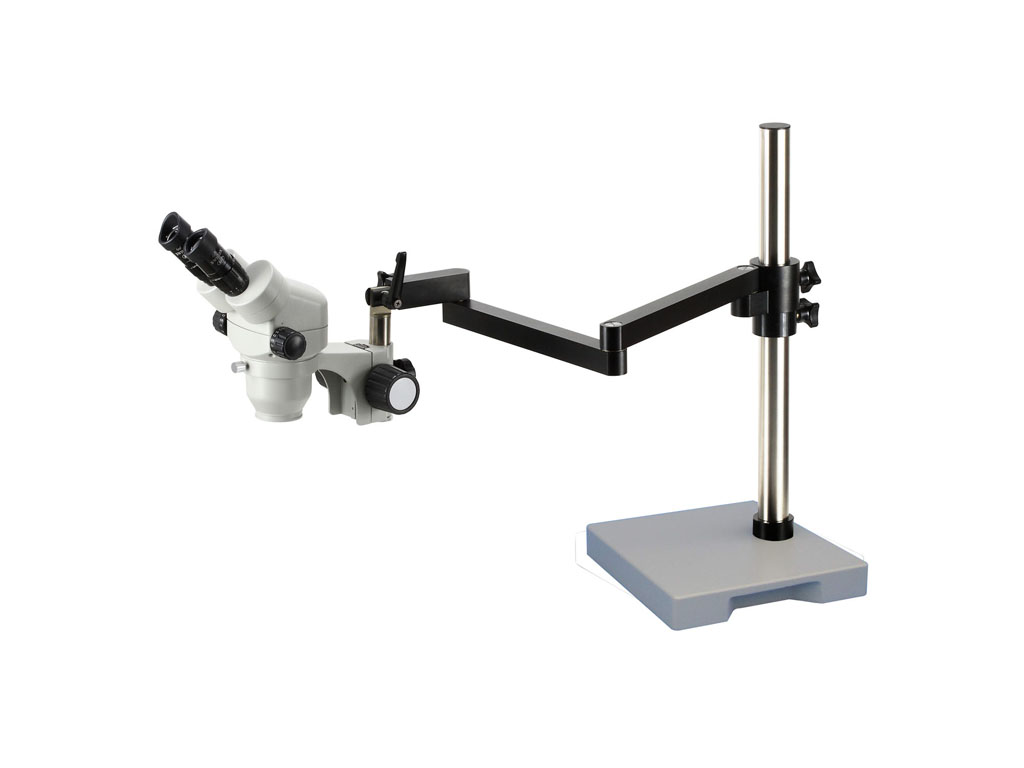

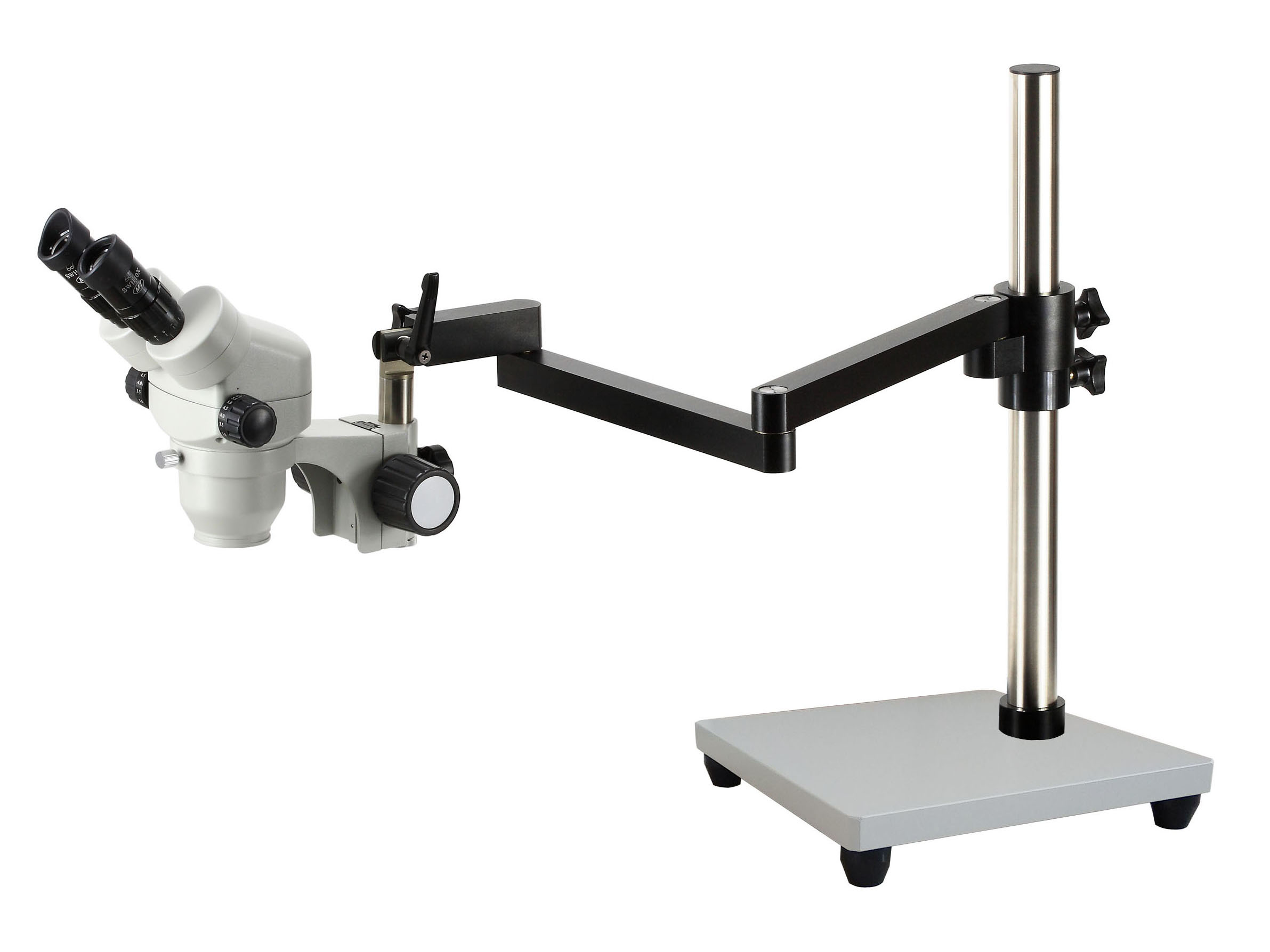

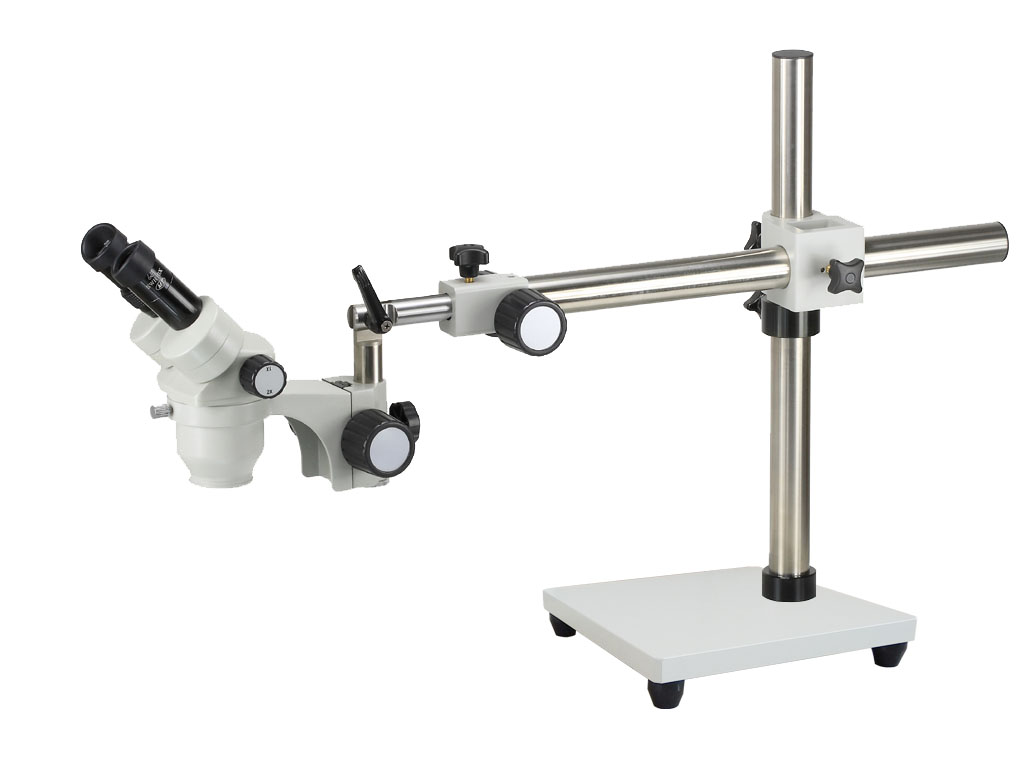

    U2+MZS1065+SF1

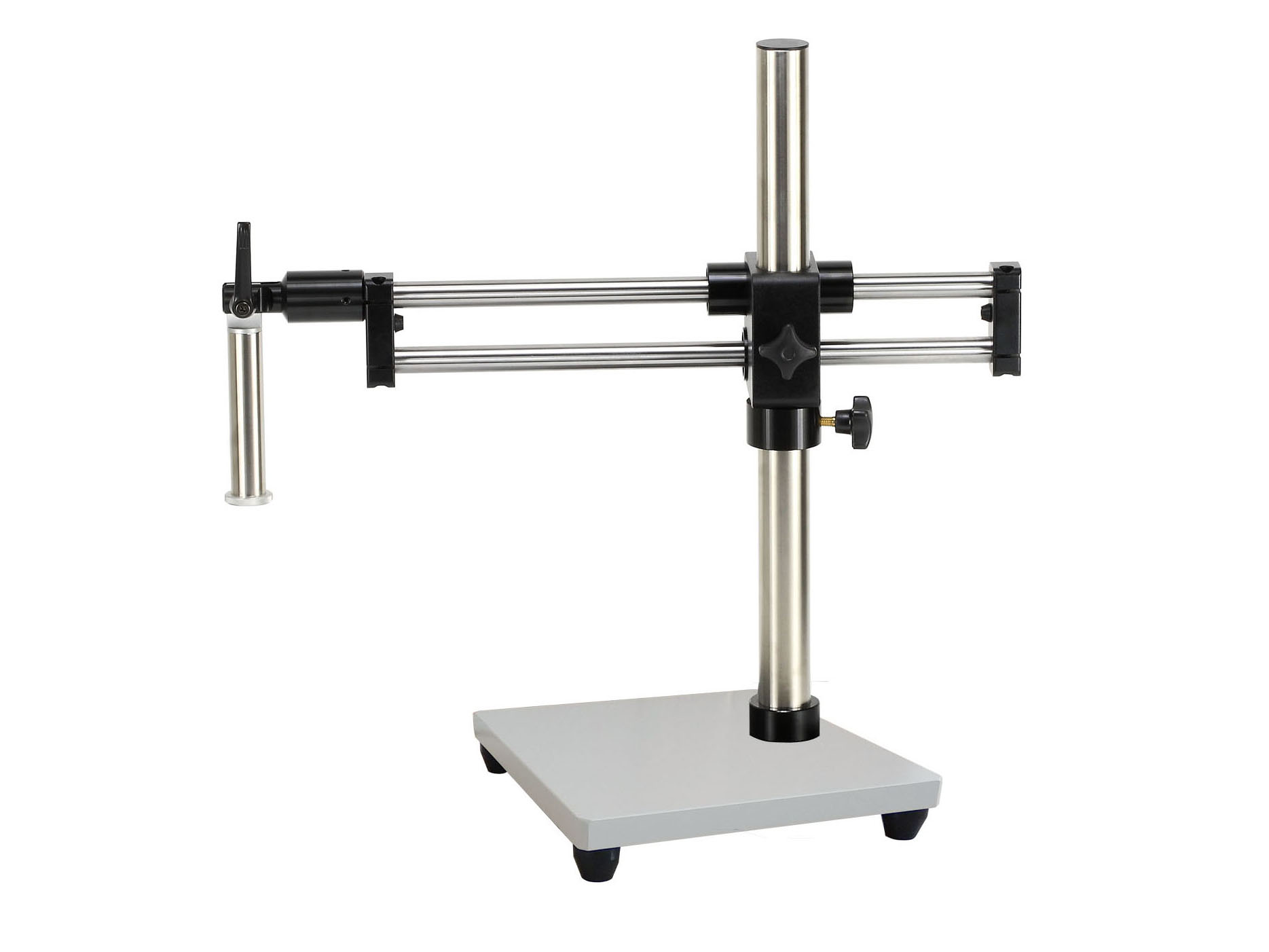

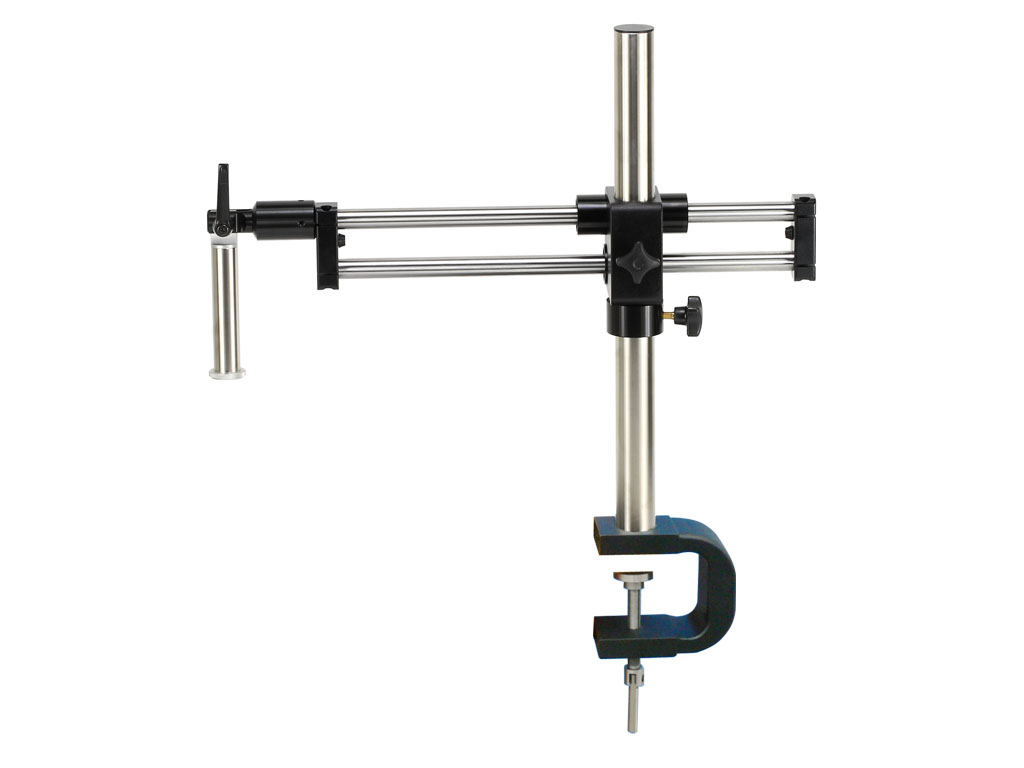

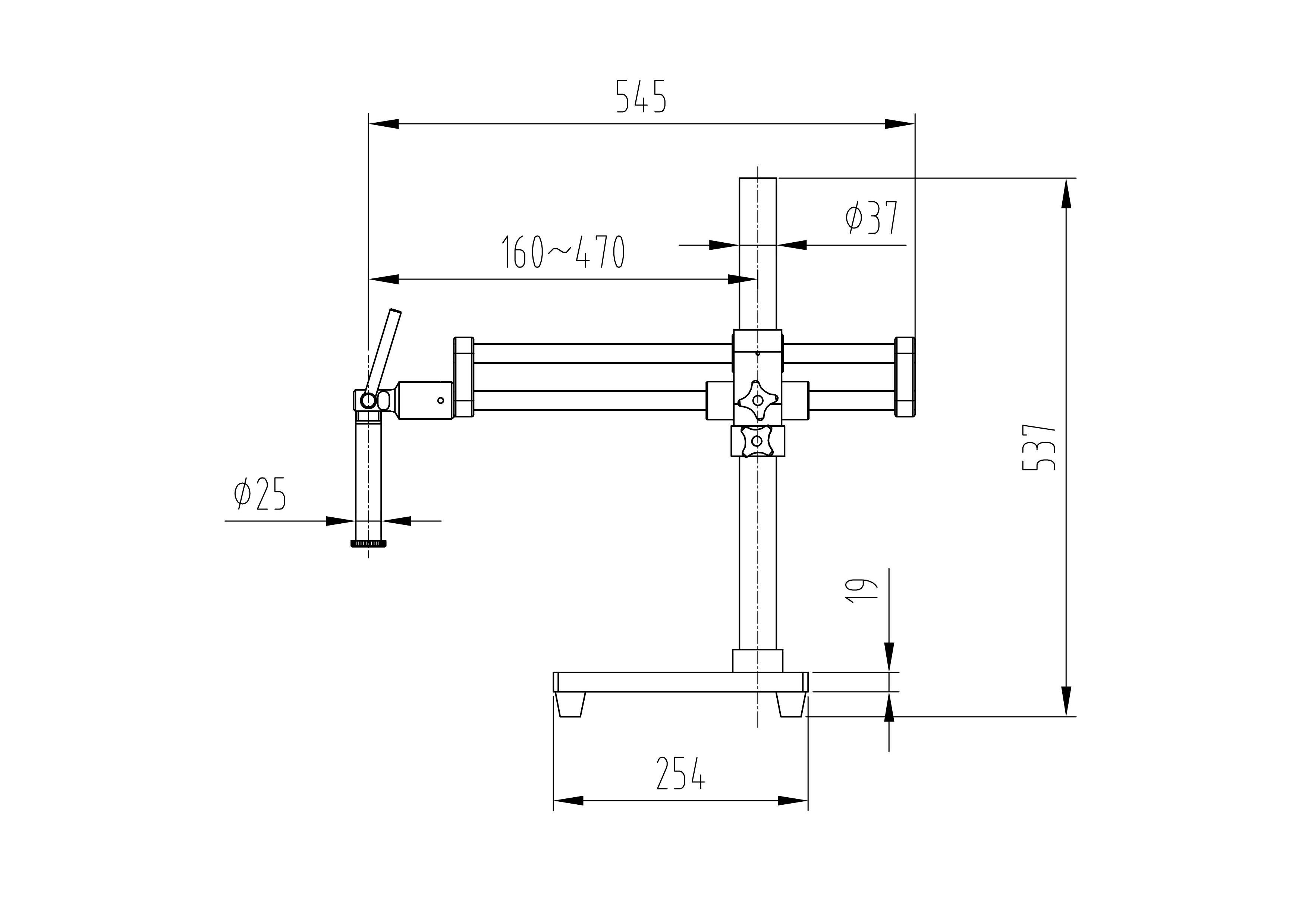

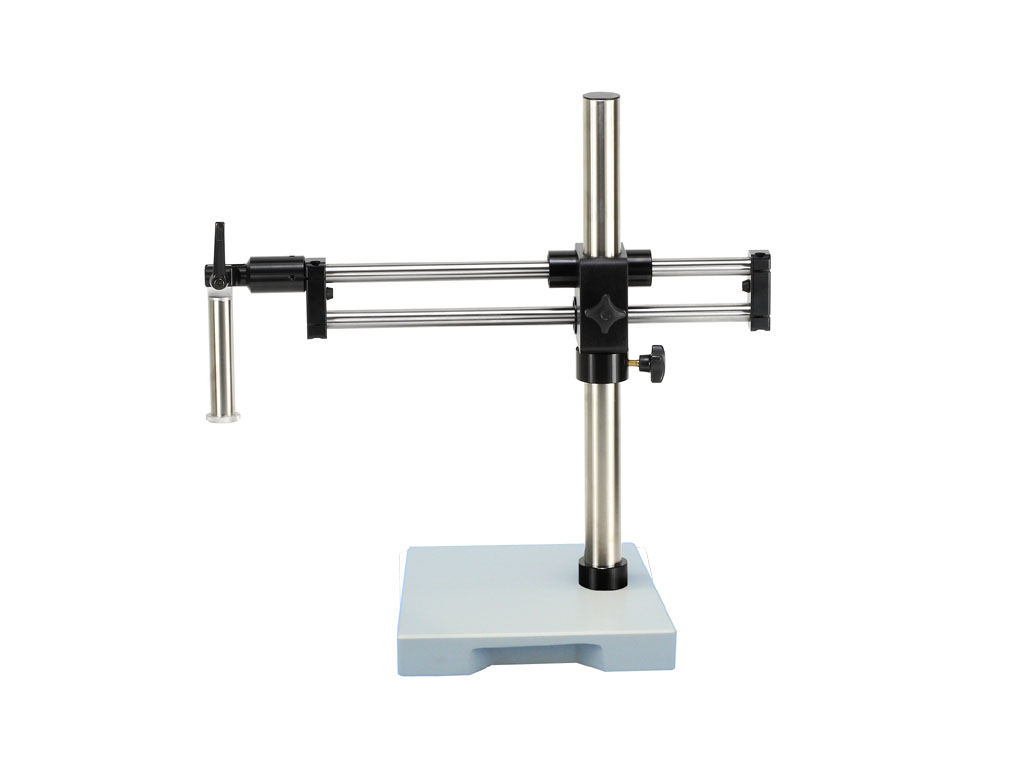

      Model: U3 or U3C universal stand
      Introduction:
      ● Cast iron soleplate，two stainless steel rails，exact sliding bearing，insure agile glide.
      ● The size of the soleplate: 254×254×40mm(used in U3)
      ● The maximal clamped thickness of U shape nip: 63.2mm(used in U3c)
      ● The height of post：475mm，diameter：Φ37mm
      ● The length of double rails：460mm，diameter：Φ19.05mm
      ● The measurement to match between the steeve and the aperture：Φ25mm

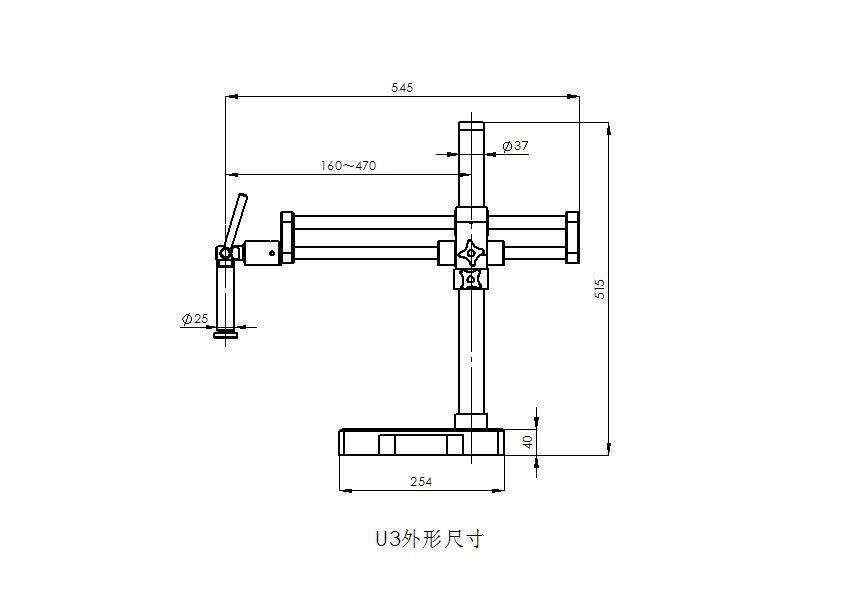

    U3 exemplify




    U3

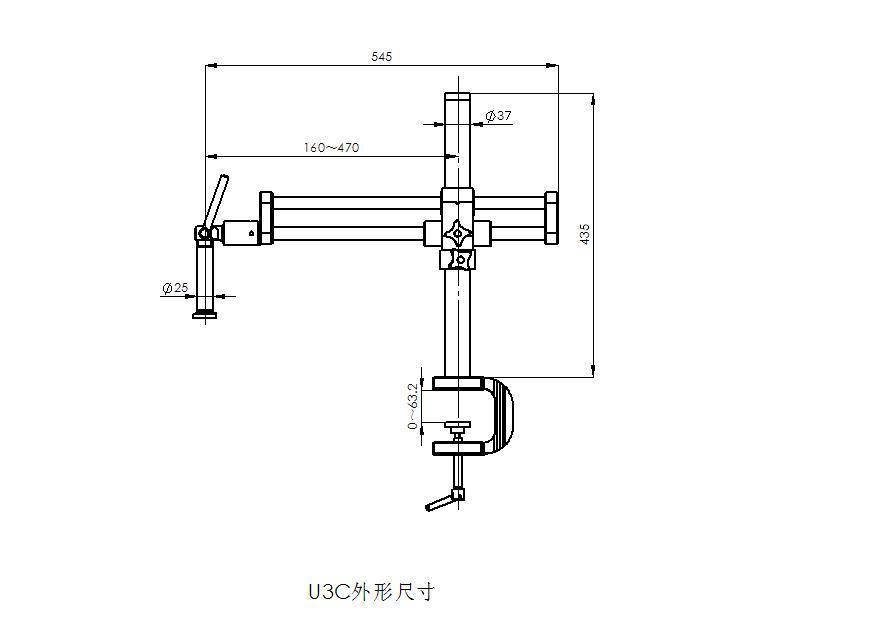

    U3c

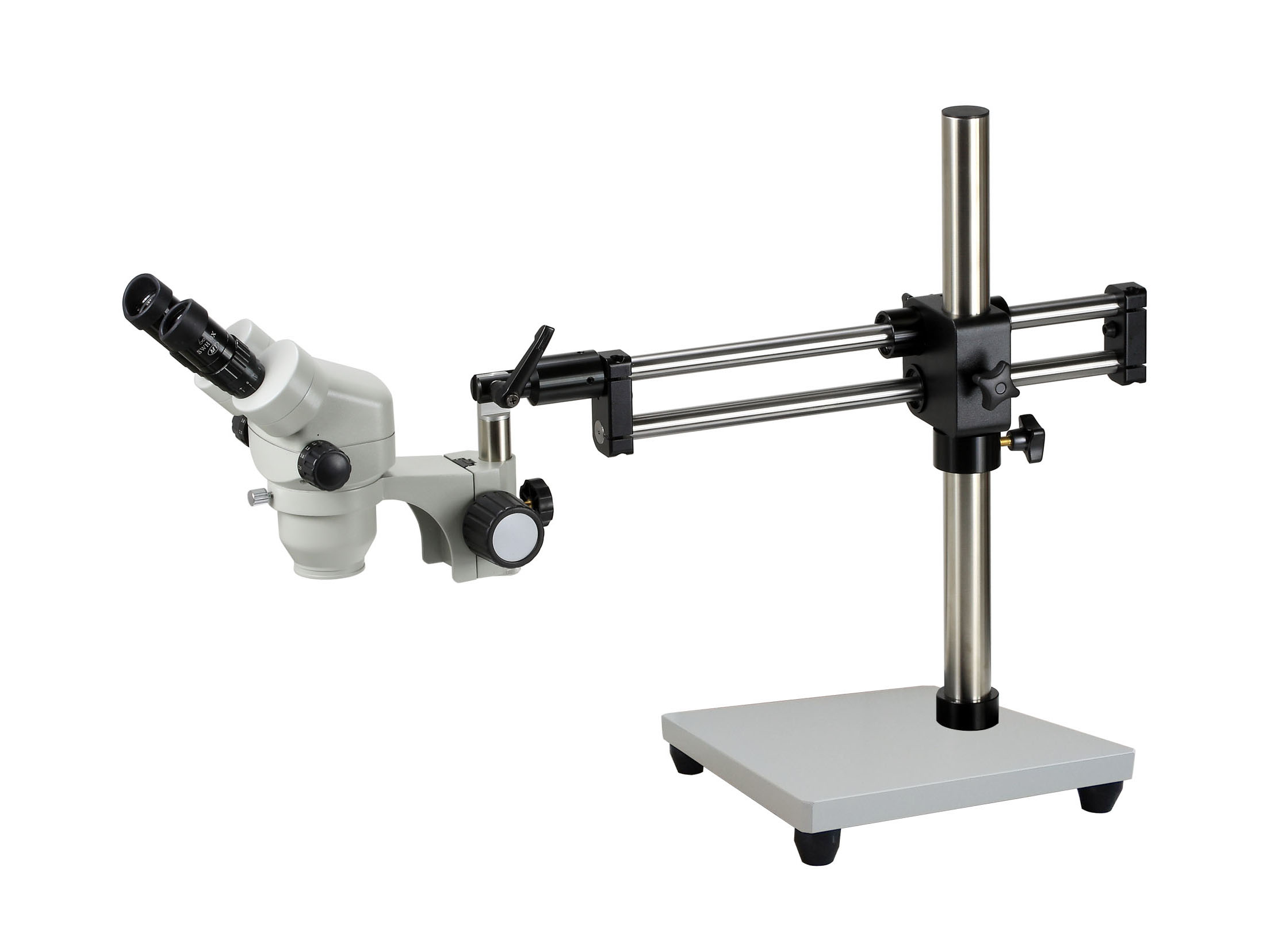

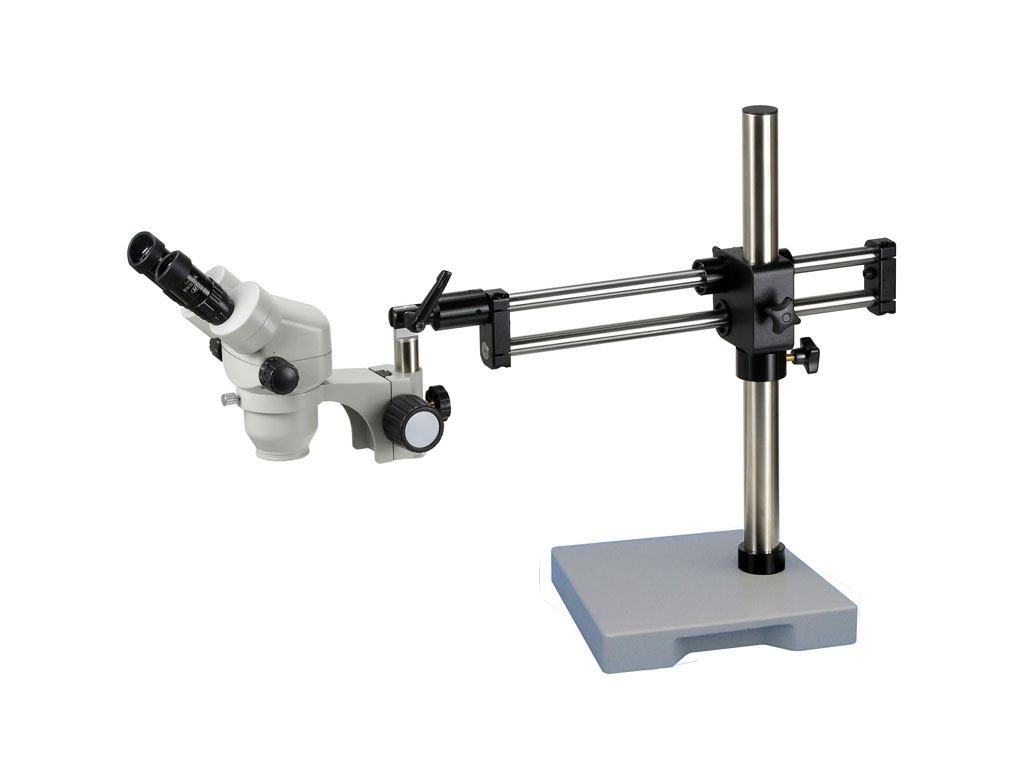

    U3+MZS0745+SF1

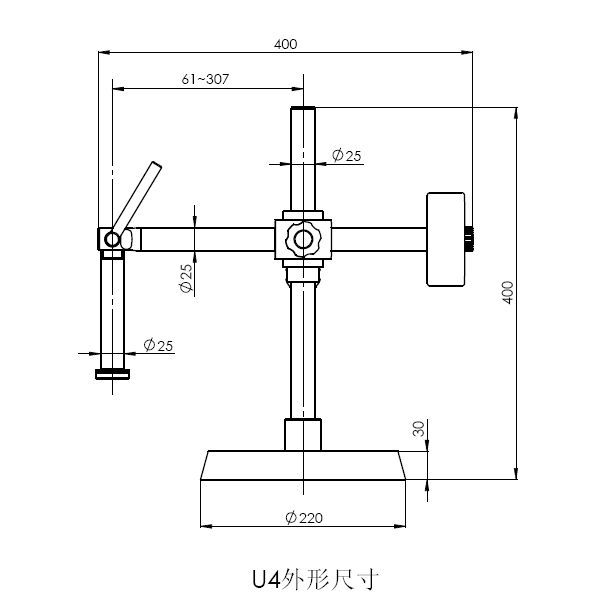

      Model: U4 minitype universal stand
      Introduction:
      ● Cast iron soleplate，anticorrosive and wearable metal post, rail. Use with holder SF1，can observe object with any direction，enlarge the range of observation.
      ● The size of the soleplate: Φ220mm , height: 30mm
      ● The height of post：345mm，diameter：Φ25mm
      ● The length of rail：345mm，diameter：Φ25mm
      ● The measurement to match between the steeve and the aperture：Φ25mm

    U4 exemplify

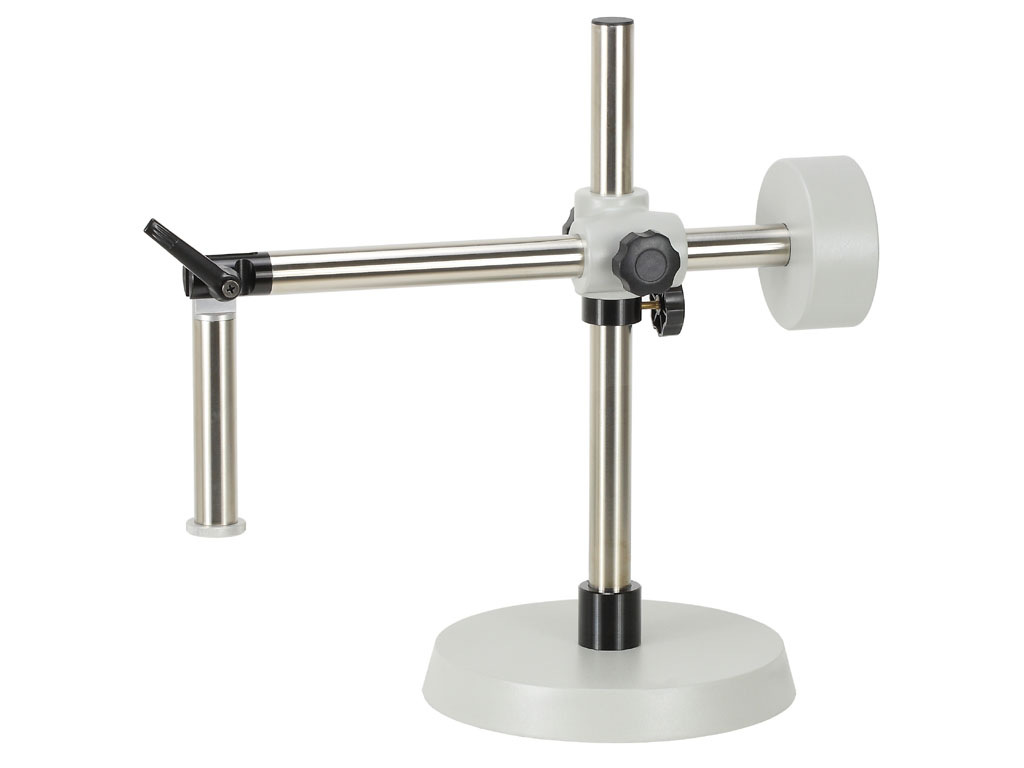

    U4

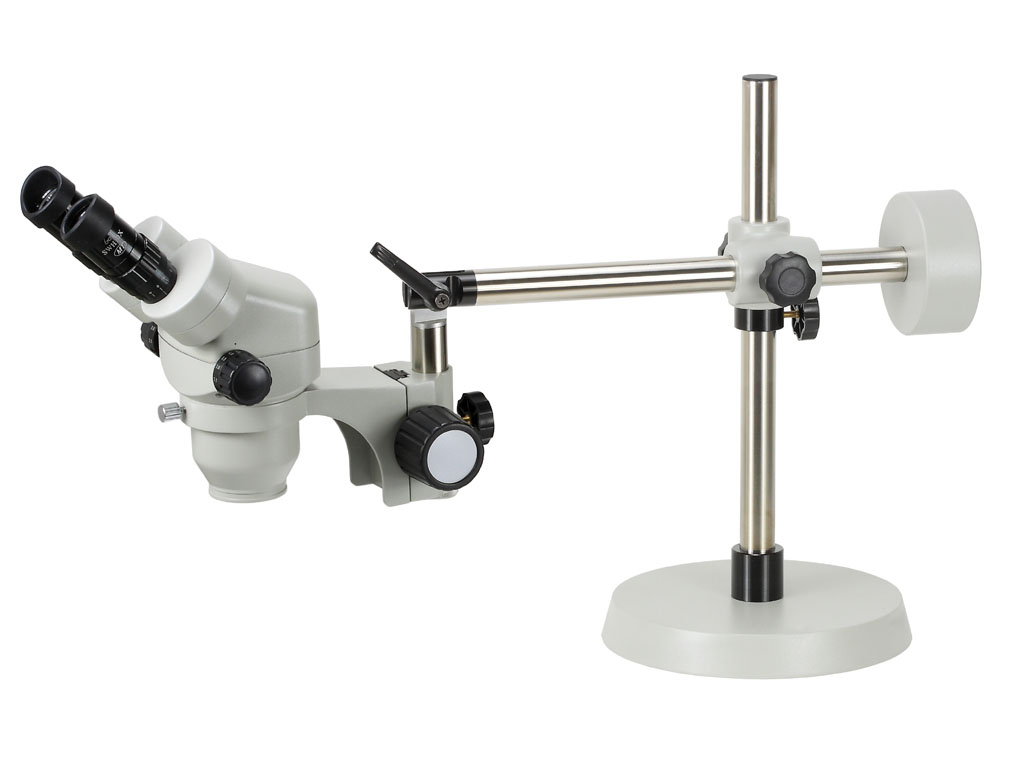

    U4+MZS0745+SF1
