Monocular Microscope Series Auxiliary illuminators

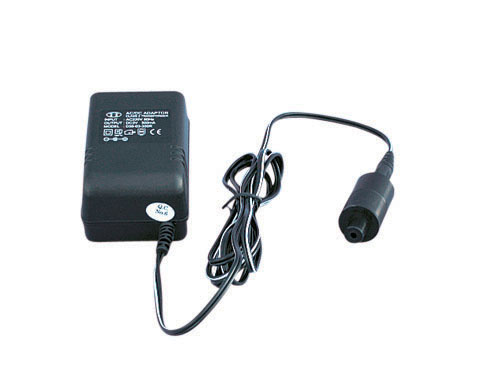

   Model:MLC100 LED coaxial illuminator

   Introduction
      Composed with transformer and LED. It can be widely applied in coaxial illumination of fixed monocular, zoom monocular etc. systems which are produced by our company.(matched size: Φ9mm, LED power is 0.1W) Especially fit for LCD manufacture and test. On account of the light intensity can not be adjusted, its using situation being limited. That maybe appear the phenomenon that objects can't be observed clearly in display because of the light being over strong.

MLC100

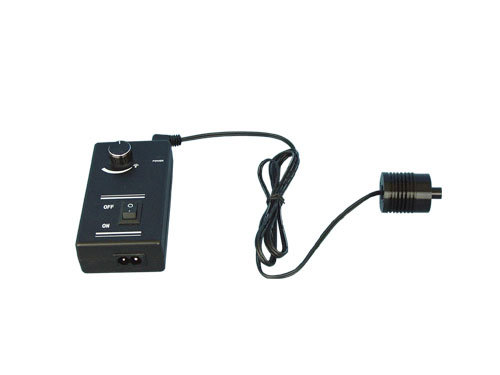

   Model:MLC100A LED coaxial illuminator

   Introduction:
      Composed with dimmer and LED. It is the type by MLC100 improved. The LED lights' bright and dim can be adjusted continuously. It overcomes the limitation of MLC100 (matched size: Φ9mm, LED power is 0.1W)

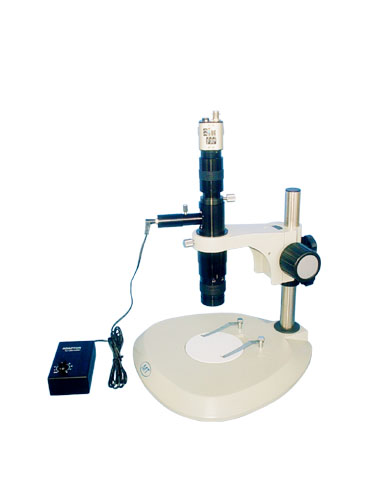

MLC100A exemplify

MLC100A

MZD0745C+SD1-D+MLC100A

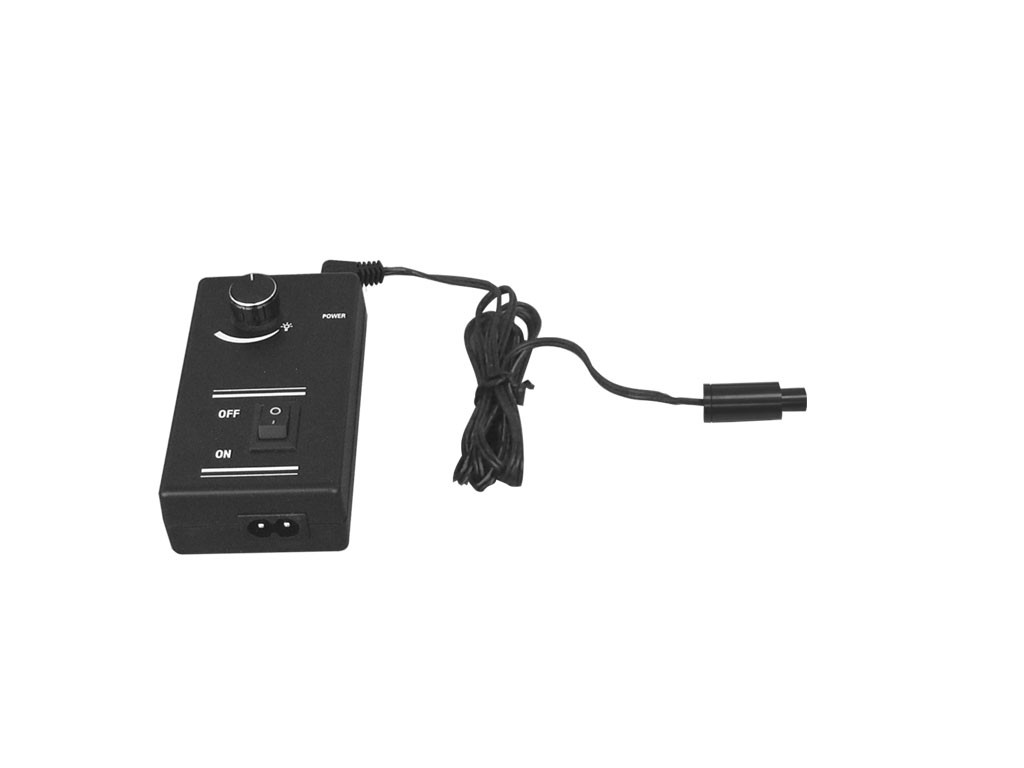

   Model:MLC1000 adjusting high lighteness LED illuminator

   Introduction:
    Composed with adjusting electrical source and high lighteness LED. Use in MZDH zoom monocular video microscope systems coaxial illumination (matched size: Φ9mm, the power is 1W), especially fit forLCD manufacture and test.

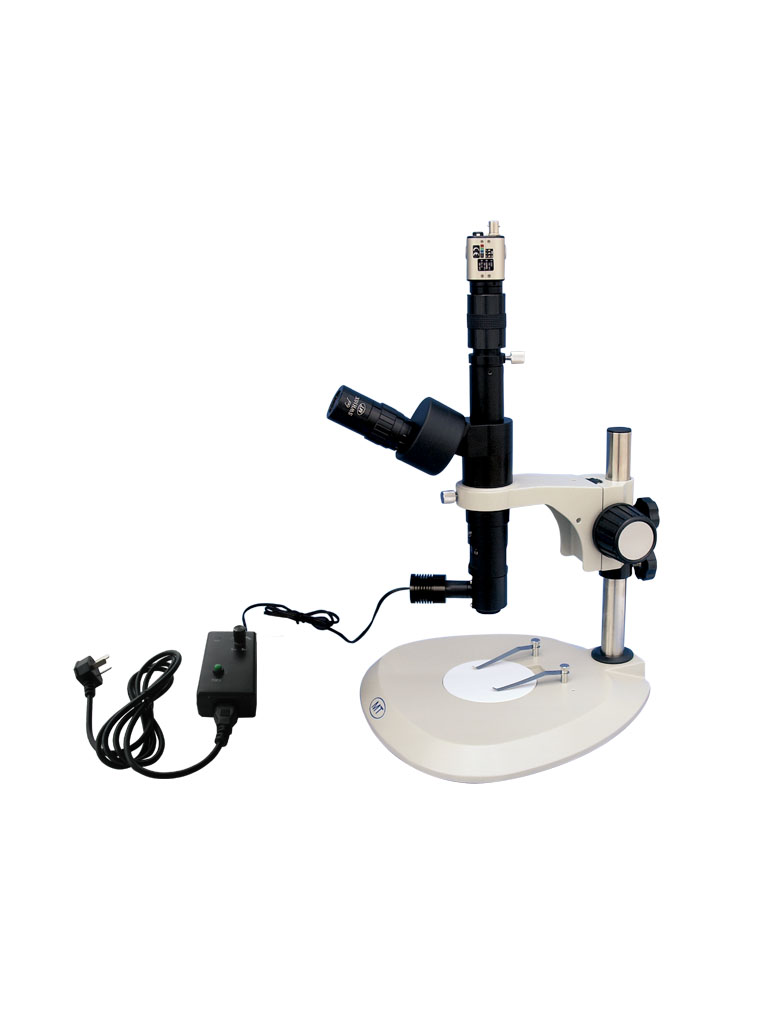

MLC1000 exemplify

MLC1000

MZDH1065TC+SD1-D+MLC1000

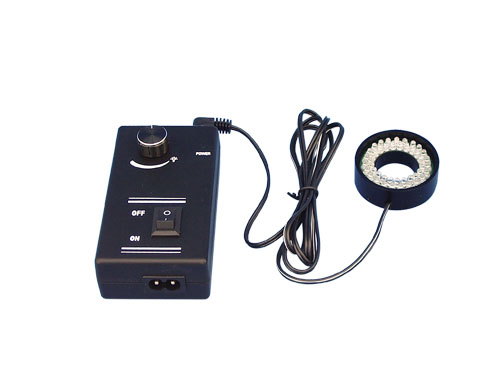

   Model:MLR25 adjusting LED directly ring illuminator
   Introduction
      Composed with adjusting electrical source and white light ring LED. Adopt the technology of control by current (matched size: Φ25mm), make sure LED long life.
  Use with zoom monocular video microscope systems, It is used for motherboards and printing boards' orientation, checking wafer parts, liquid crystals' emendation, checking plastic containers, labels, pins, integrate circuit lettering and similar purpose.

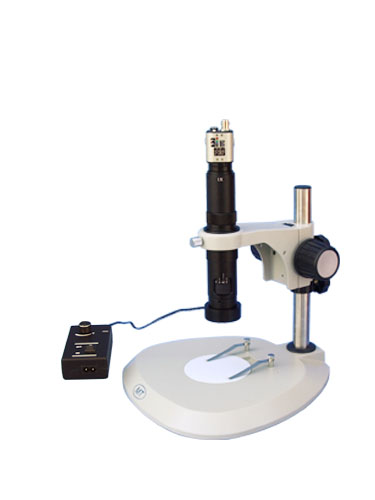

MLR25 exemplify

MLR25

MZDH0850+SD1-D+MLR25




   Model:MLC3000 adjusting high lighteness LED illuminator

   Introduction:
    Composed with adjusting electrical source and high lighteness LED. Use in MZDH zoom monocular video microscope systems coaxial illumination (matched size: Φ9mm, the power is 3W), especially fit forLCD manufacture and test.

MLC3000 exemplify

MLC3000

MZDH0670C+SD1-D+MLC3000





   Model:MLS46ER(RED) LED illuminator

   Introduction:
    Composed with adjusting electrical source and MLS46R LED. Use in MZDH zoom monocular video microscope systems (the connection matched size: Φ25m).

MLS46ER exemplify

MLS46ER(RED)

MZDH0850+SD1-D+MLS46ER
