PRODUCT

MTDM Popular Series

1. Working distance is 80mm:

Model

Objective

WD (mm)

Total Mag.

FOV(mm)

NA

DOF(mm)

Resolution(μm)

Distortion

1/3"、9"

1/3"、17"

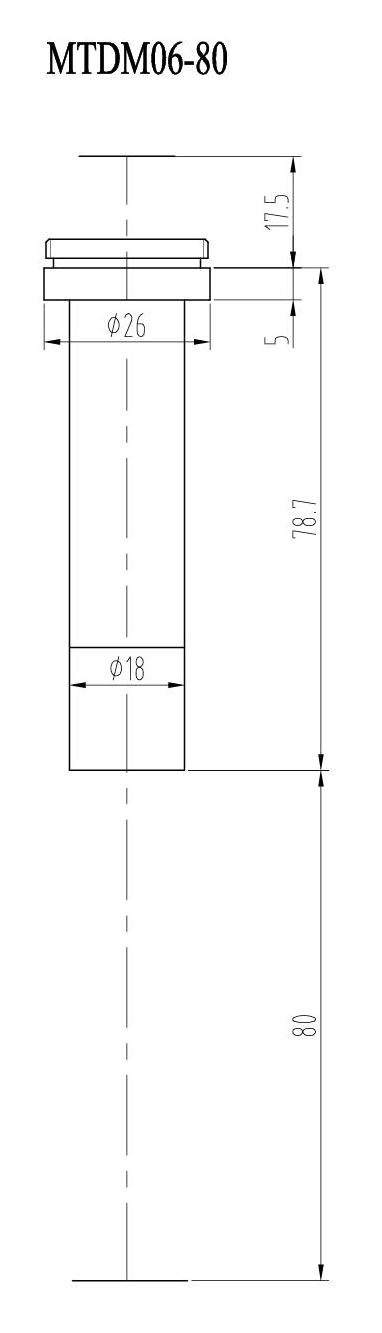

MTDM06-80

0.6X

80

22.9X

43.2X

8X6

0.04

1.67

8.4

0.08%

MTDM06C-80

0.6X

80

22.9X

43.2X

8X6

0.04

1.67

8.4

0.08%

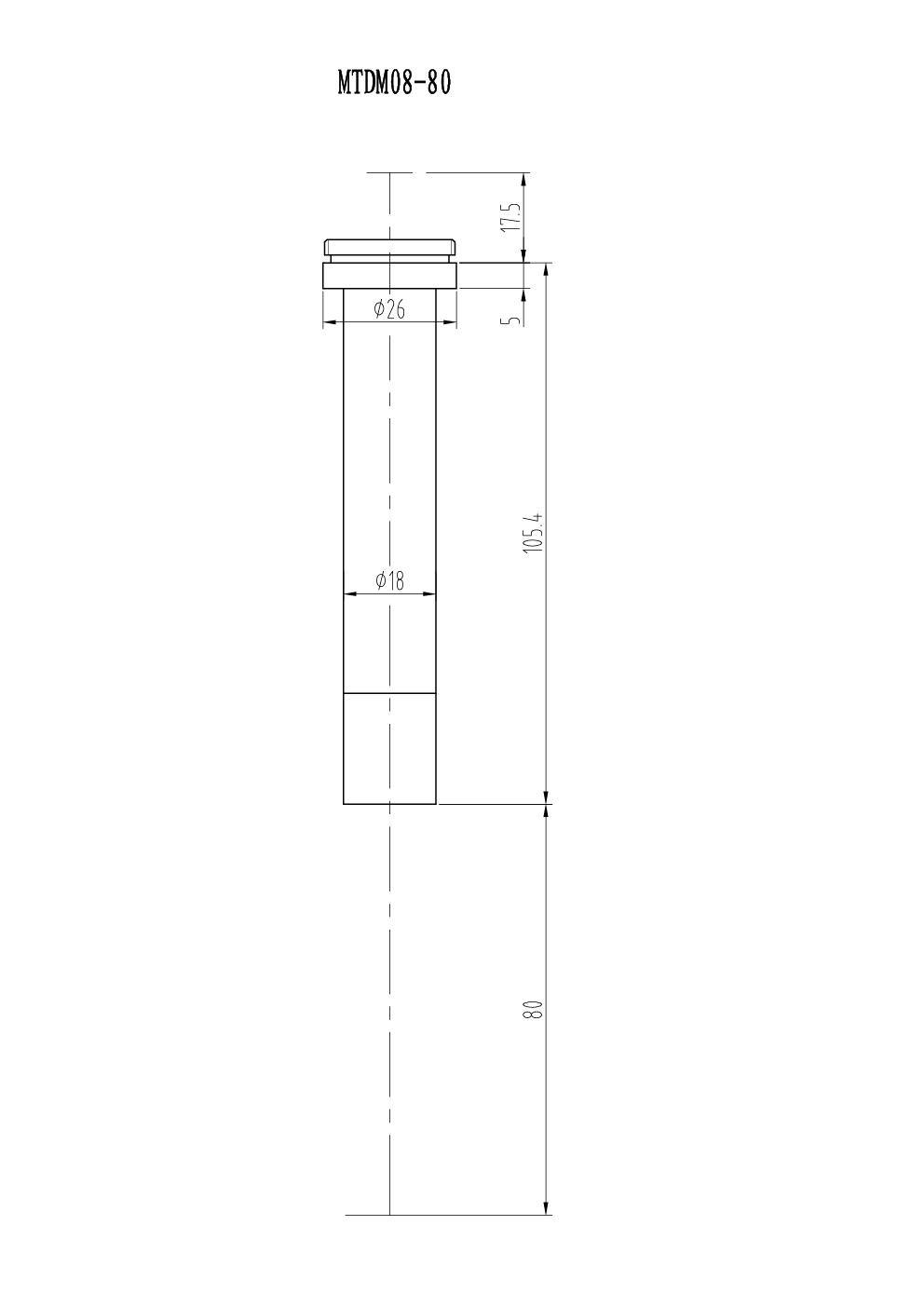

MTDM08-80

0.8X

80

30.5X

57.6X

6X4.5

0.04

1.25

8.4

0.1%

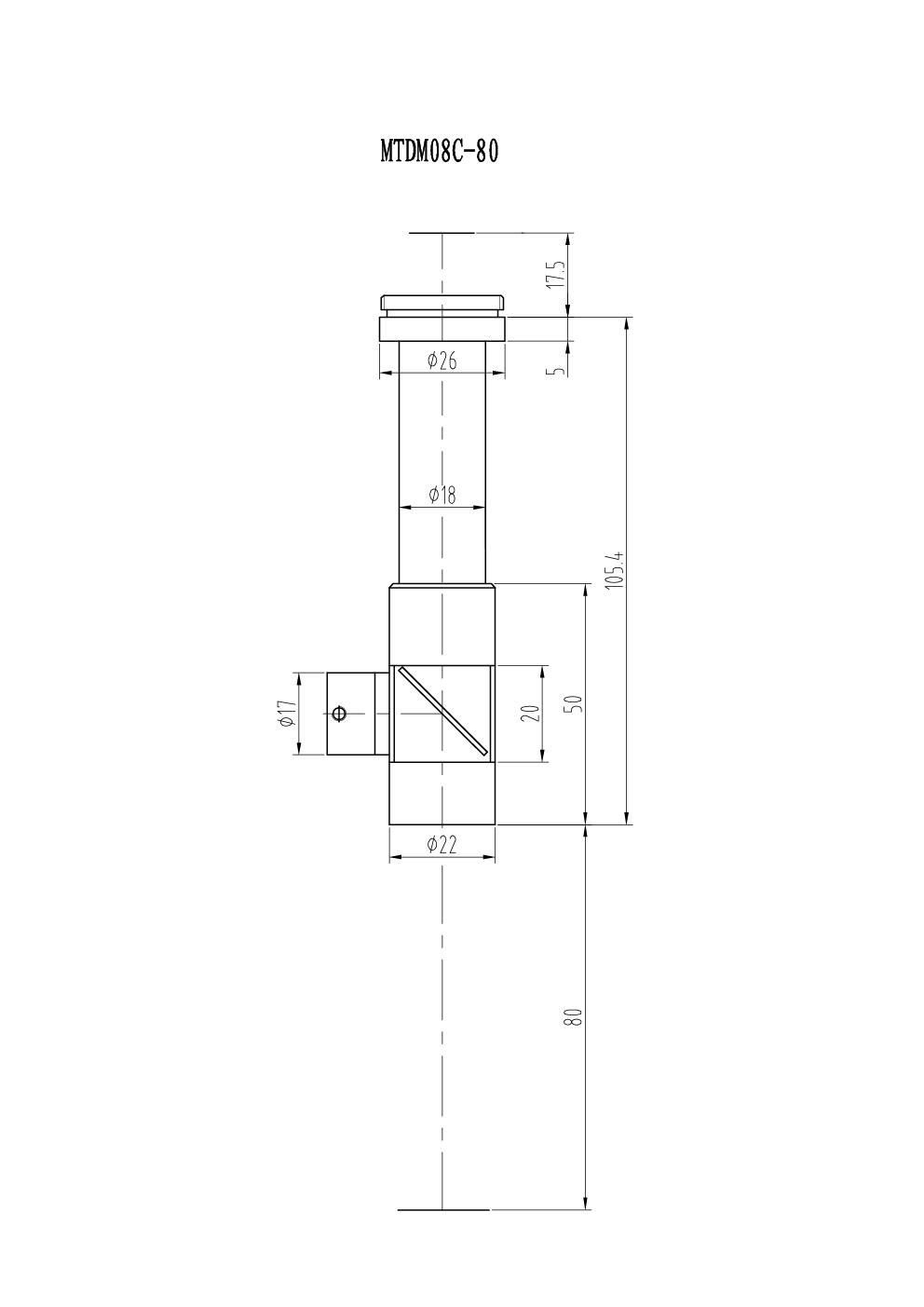

MTDM08C-80

0.8X

80

30.5X

57.6X

6X4.5

0.04

1.25

8.4

0.1%

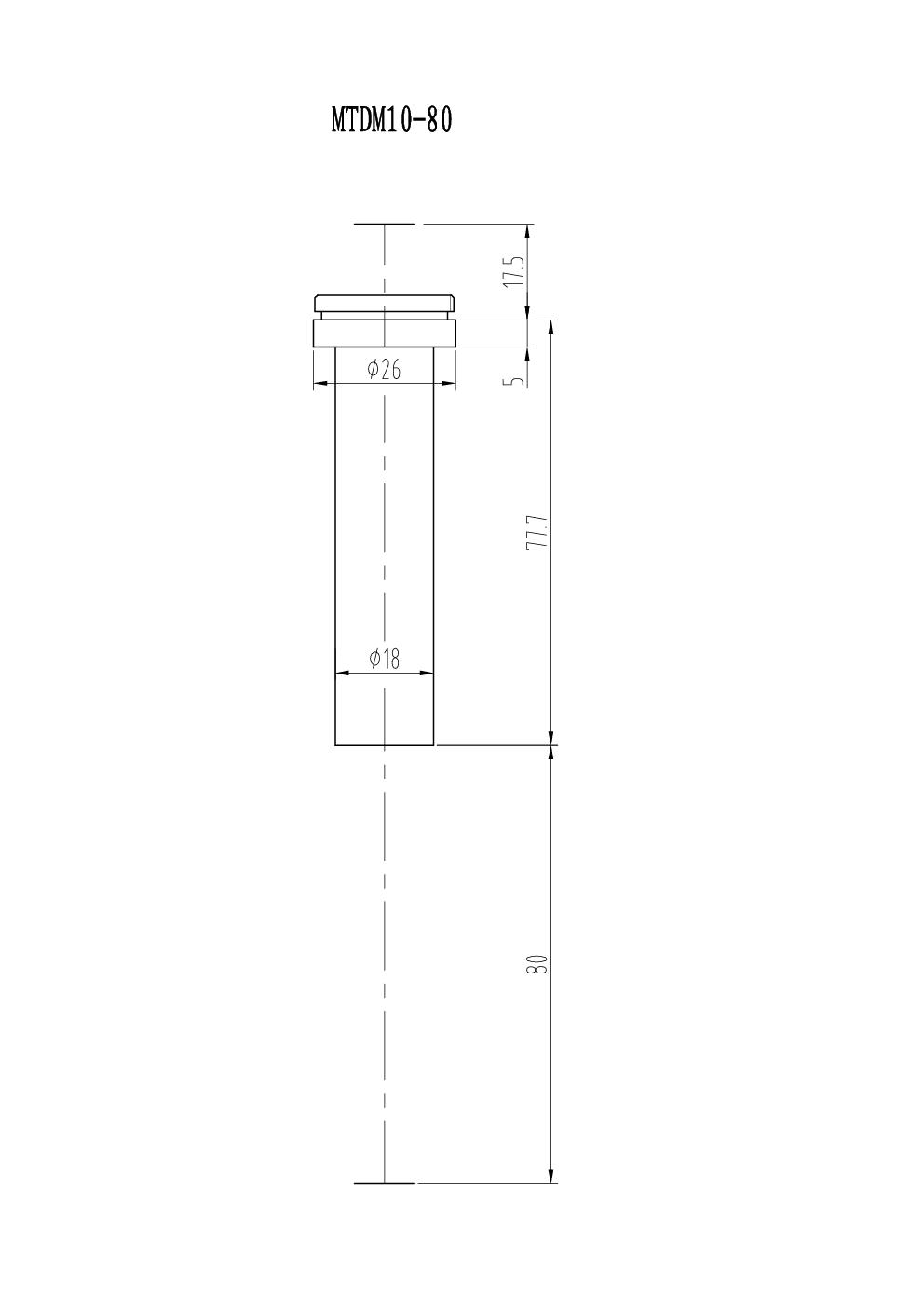

MTDM10-80

1.0X

80

38.1X

72.0X

4.8X3.6

0.05

0.8

6.7

0.3%

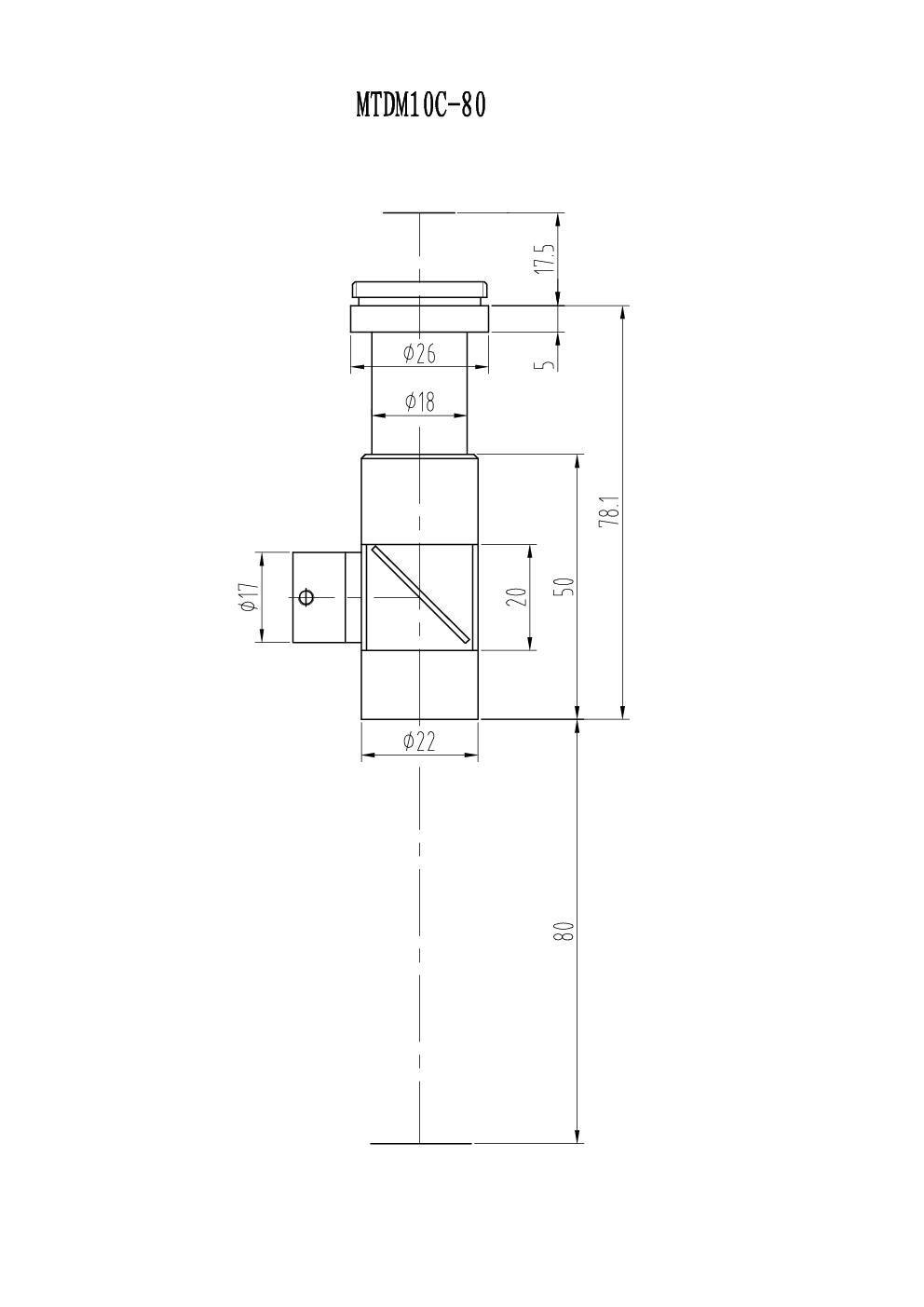

MTDM10C-80

1.0X

80

38.1X

72.0X

4.8X3.6

0.05

0.8

6.7

0.3%

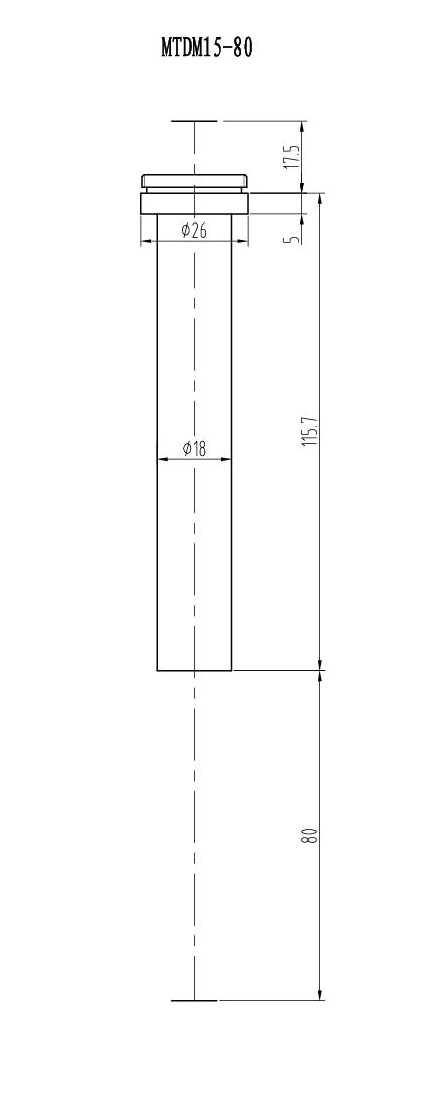

MTDM15-80

1.5X

80

57.2X

108.0X

3.2X2.4

0.05

0.8

6.7

0.3%

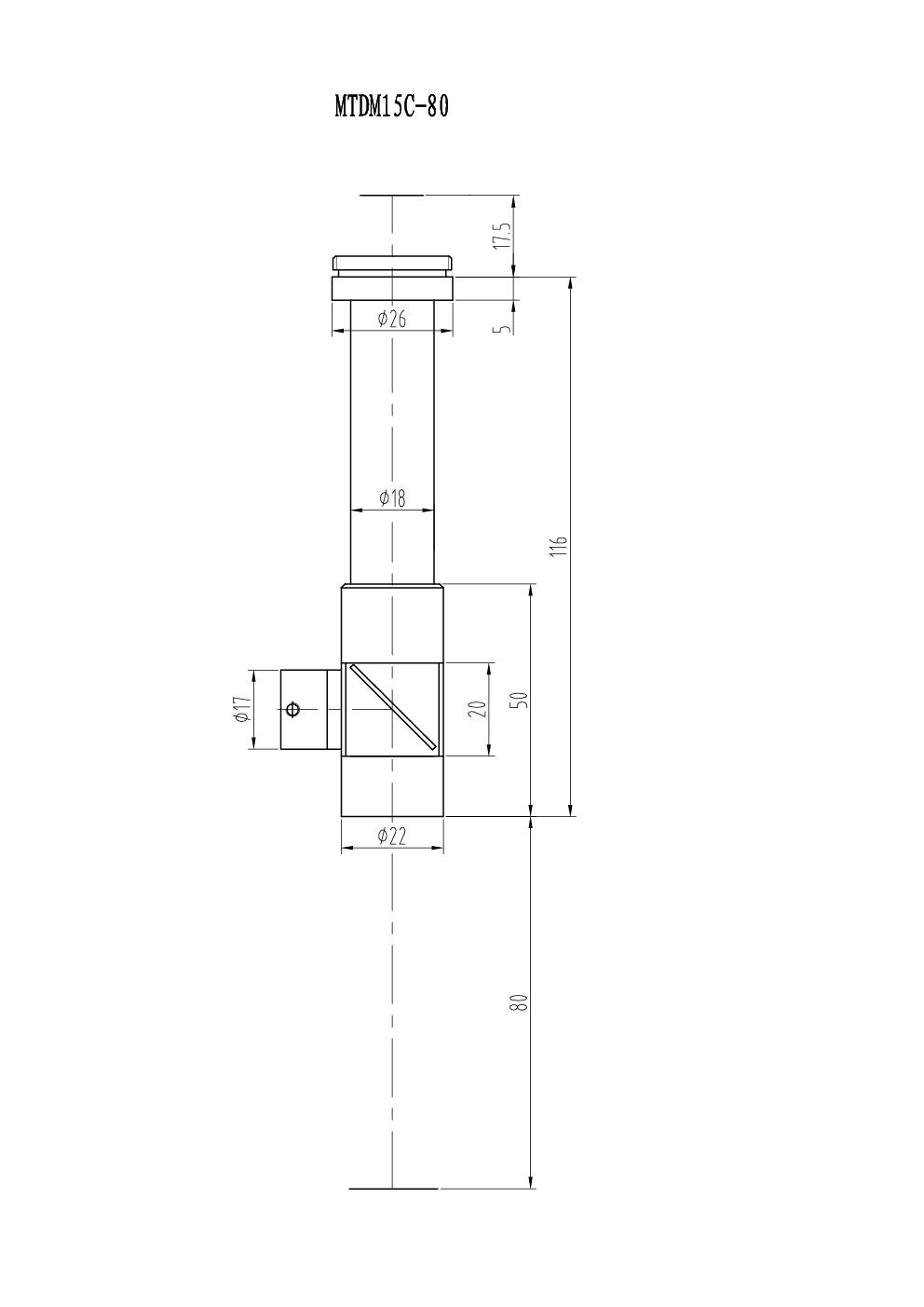

MTDM15C-80

1.5X

80

57.2X

108.0X

3.2X2.4

0.05

0.8

6.7

0.3%

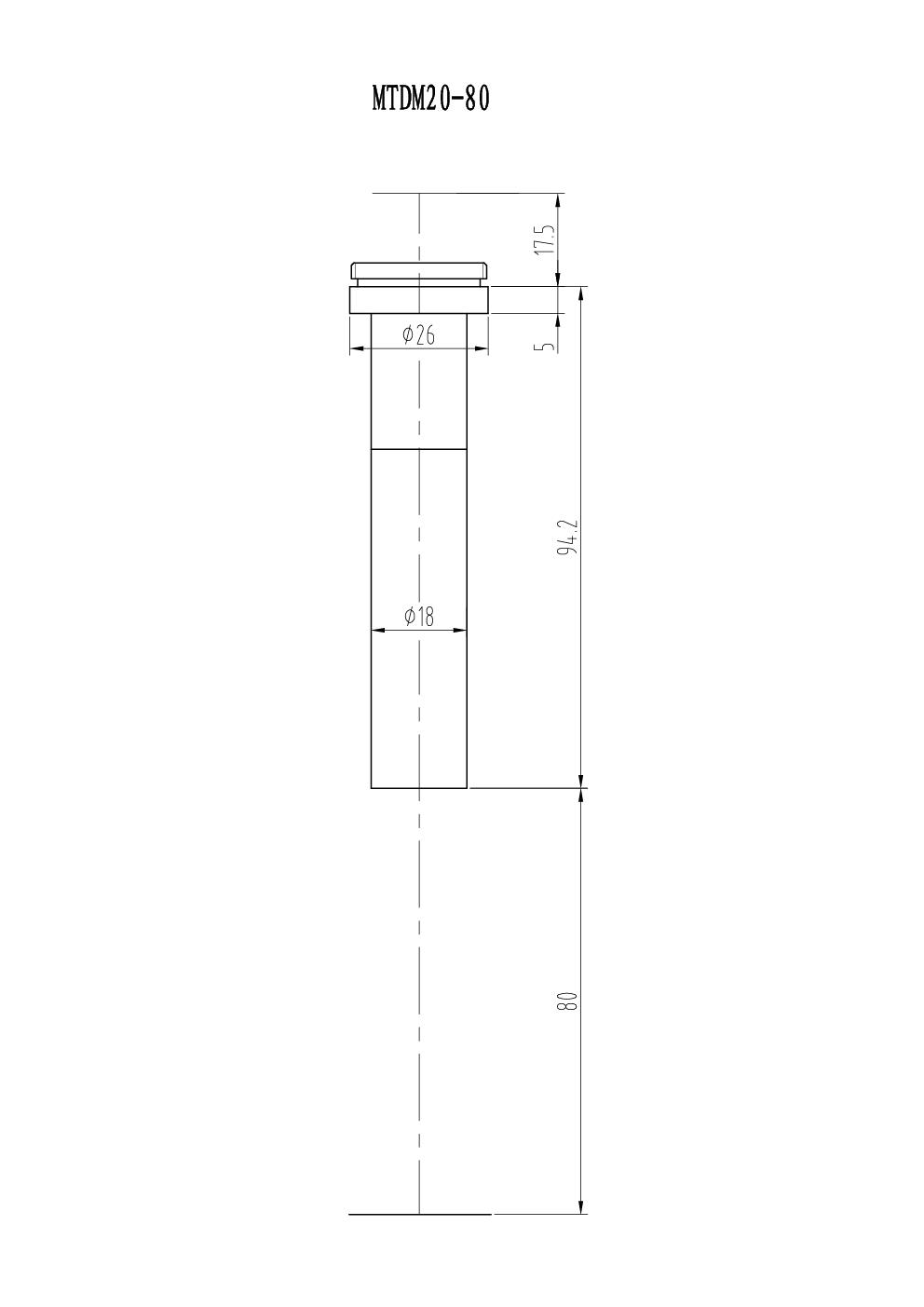

MTDM20-80

2.0X

80

76.2X

143.9X

2.4X1.8

0.05

0.4

6.7

0.2%

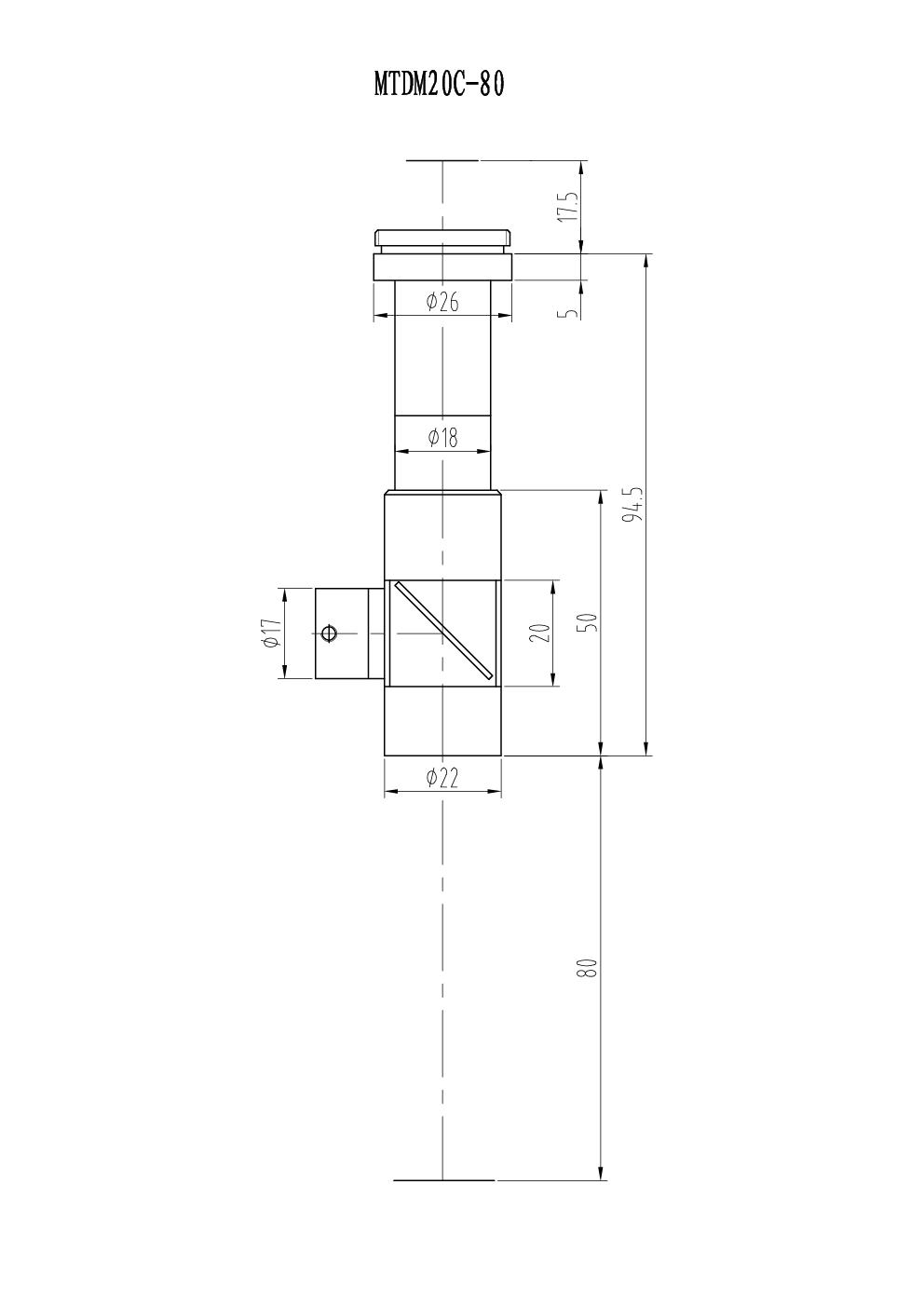

MTDM20C-80

2.0X

80

76.2X

143.9X

2.4X1.8

0.05

0.4

6.7

0.2%

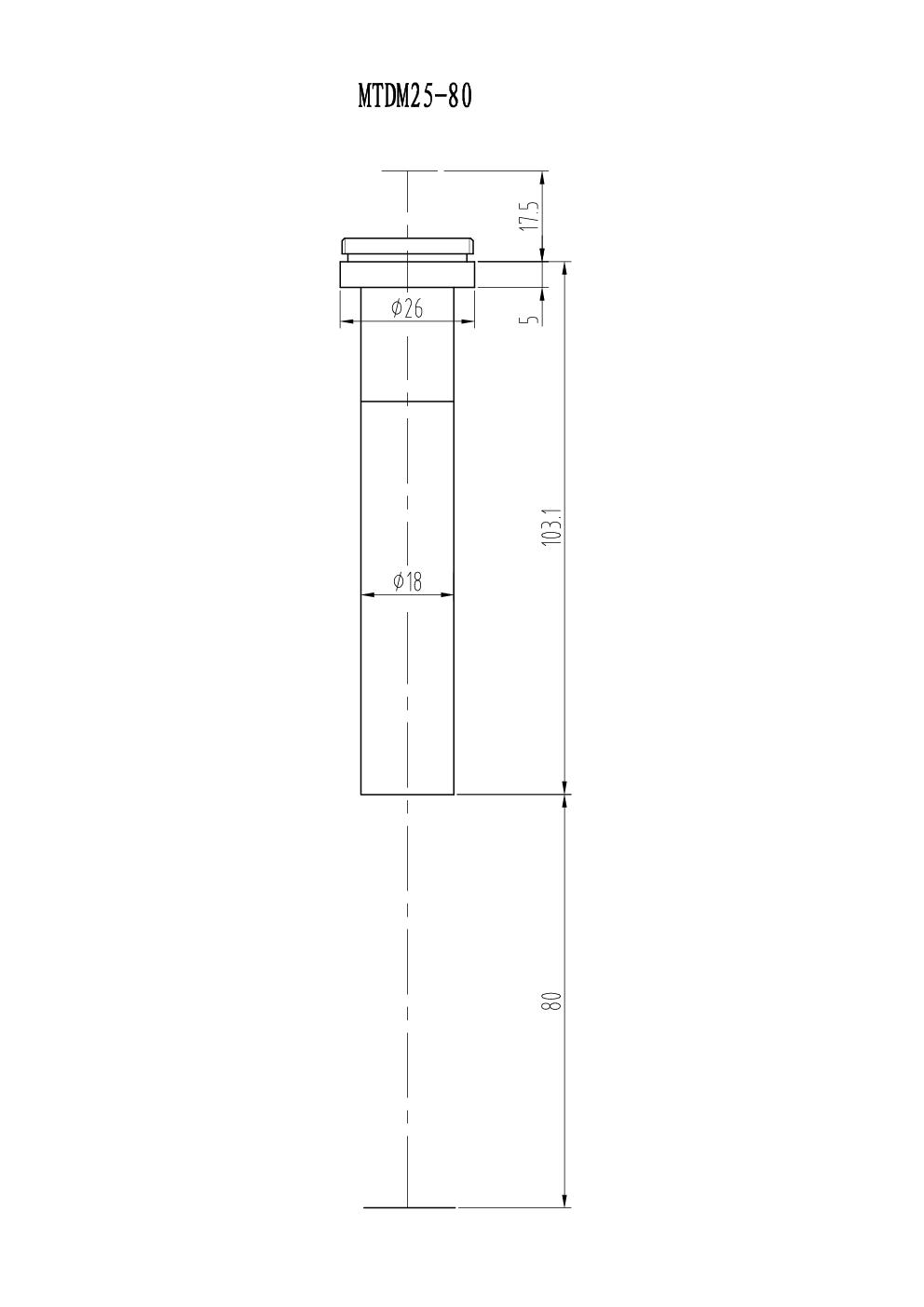

MTDM25-80

2.5X

80

95.3X

179.9X

1.9X1.4

0.05

0.32

6.7

0.2%

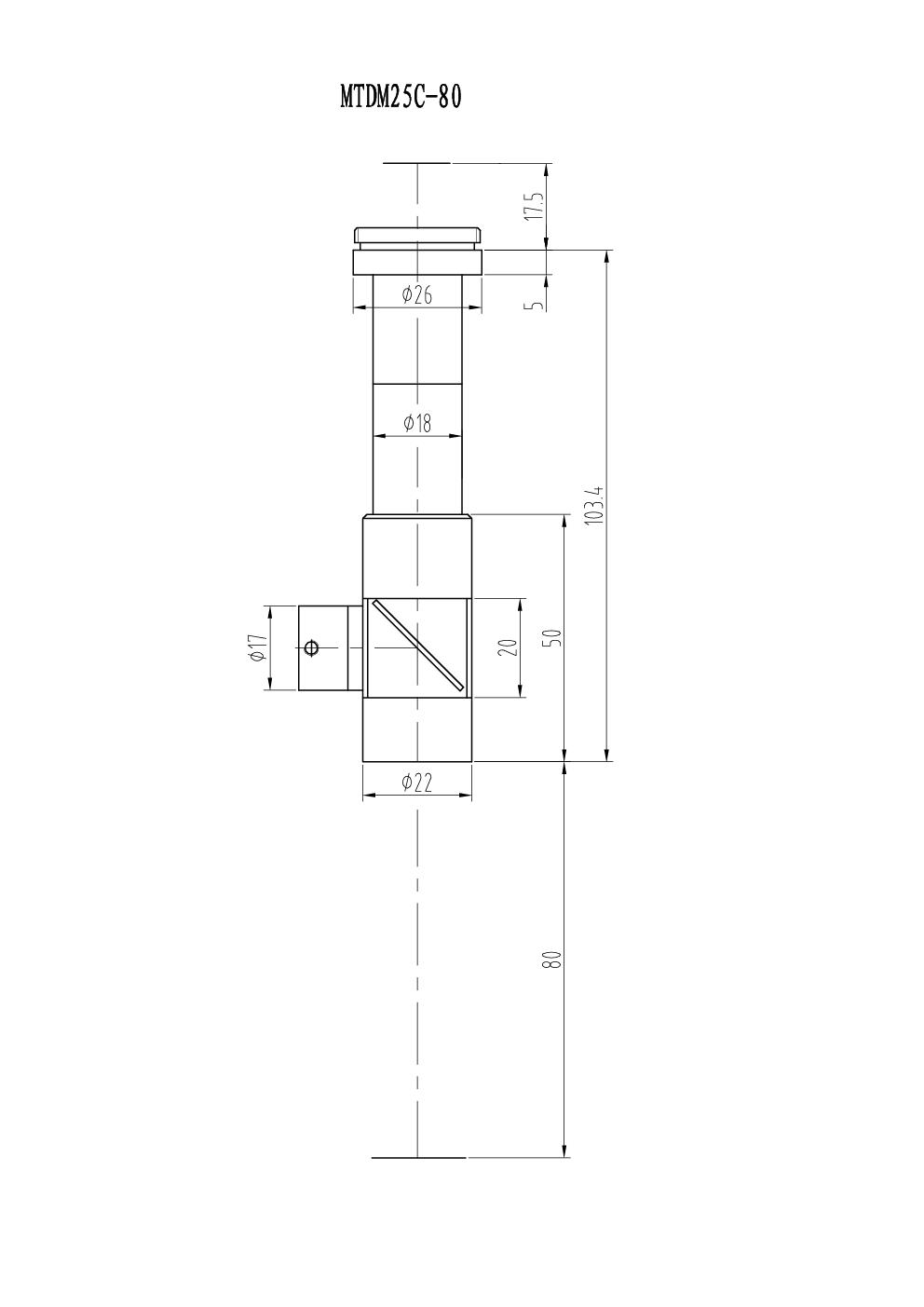

MTDM25C-80

2.5X

80

95.3X

179.9X

1.9X1.4

0.05

0.32

6.7

0.2%

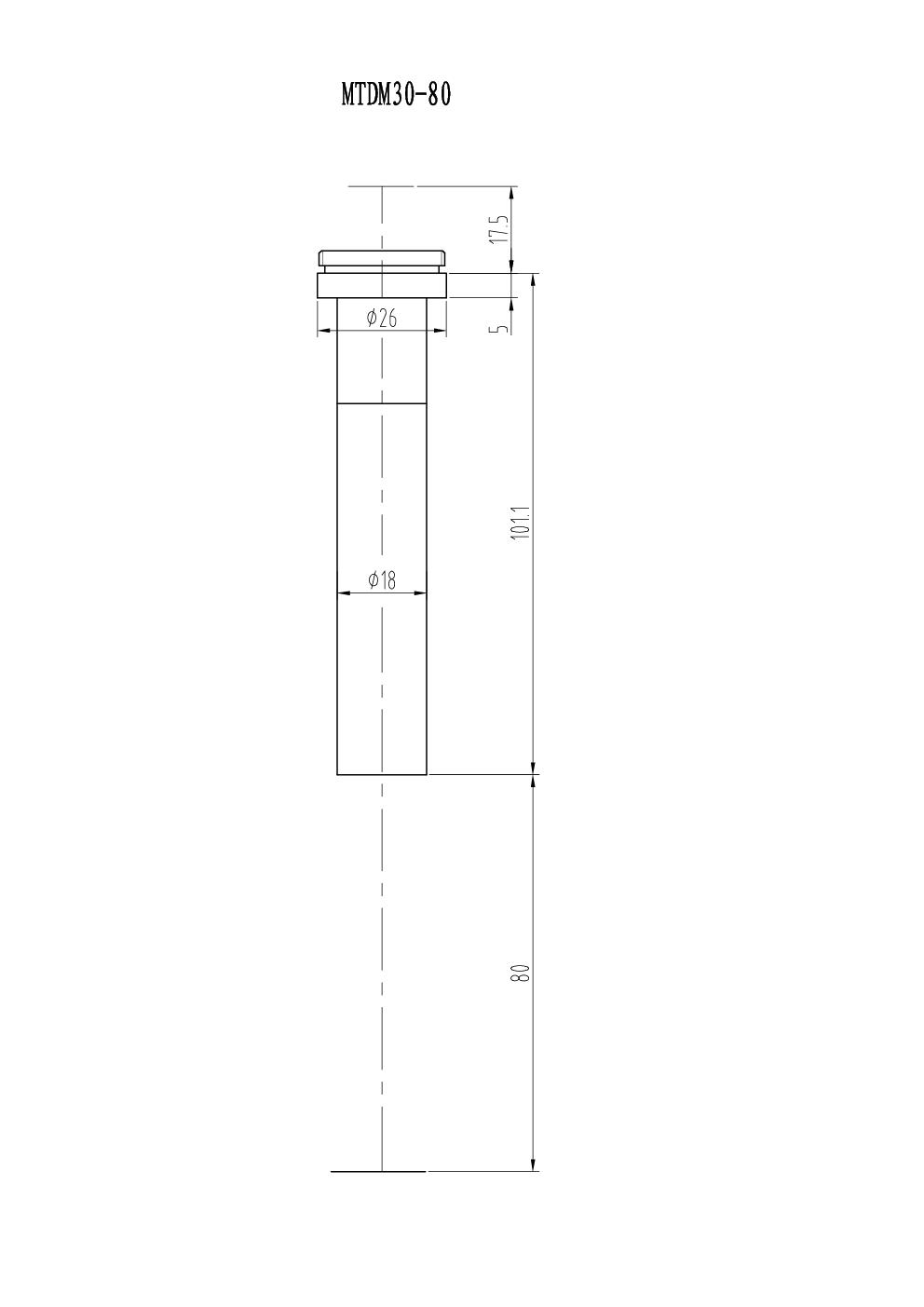

MTDM30-80

3.0X

80

114.3X

215.9X

1.6X1.2

0.055

0.24

6.1

0.3%

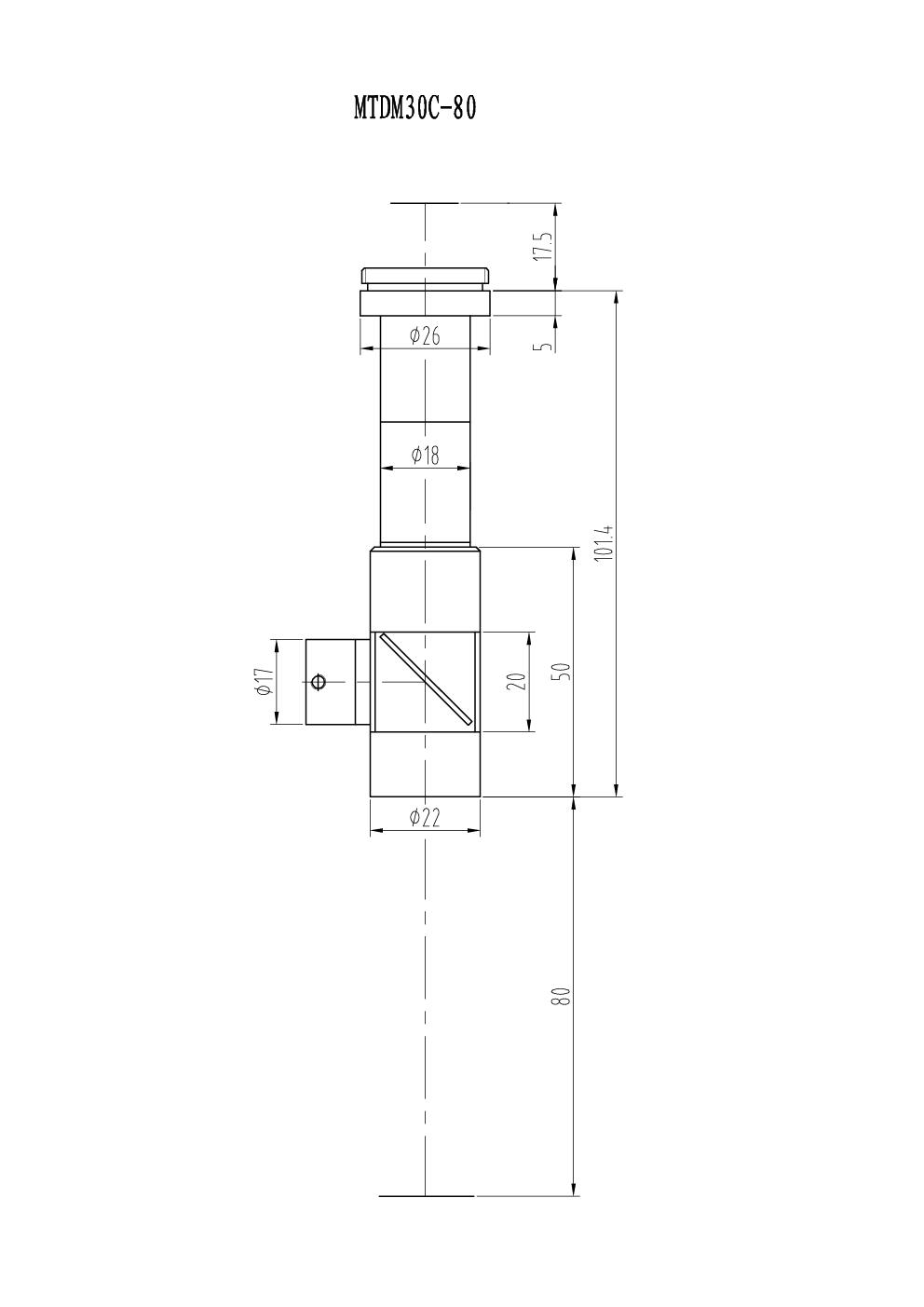

MTDM30C-80

3.0X

80

114.3X

215.9X

1.6X1.2

0.055

0.24

6.1

0.3%

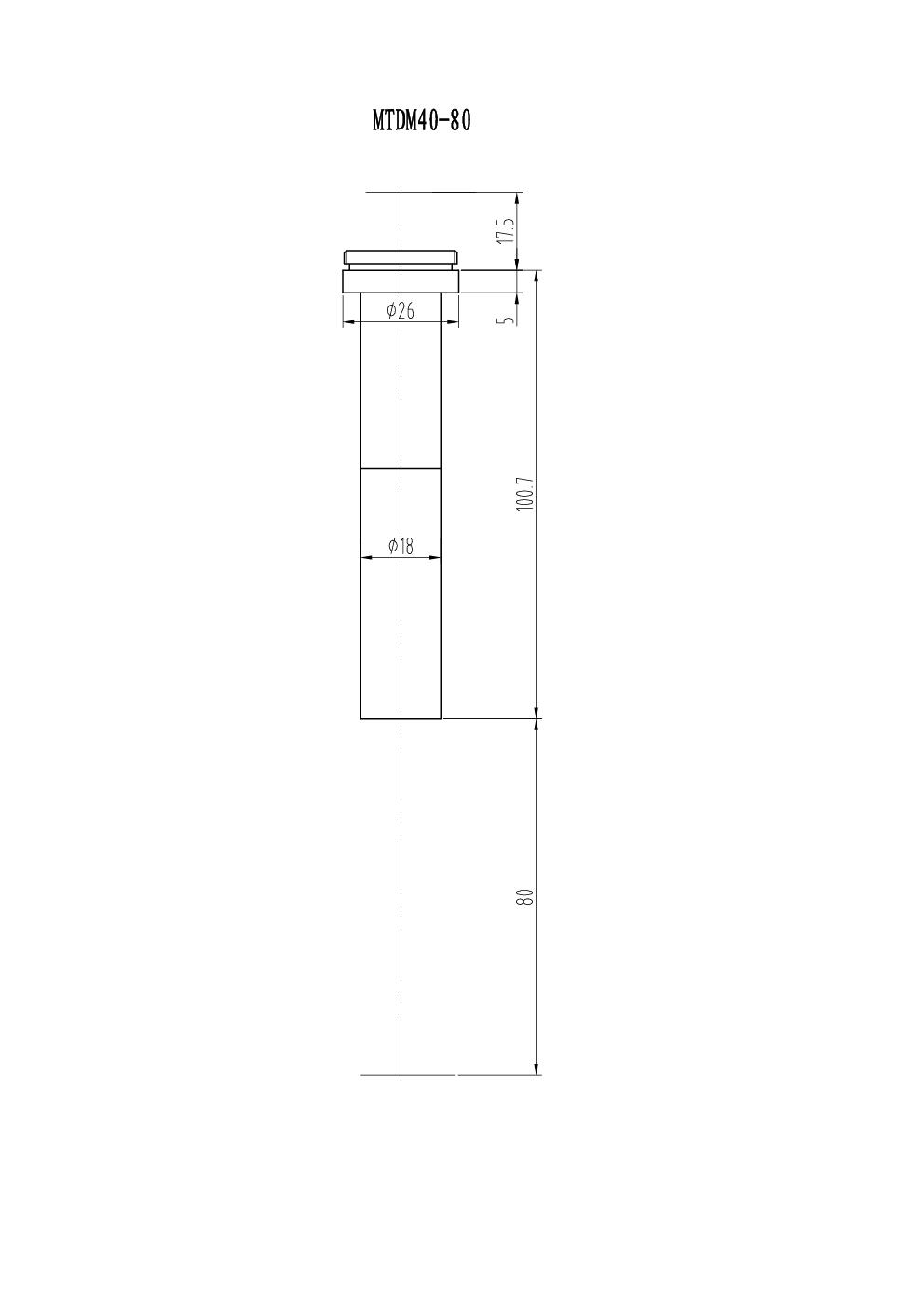

MTDM40-80

4.0X

80

152.4X

287.9X

1.2X0.9

0.06

0.17

5.6

0.4%

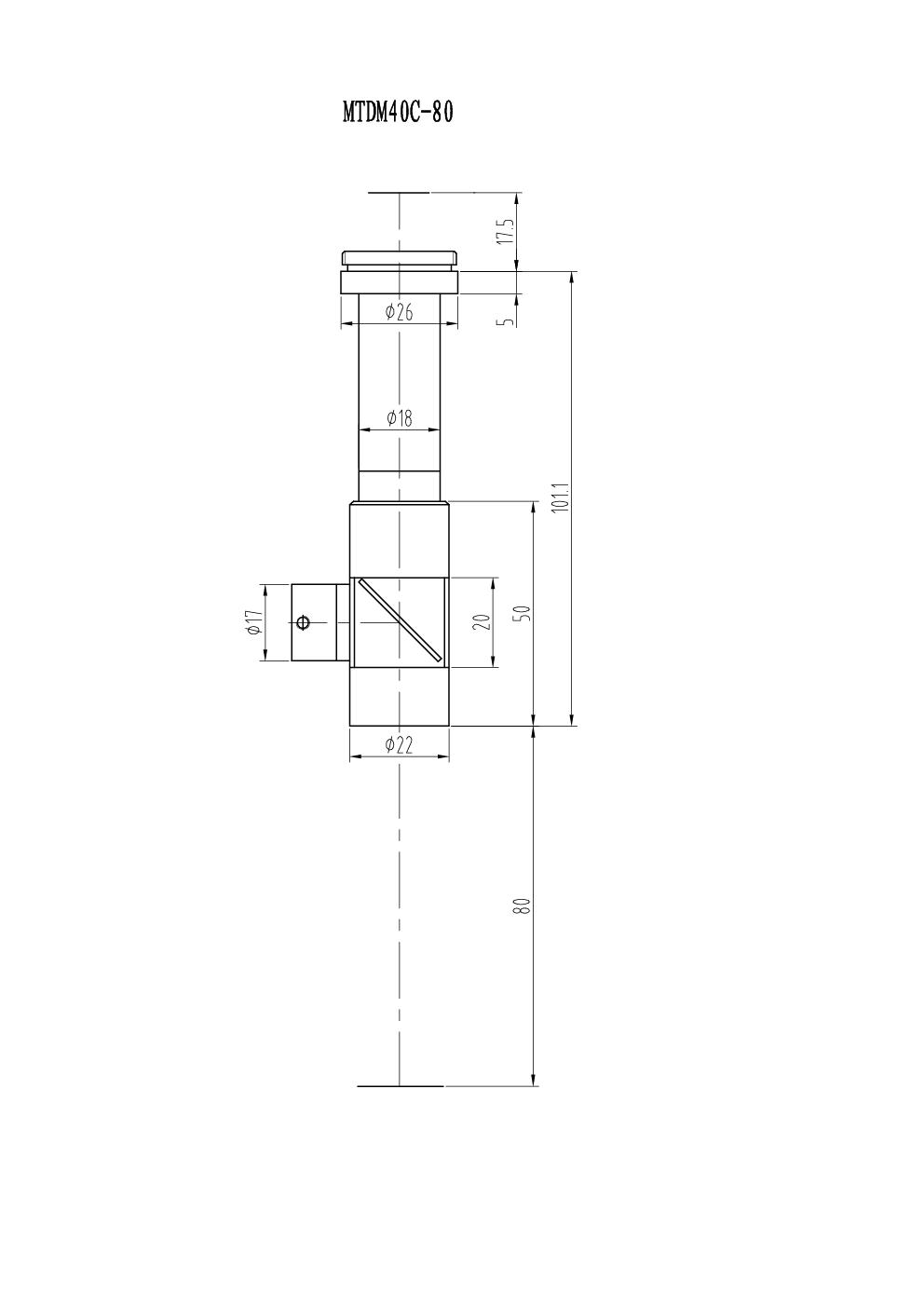

MTDM40C-80

4.0X

80

152.4X

287.9X

1.2X0.9

0.06

0.17

5.6

0.4%


2. Working distance is 100mm:

Model

Objective

WD (mm)

Total Mag.

FOV(mm)

NA

DOF(mm)

Resolution(μm)

Distortion

1/3"、9"

1/3"、17"

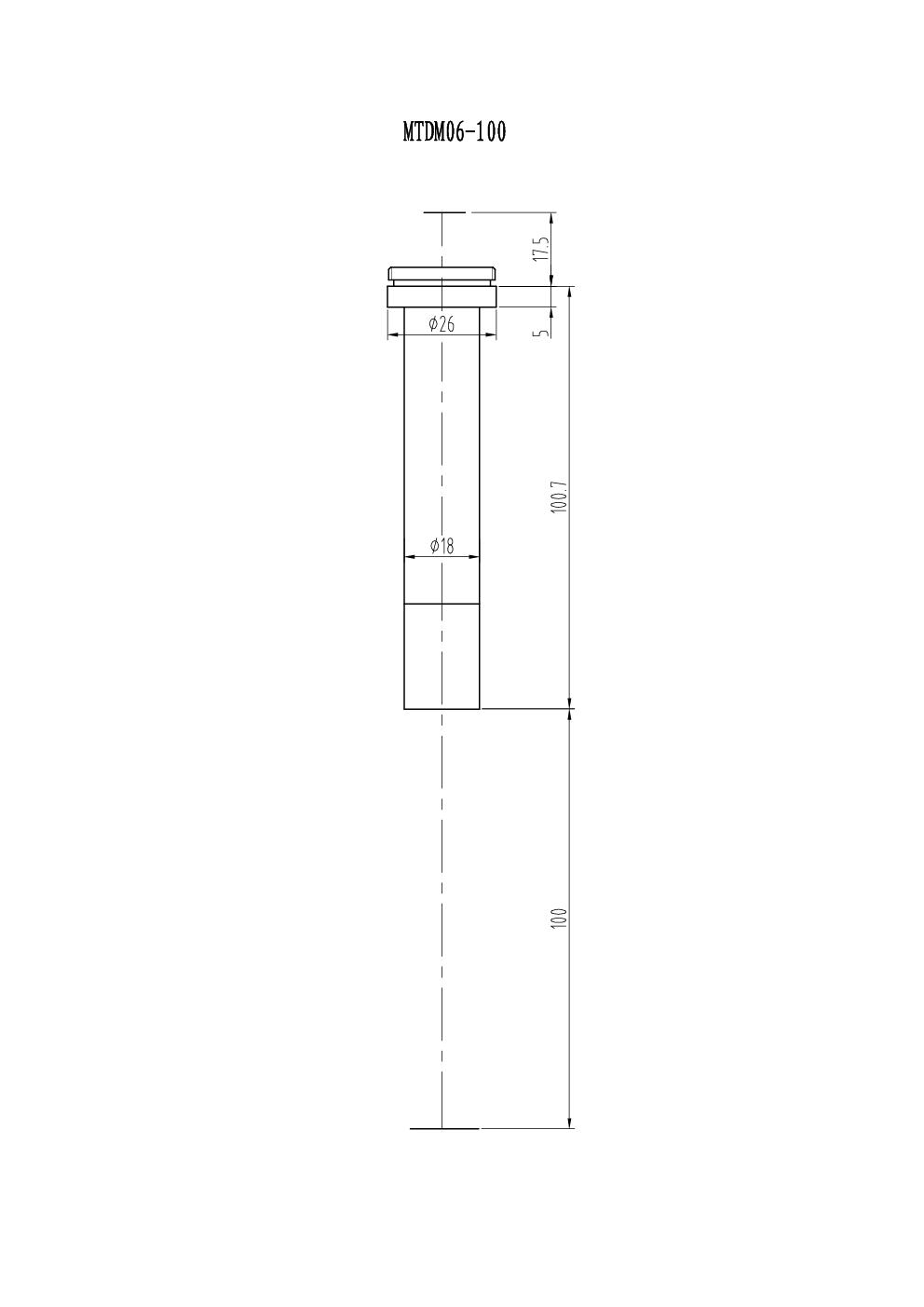

MTDM06-100

0.6X

100

22.9X

43.2X

8X6

0.04

1.67

8.4

0.03%

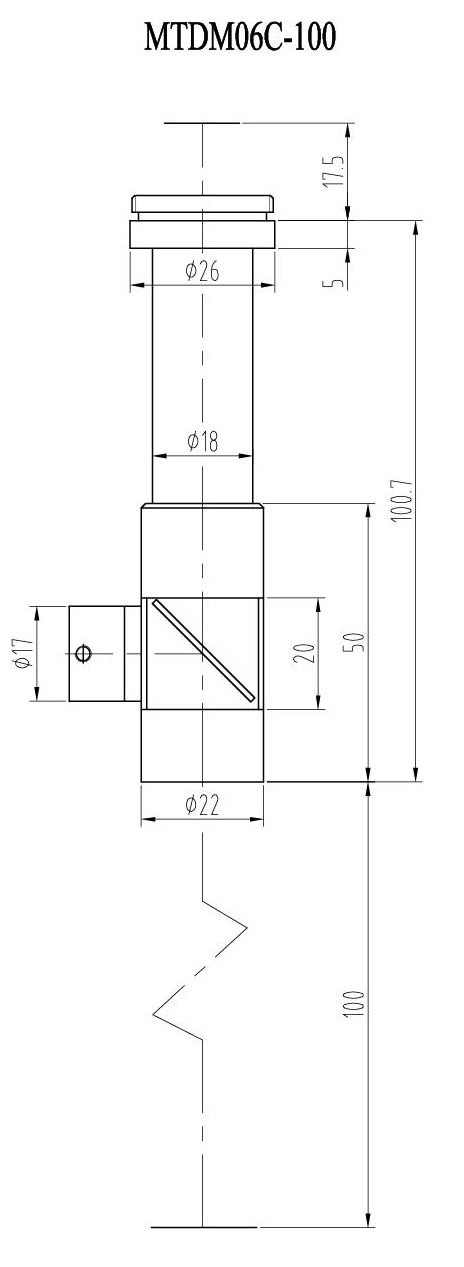

MTDM06C-100

0.6X

100

22.9X

43.2X

8X6

0.04

1.67

8.4

0.03%

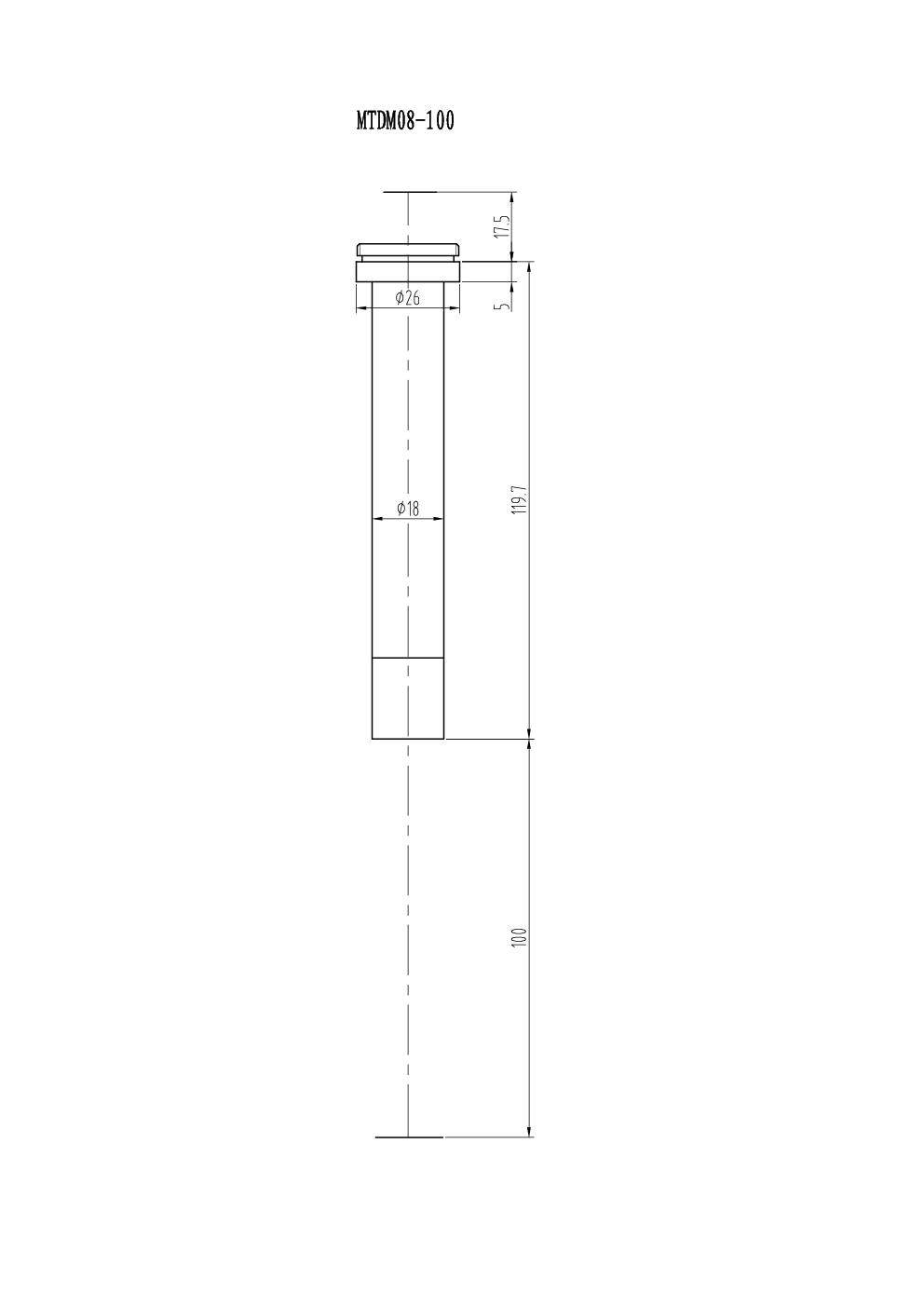

MTDM08-100

0.8X

100

30.5X

57.6X

6X4.5

0.04

1.25

8.4

0.01%

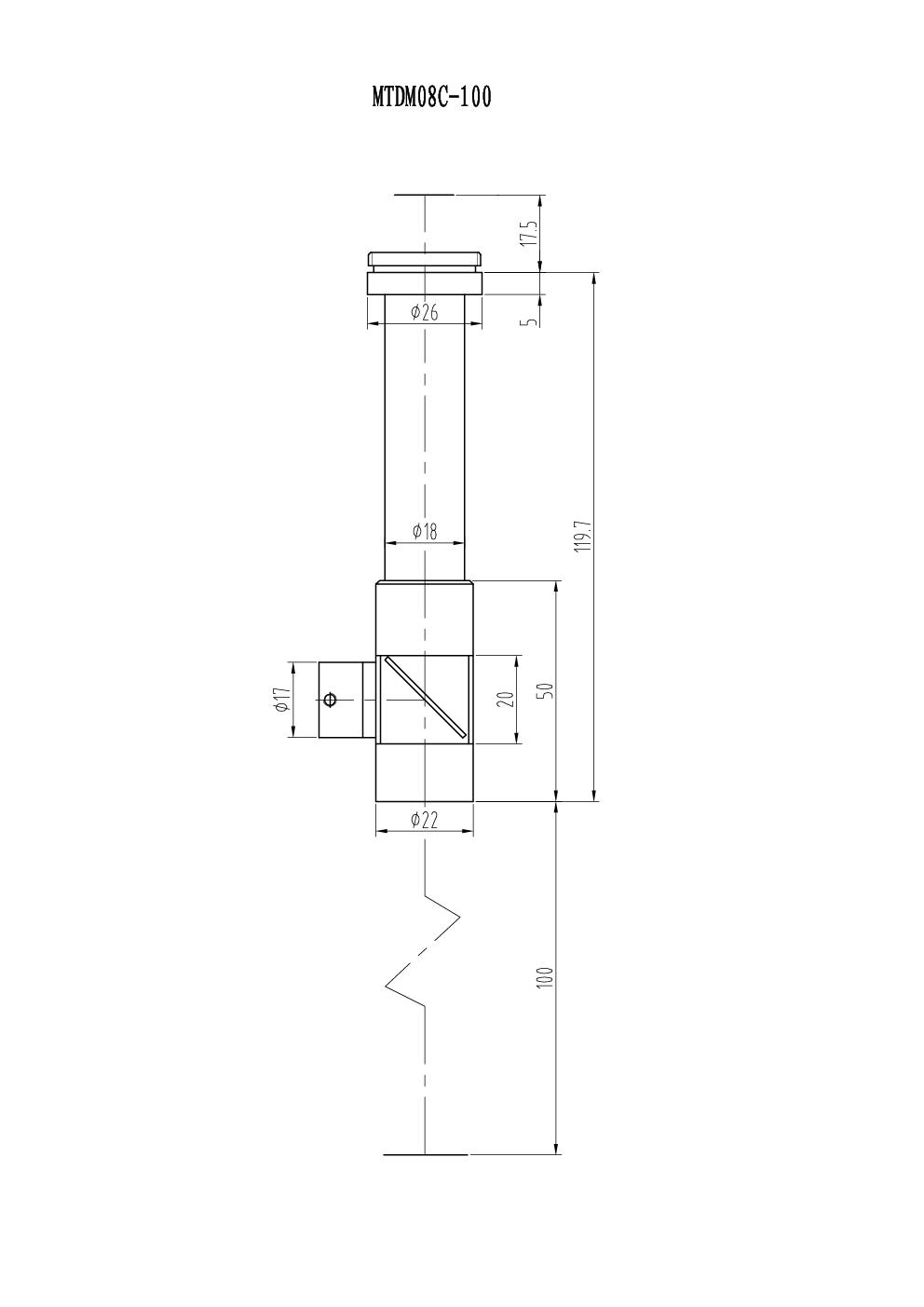

MTDM08C-100

0.8X

100

30.5X

57.6X

6X4.5

0.04

1.25

8.4

0.01%

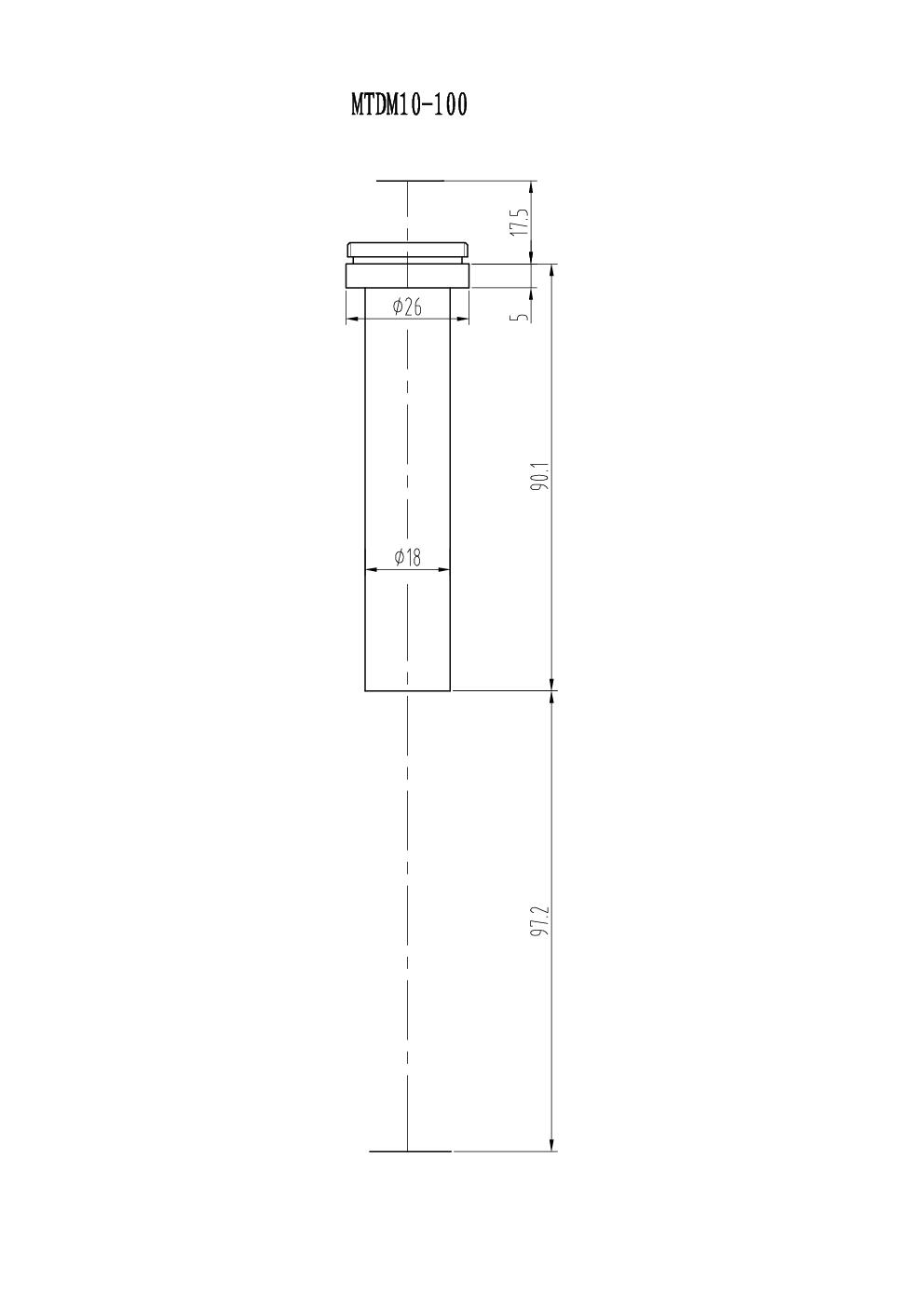

MTDM10-100

1.0X

100

38.1X

72.0X

4.8X3.6

0.045

0.89

7.5

0.18%

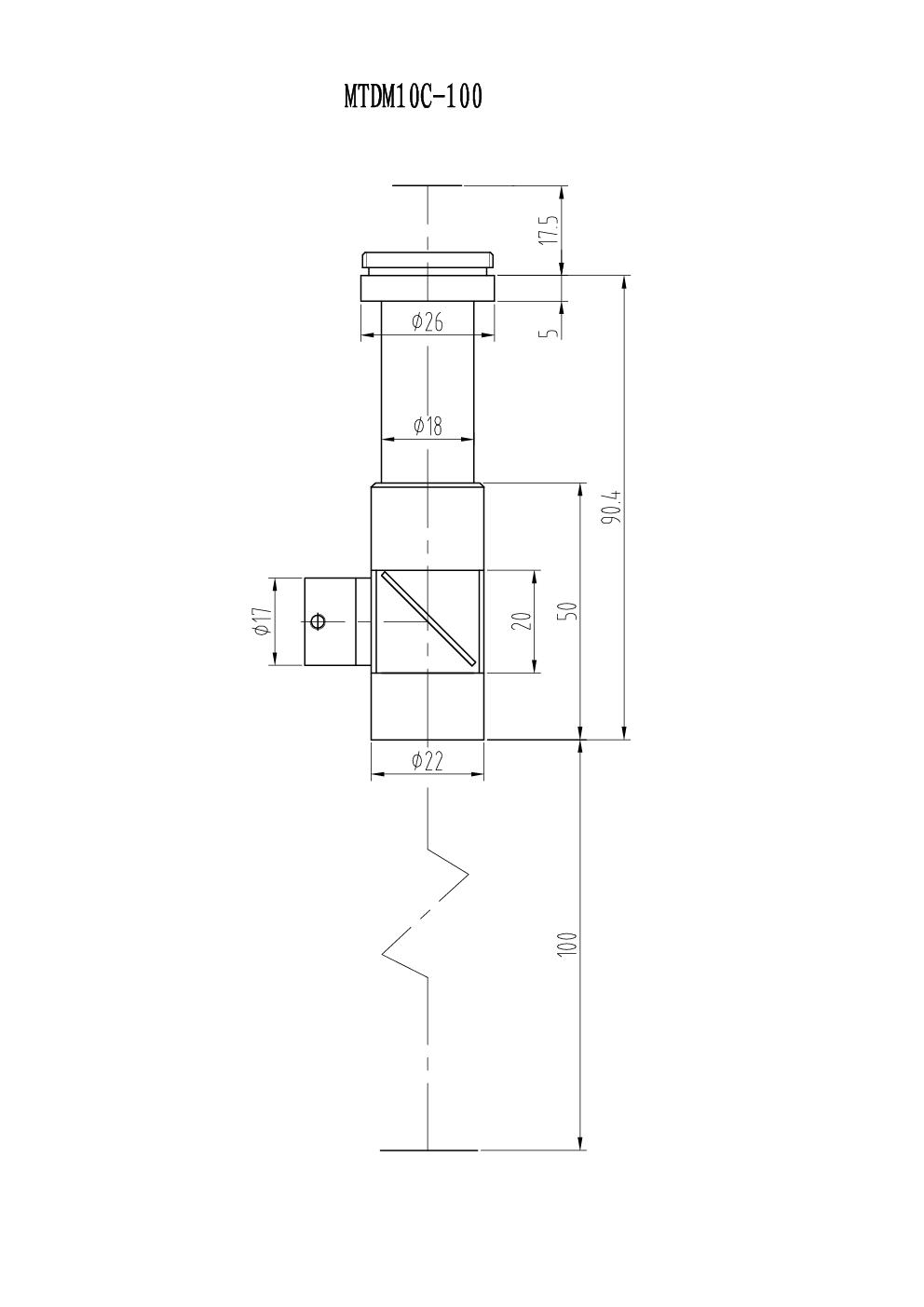

MTDM10C-100

1.0X

100

38.1X

72.0X

4.8X3.6

0.045

0.89

7.5

0.18%

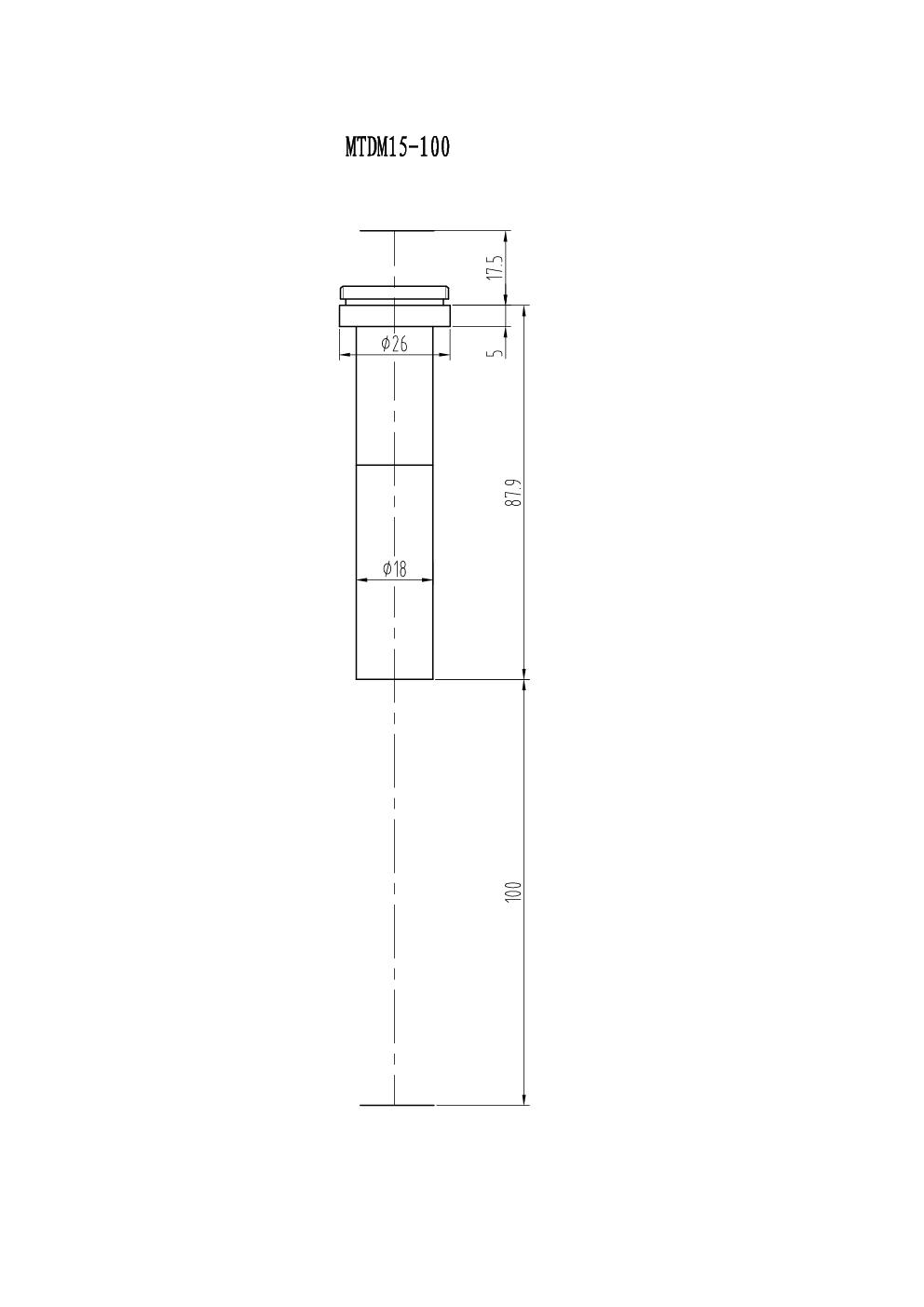

MTDM15-100

1.5X

100

57.2X

108.0X

3.2X2.4

0.045

0.59

7.5

0.25%

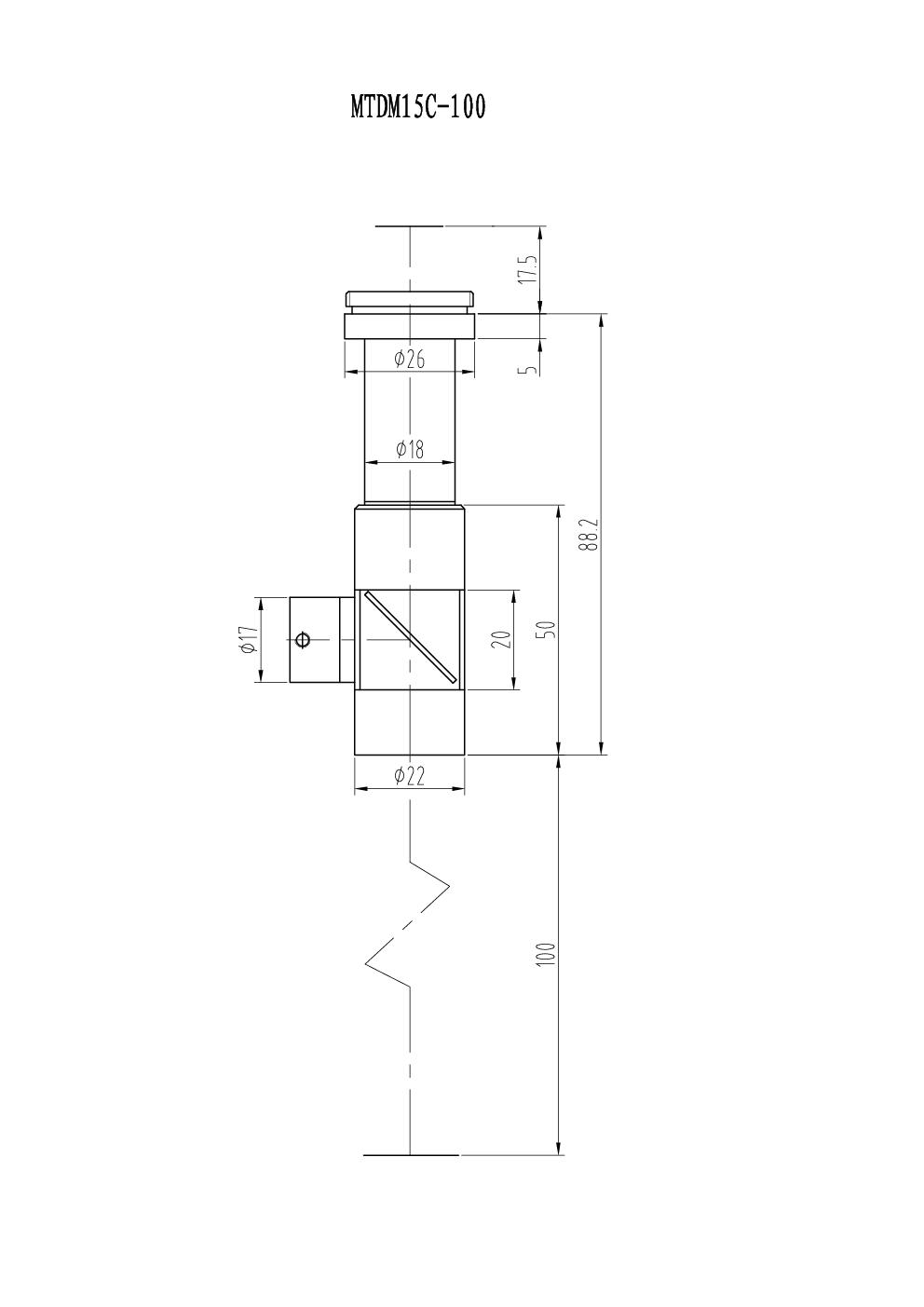

MTDM15C-100

1.5X

100

57.2X

108.0X

3.2X2.4

0.045

0.59

7.5

0.25%

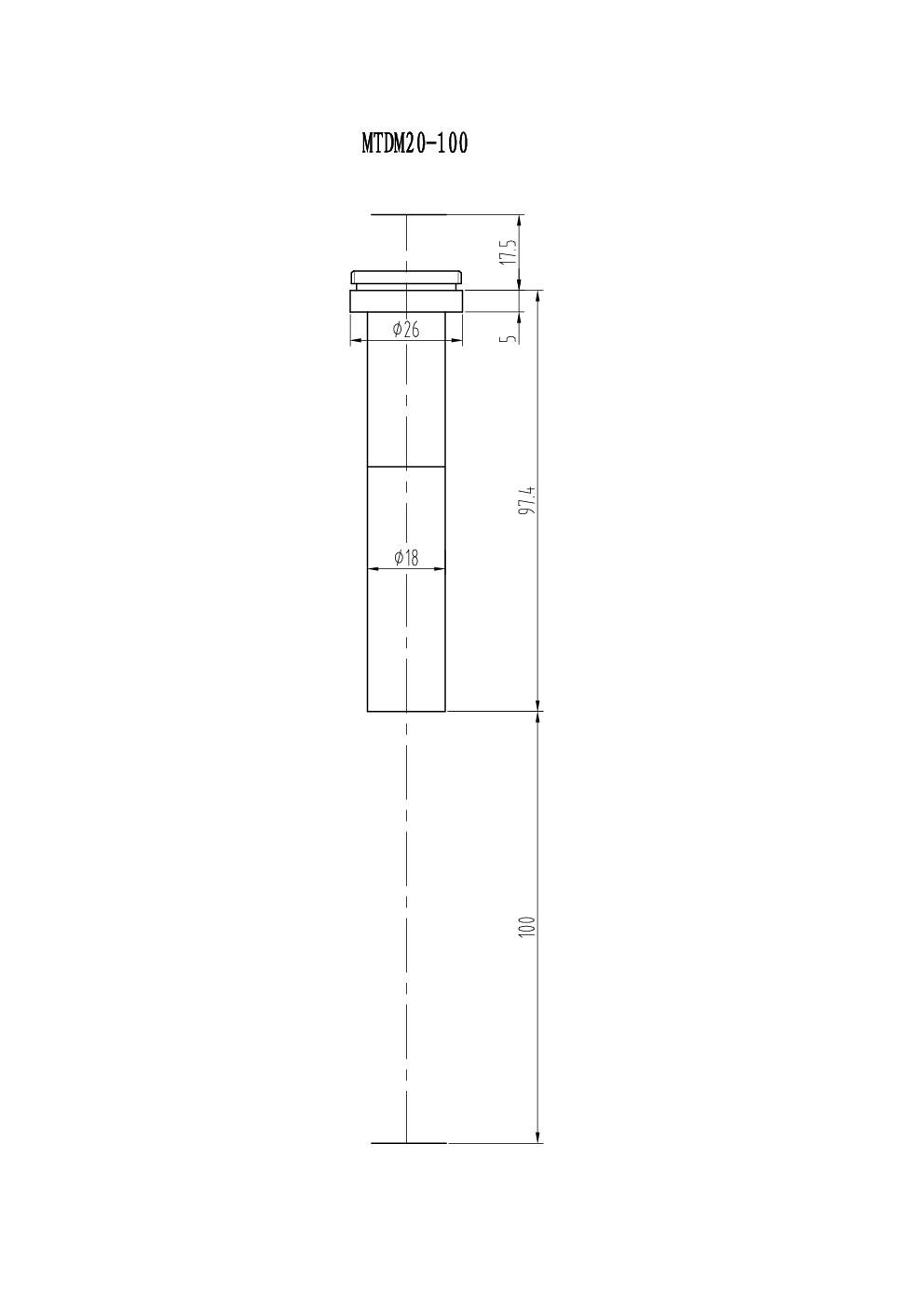

MTDM20-100

2.0X

100

76.2X

143.9X

2.4X1.8

0.045

0.44

7.5

0.24%

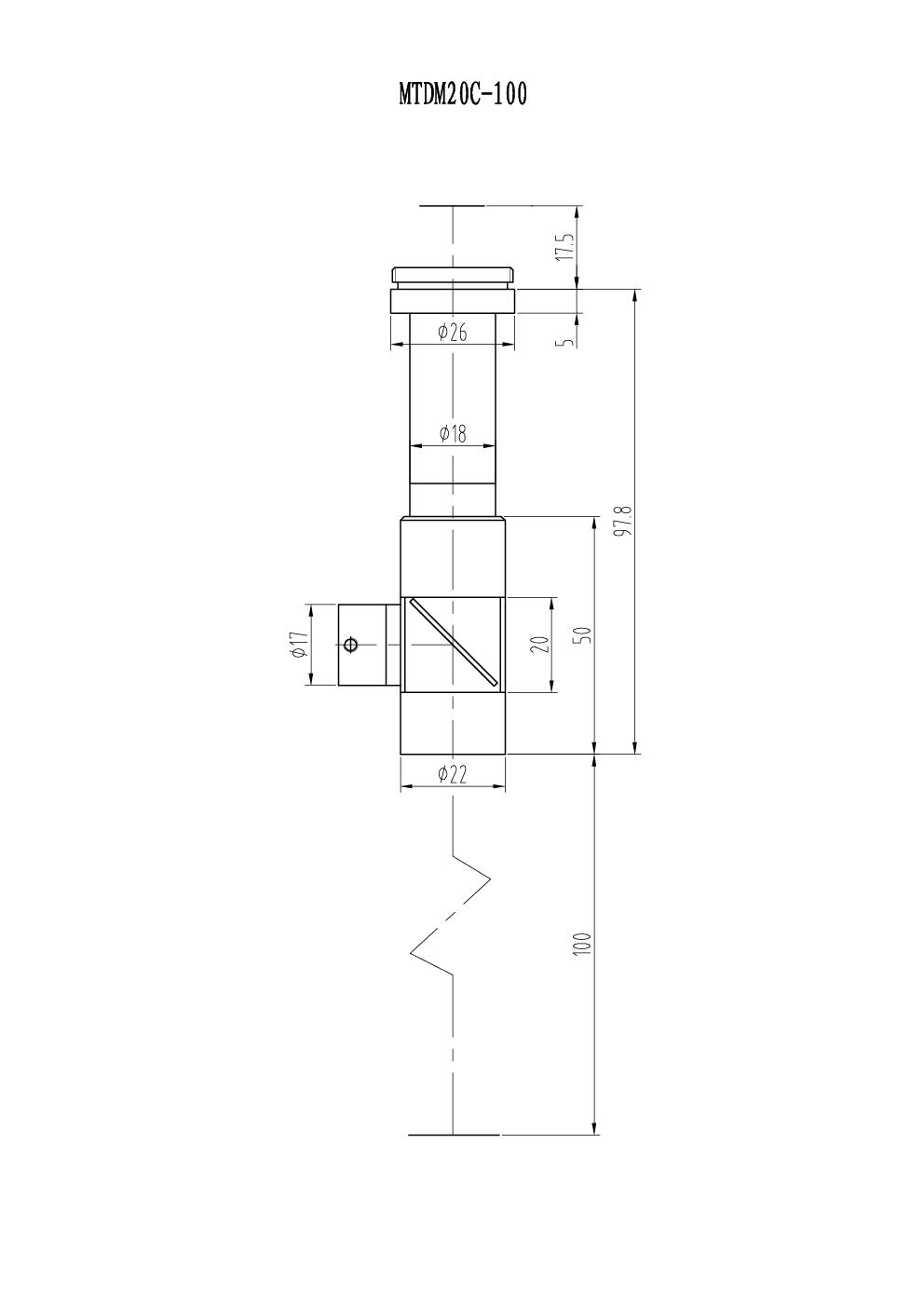

MTDM20C-100

2.0X

100

76.2X

143.9X

2.4X1.8

0.045

0.44

7.5

0.24%

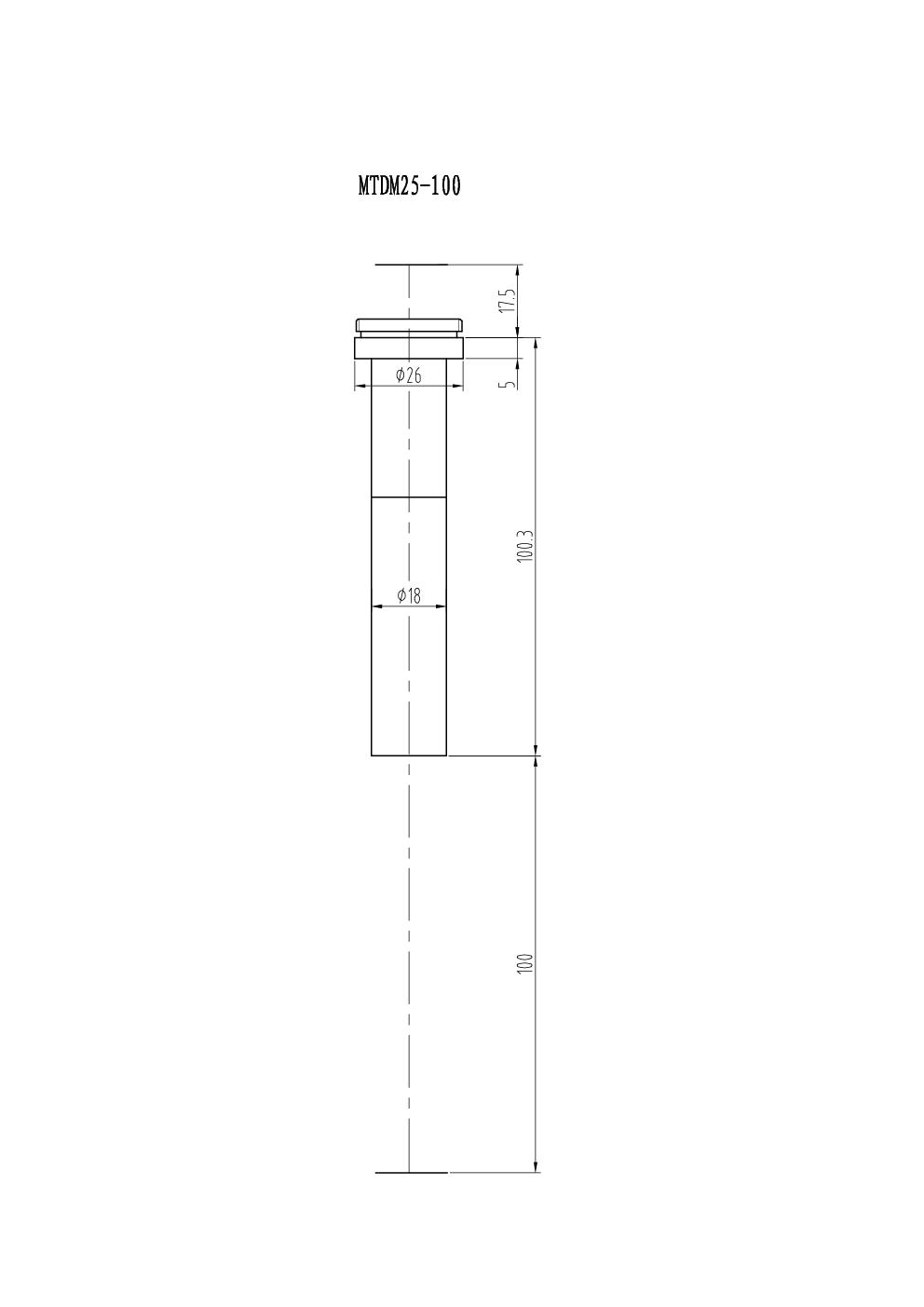

MTDM25-100

2.5X

100

95.3X

179.9X

1.9X1.4

0.05

0.32

6.7

0.26%

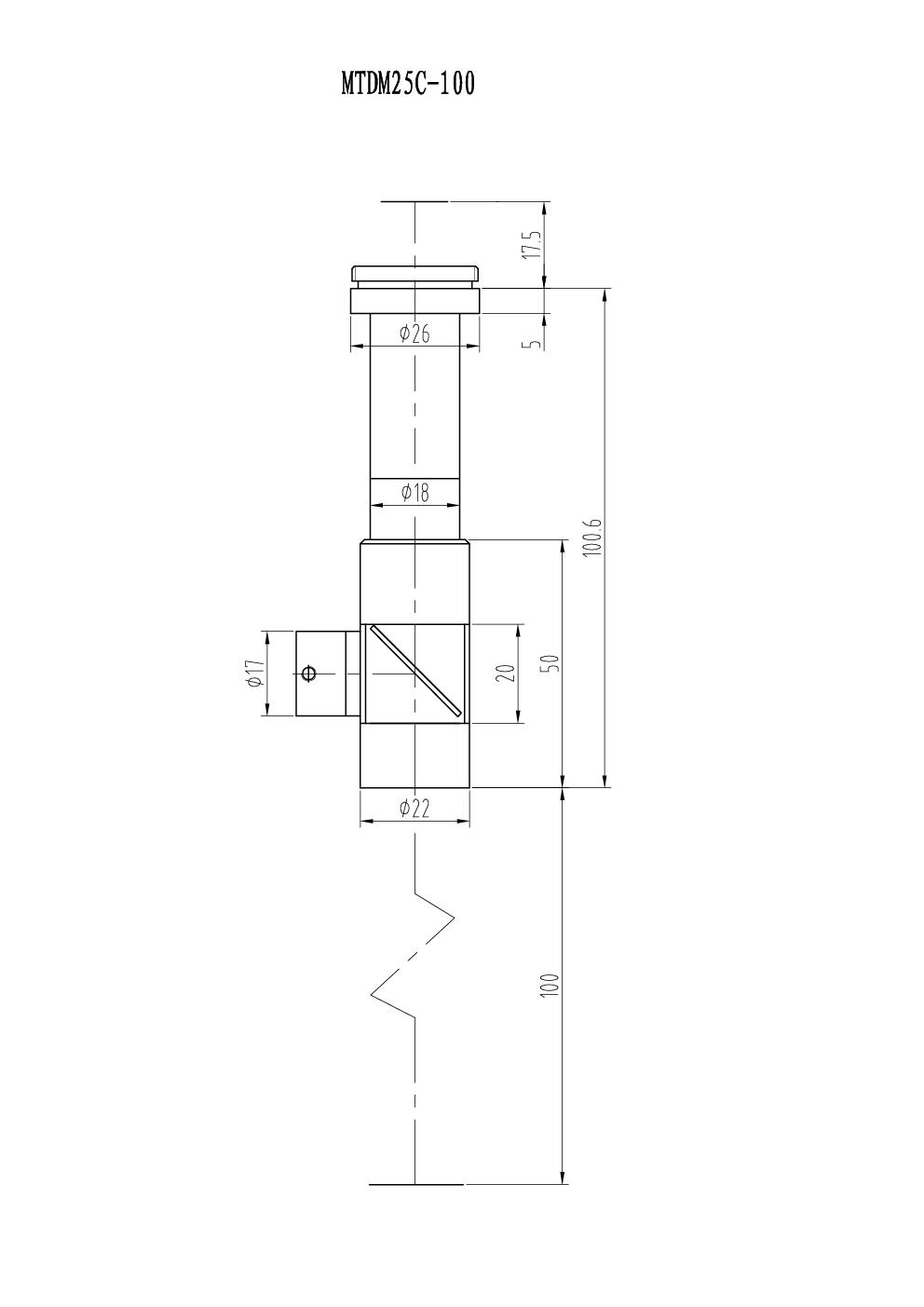

MTDM25C-100

2.5X

100

95.3X

179.9X

1.9X1.4

0.05

0.32

6.7

0.26%

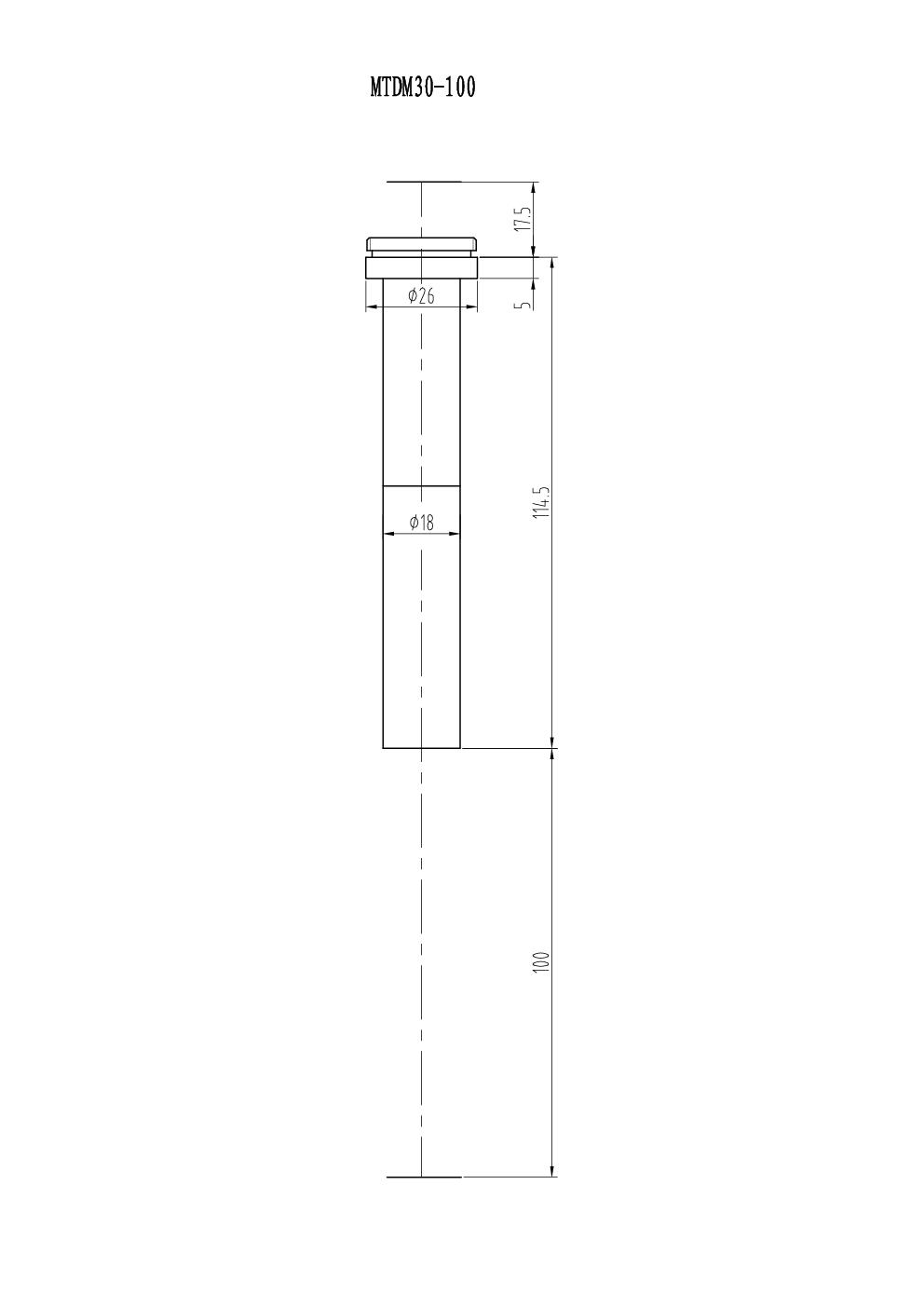

MTDM30-100

3.0X

100

114.3X

215.9X

1.6X1.2

0.055

0.24

6.4

0.2%

MTDM30C-100

3.0X

100

114.3X

215.9X

1.6X1.2

0.055

0.24

6.4

0.2%

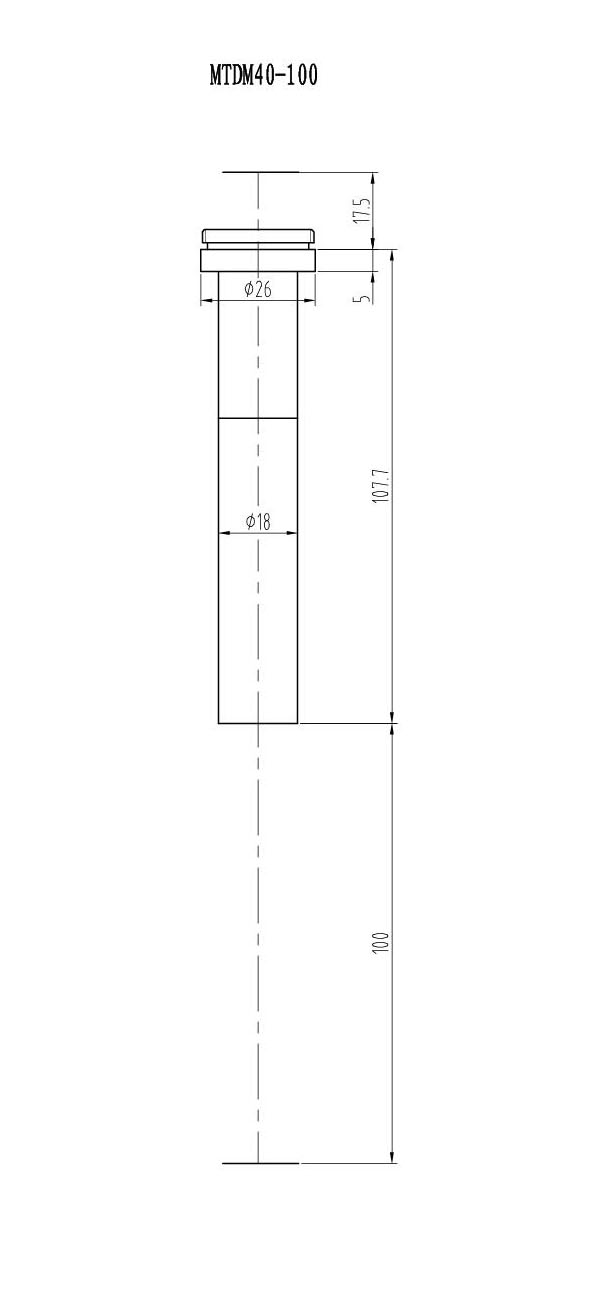

MTDM40-100

4.0X

100

152.4X

287.9X

1.2X0.9

0.06

0.17

5.6

0.25%

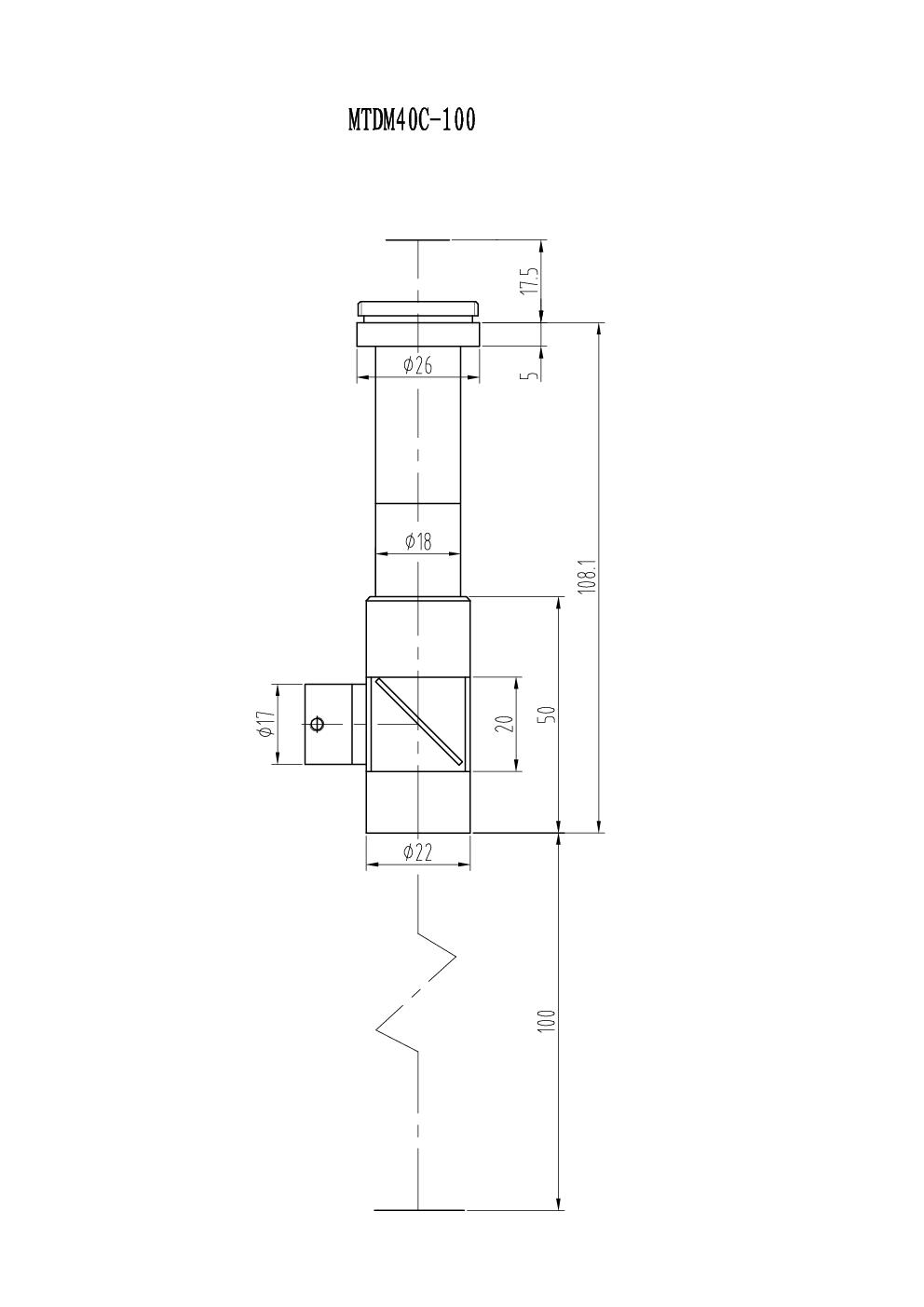

MTDM40C-100

4.0X

100

152.4X

287.9X

1.2X0.9

0.06

0.17

5.6

0.25%


3. Working distance is 150mm:

Model

Objective

WD (mm)

Total Mag.

FOV(mm)

NA

DOF(mm)

Resolution(μm)

Distortion

1/3"、9"

1/3"、17"

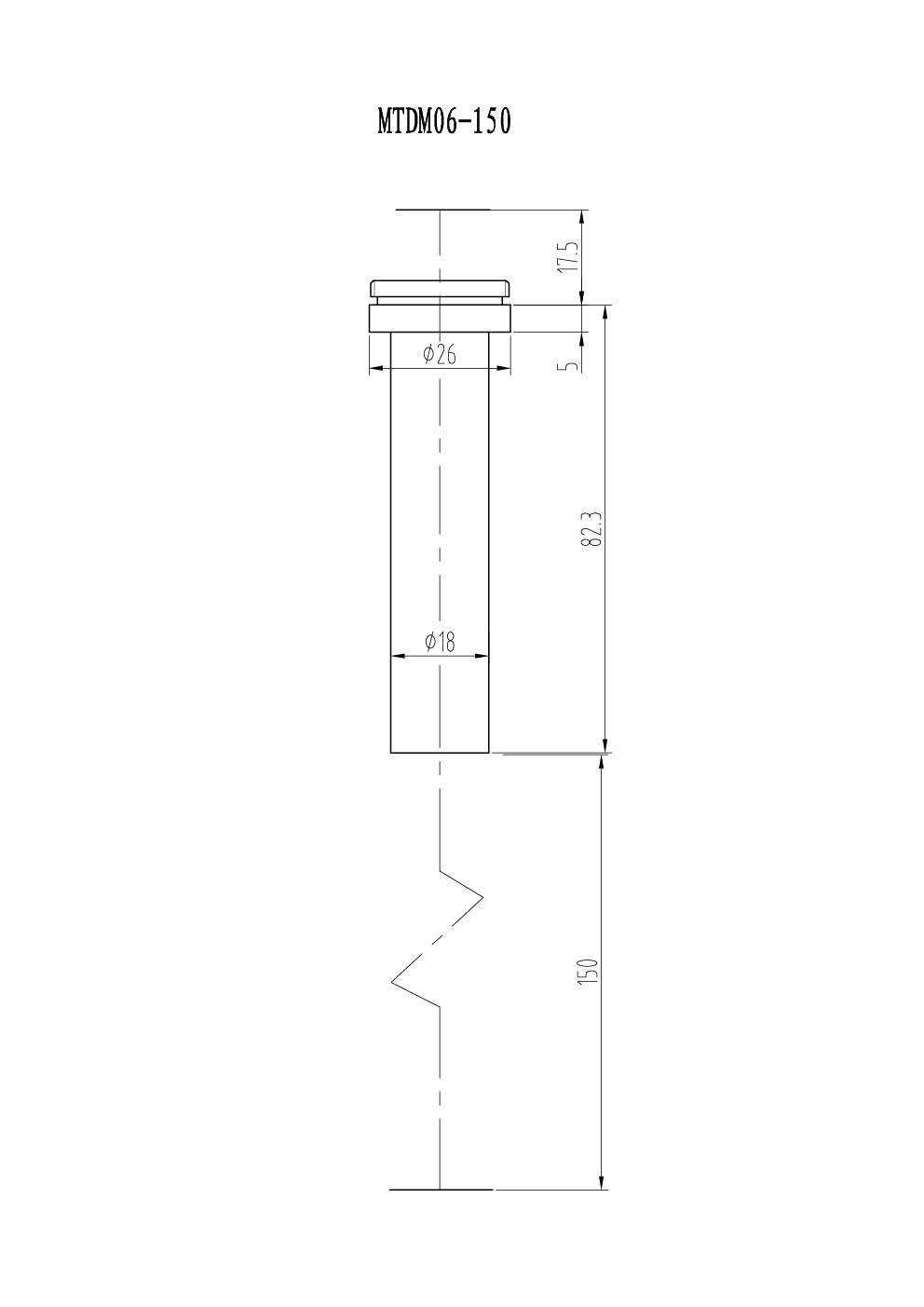

MTDM06-150

0.6X

150

22.9X

43.2X

8X6

0.04

1.67

8.4

0.01%

MTDM06C-150

0.6X

150

22.9X

43.2X

8X6

0.04

1.67

8.4

0.01%

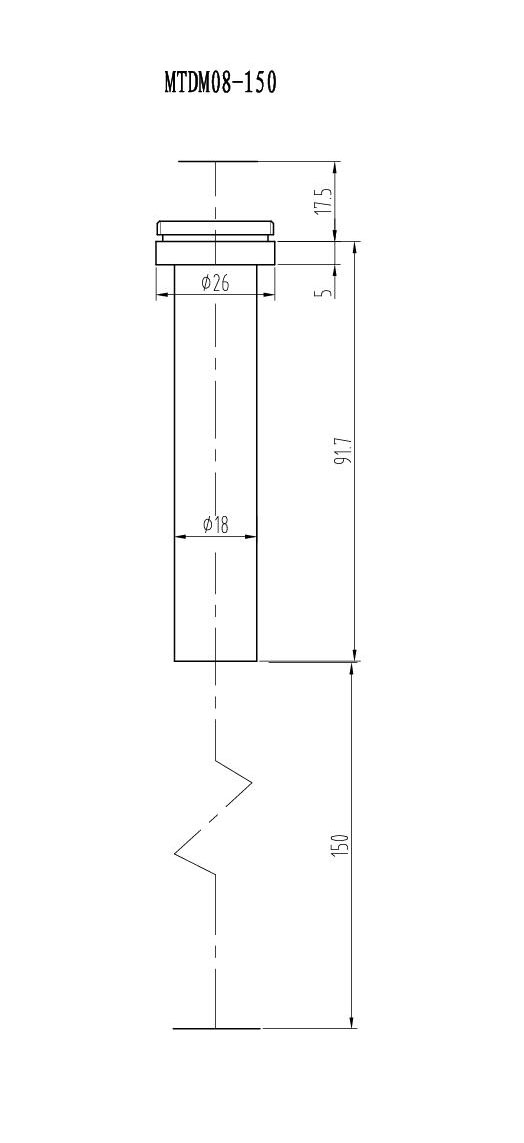

MTDM08-150

0.8X

150

30.5X

57.6X

6X4.5

0.04

1.25

8.4

0.12%

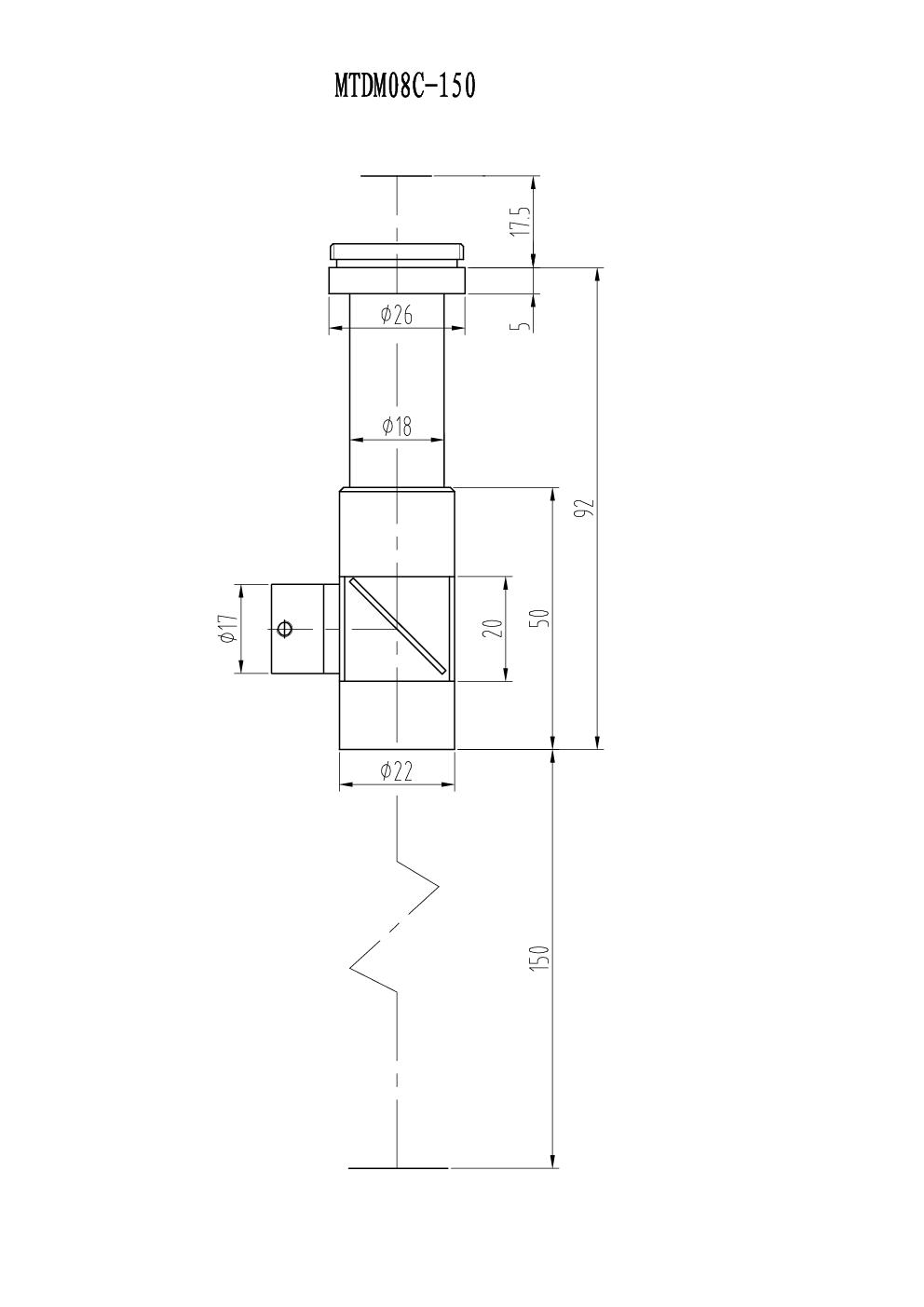

MTDM08C-150

0.8X

150

30.5X

57.6X

6X4.5

0.04

1.25

8.4

0.12%

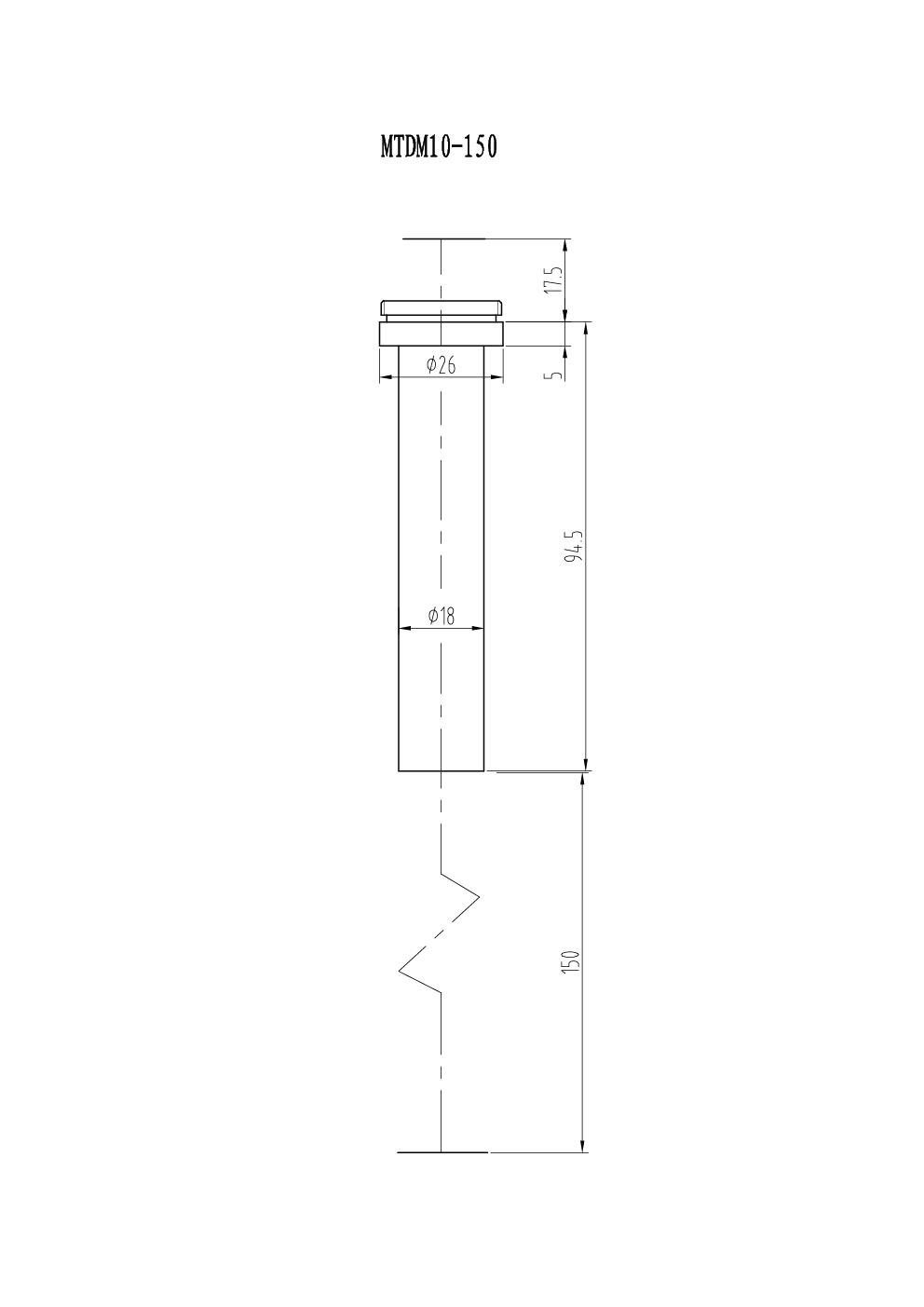

MTDM10-150

1.0X

150

38.1X

72.0X

4.8X3.6

0.04

1

8.4

0.28%

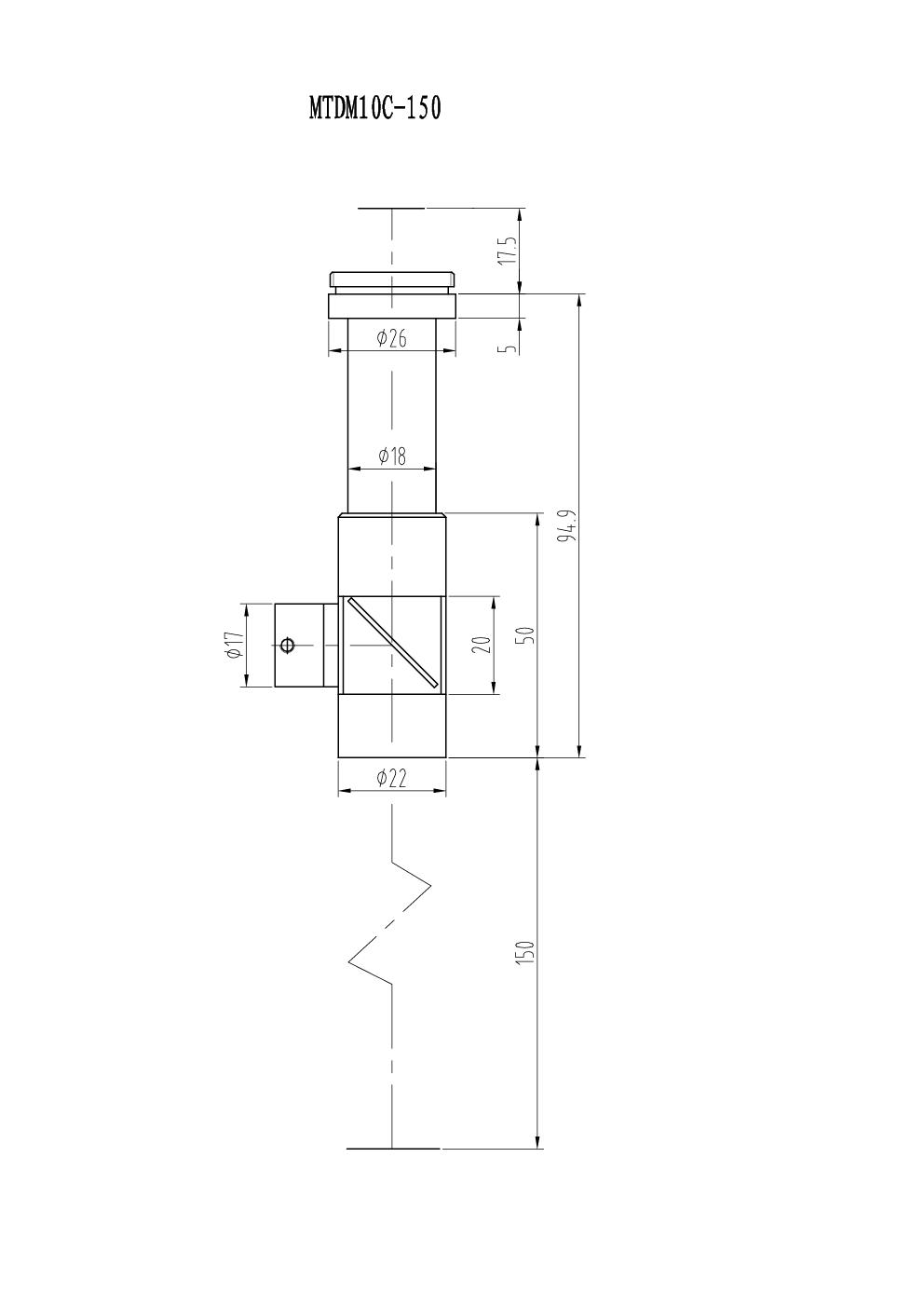

MTDM10C-150

1.0X

150

38.1X

72.0X

4.8X3.6

0.04

1

8.4

0.28%

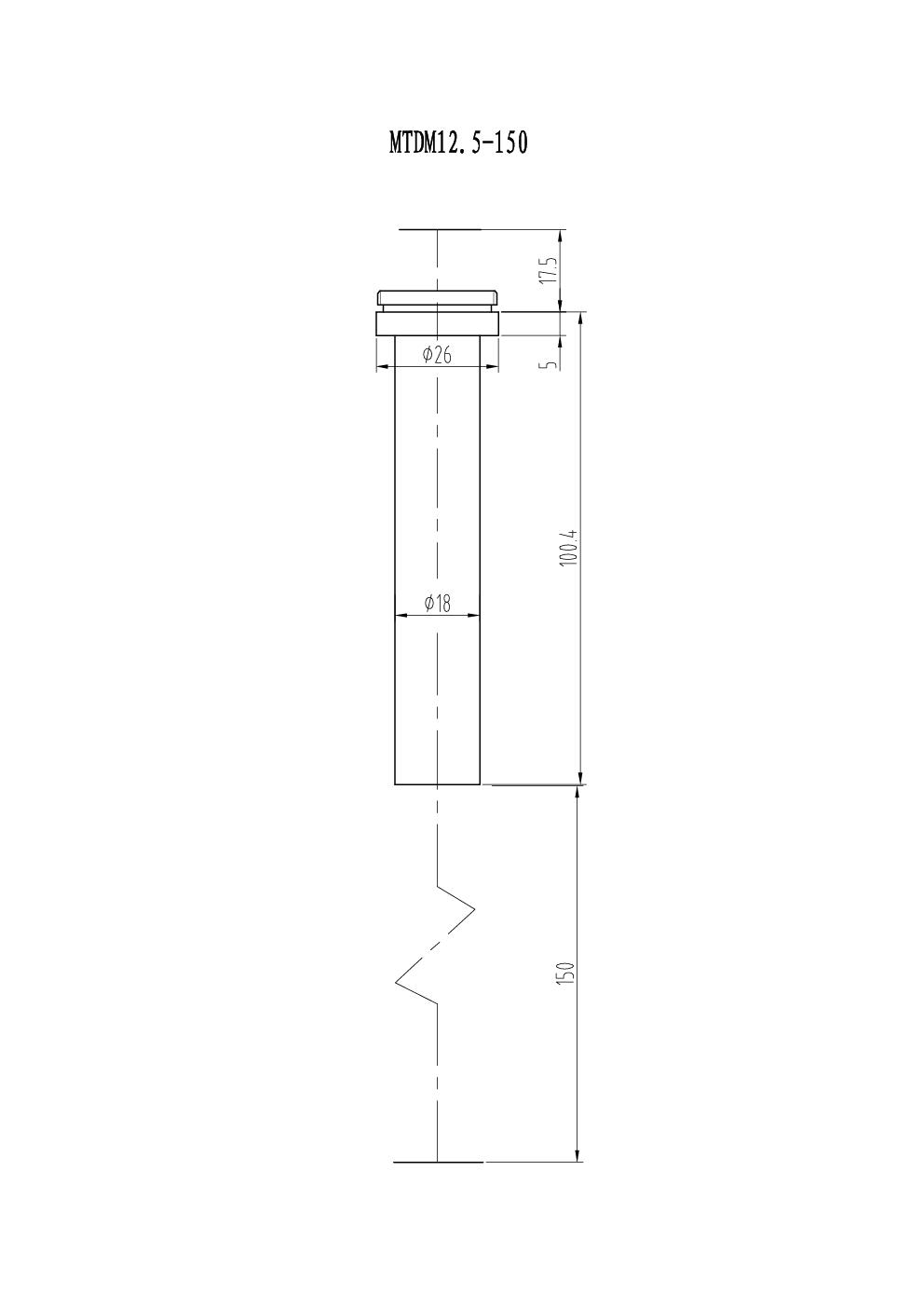

MTDM12.5-150

1.25X

150

47.6X

90.0X

3.8X2.9

0.04

0.8

8.4

0.4%

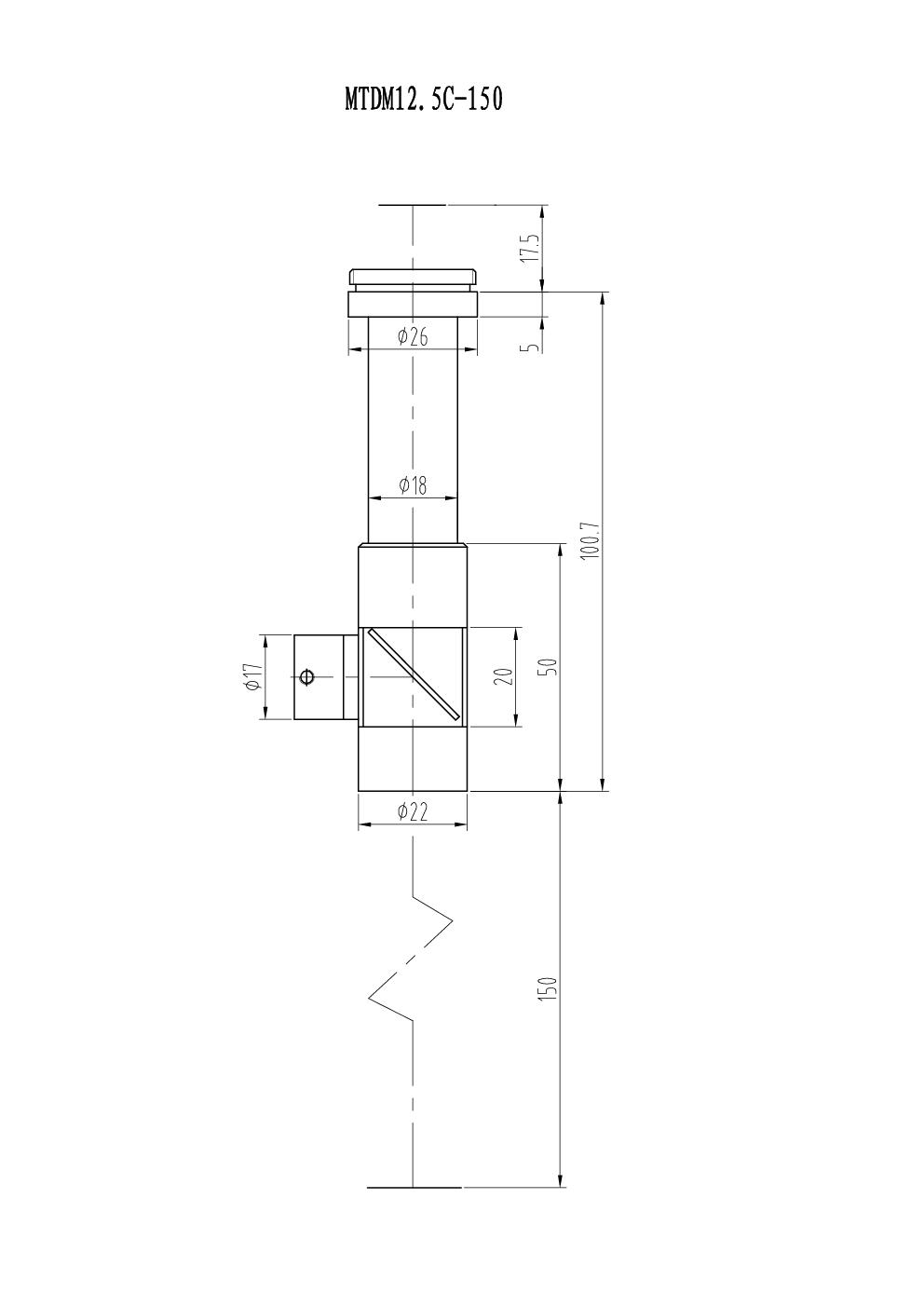

MTDM12.5C-150

1.25X

150

47.6X

90.0X

3.8X2.9

0.04

0.8

8.4

0.4%

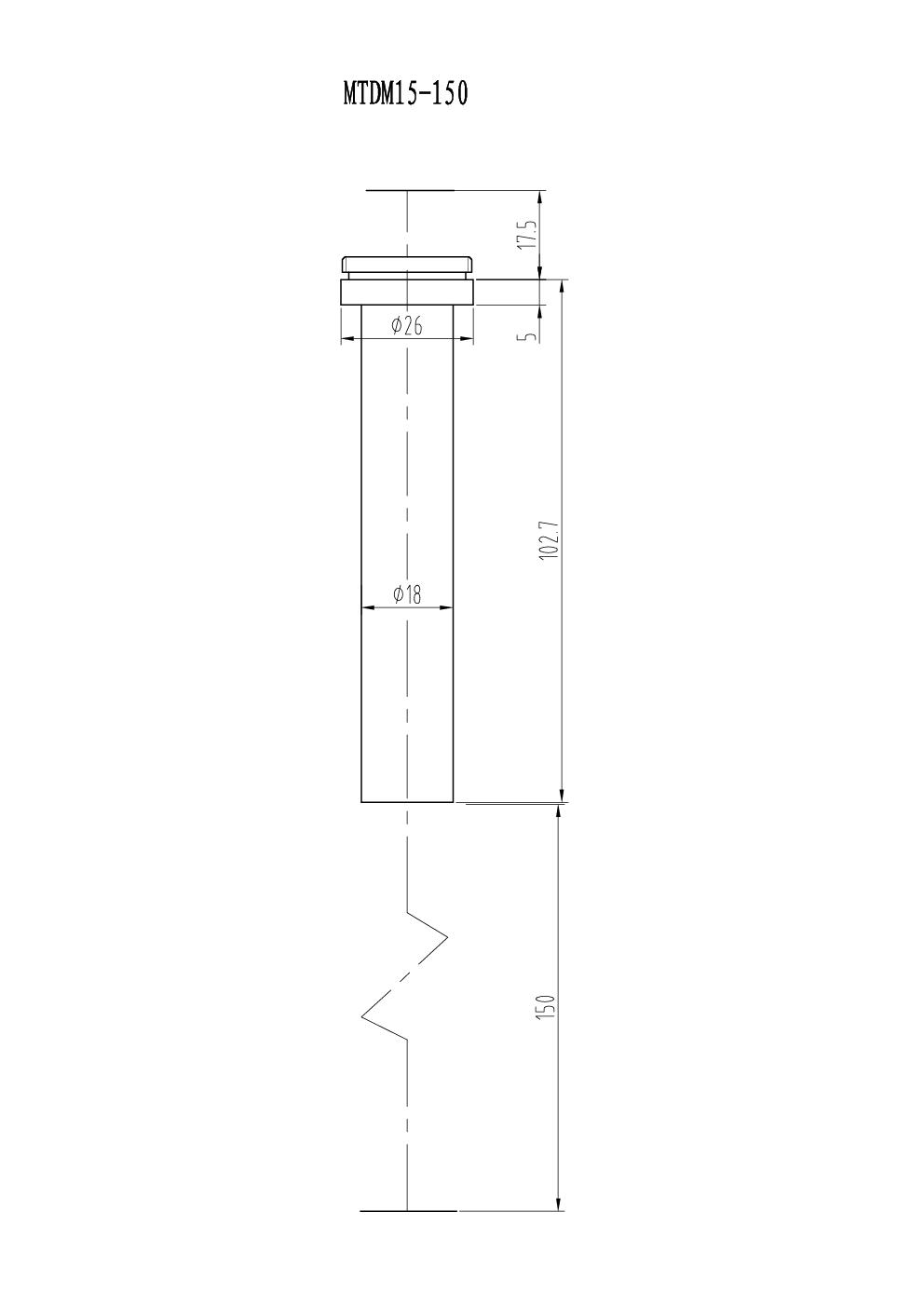

MTDM15-150

1.5X

150

57.2X

108.0X

3.2X2.4

0.04

0.67

8.4

0.5%

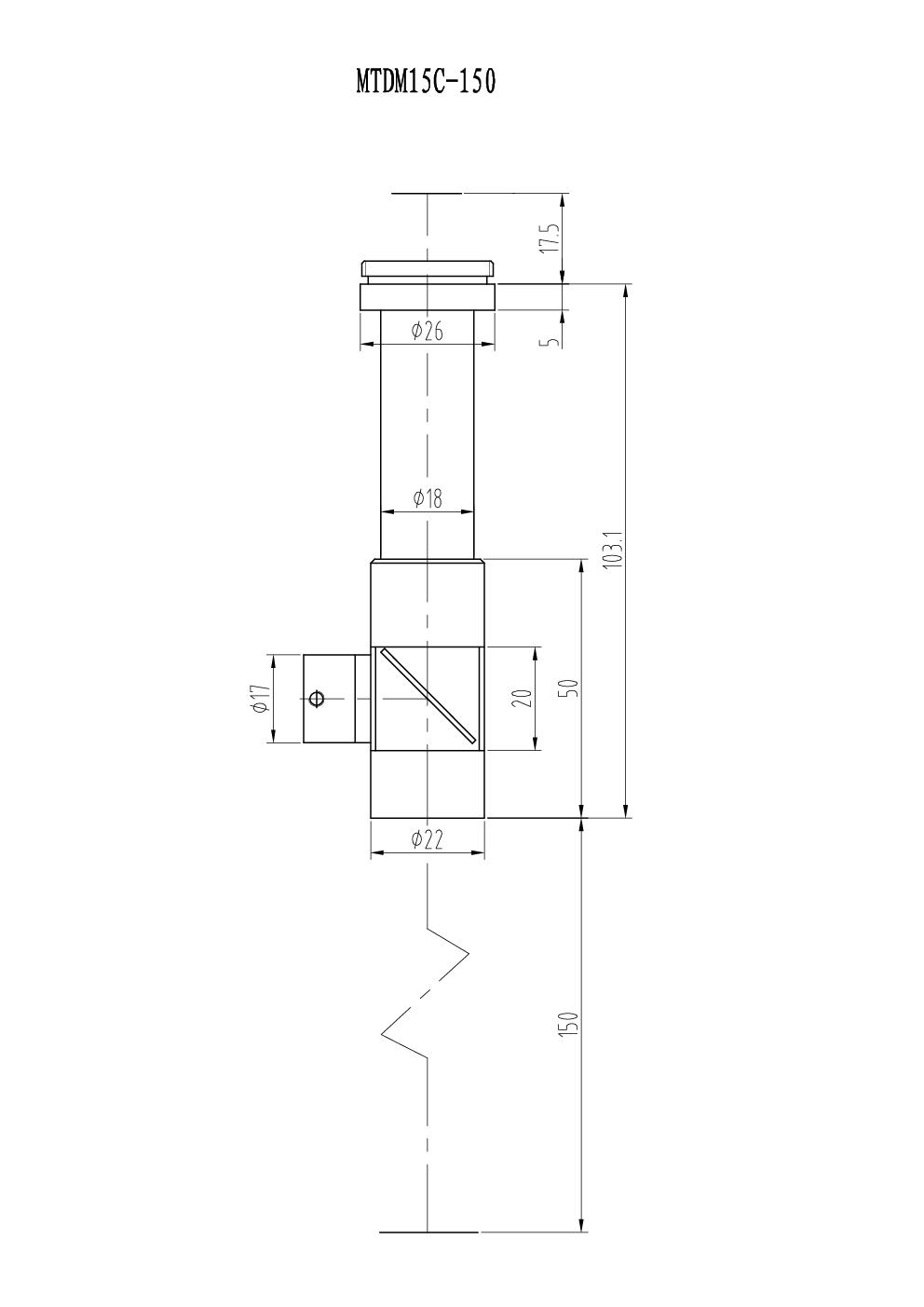

MTDM15C-150

1.5X

150

57.2X

108.0X

3.2X2.4

0.04

0.67

8.4

0.5%

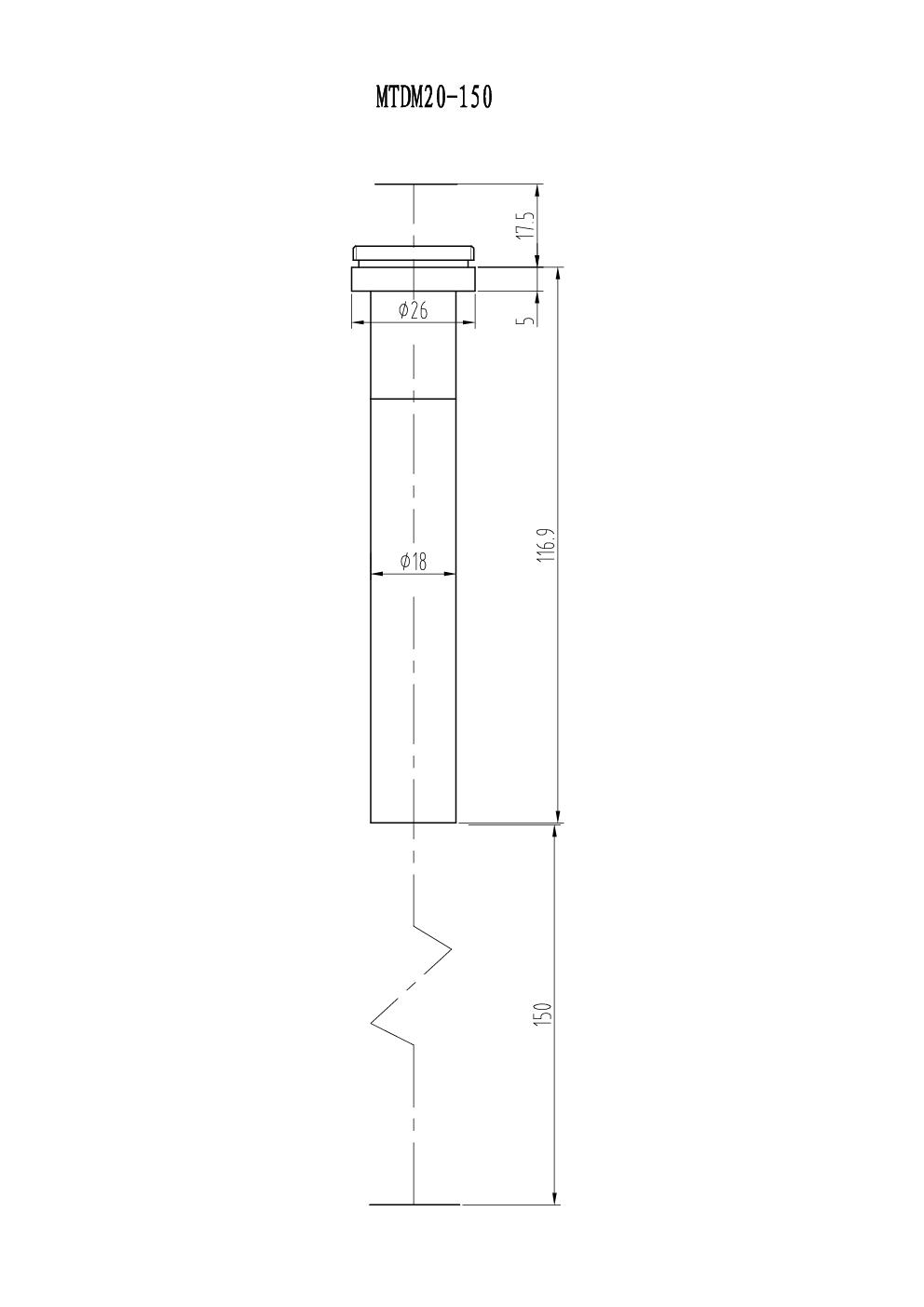

MTDM20-150

2.0X

150

76.2X

143.9X

2.4X1.8

0.042

0.48

8

0.35%

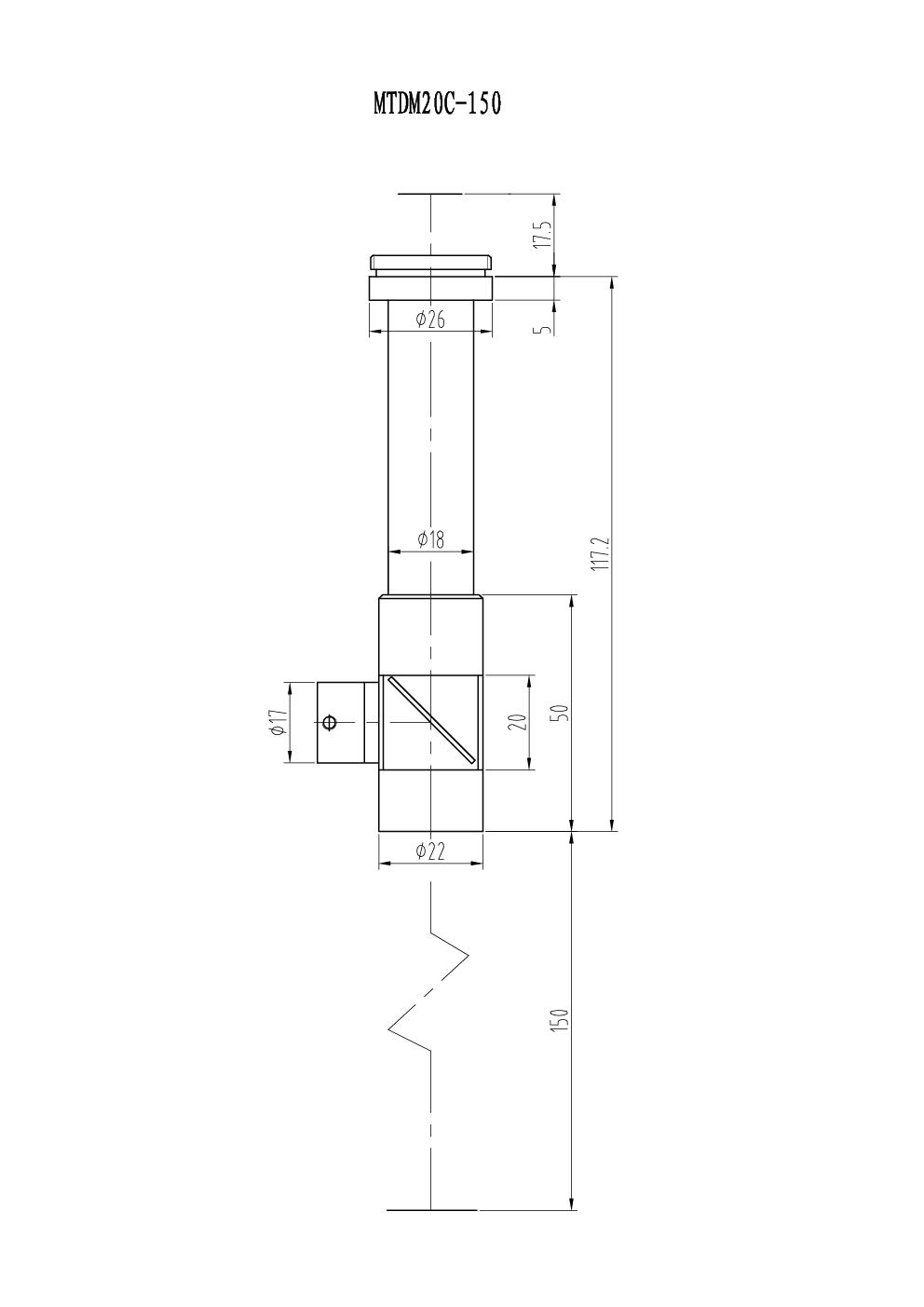

MTDM20C-150

2.0X

150

76.2X

143.9X

2.4X1.8

0.042

0.48

8

0.35%

Note:
        1. The depth of field is the value of parsing images if you use 1/2" CCD camera and monitor of level 320 line.(imaging surface concessional confusion circumference: 40μm)
        2. Resolution is the theory resolution of wavelength in 550nm.
        3. The largest compatible CCD: 1/2"
        4. Install dimension: C-mount, the whorl is 1 inch 32 button.
        5. In the line of total magnification, 1/3" is expressed CCD camera's specifications, 9"、17" is expressed monitor's screen dimensions. 1/3"、9" is expressed the total magnification of MTD series fixed magnification monocular video microscope objective in 1/3" CCD camera and 9" monitor.
