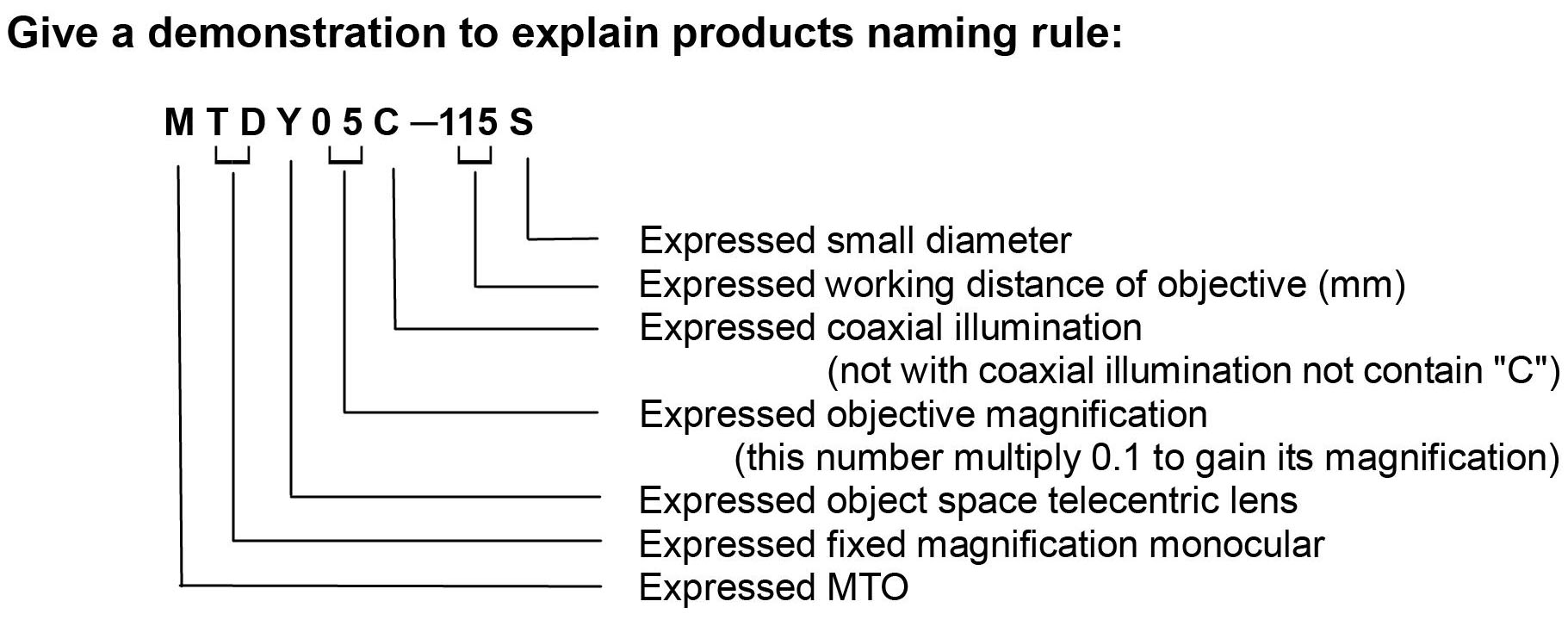

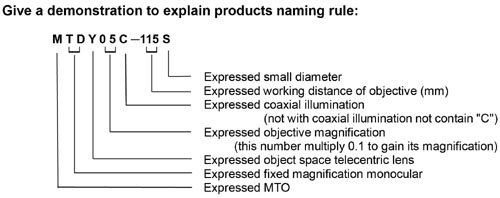

MTDY Object Space Telecentric Lens Fixed Magnification Series

◆  Telecentric Lens is that placed aperture diaphragm on image space focal plane of optical system.

◆  When aperture diaphragm on image space focal plane, even object distance changes and image distance changes, image height doesn’t changes, then object size of measure will not change.

Telecentric Lens is applied in industry precision measurement. Distortion is very small. High-powered one can have no distortion.





1. MTDY Object Space Telecentric Lens model and specification gather (working distance: 65mm)
Model

Objective magnification

Working distance (mm)

Total magnification

Field of video (mm)

NA

Resolution (μm)

Depth of field(mm)

Distortion

1/3"、9"

1/3"、17"

MTDY08-65

0.8X

65

30.5X

57.6X

6X4.5

0.03

11.2

1.67

0.09%

MTDY08C-65

0.8X

65

30.5X

57.6X

6X4.5

0.03

11.2

1.67

0.09%

MTDY10-65

1X

65

38.1X

72X

4.8X3.6

0.032

10.5

1.25

0.13%

MTDY10C-65

1X

65

38.1X

72X

4.8X3.6

0.032

10.5

1.25

0.13%

MTDY20-65

2X

65

76.2X

43.9X

2.4X1.8

0.05

6.7

0.4

0.3%

MTDY20C-65

2X

65

76.2X

43.9X

2.4X1.8

0.05

6.7

0.4

0.3%

MTDY30-65

3X

65

114.3X

215.9X

1.6X1.2

0.06

5.6

0.22

0.22%

MTDY30C-65

3X

65

114.3X

215.9X

1.6X1.2

0.06

5.6

0.22

0.22%

MTDY40-65

4X

65

152.4X

287.9X

1.2X0.9

0.039

8.6

0.26

0.24%

MTDY40C-65

4X

65

152.4X

287.9X

1.2X0.9

0.039

8.6

0.26

0.24%


2. MTDY Object Space Telecentric Lens model and specification gather (working distance: 115mm)
Model

Objective magnification

Working distance (mm)

Total magnification

Field of video (mm)

NA

Resolution (μm)

Depth of field(mm)

Distortion

1/3"、9"

1/3"、17"

MTDY05-115

0.5X

115

19.1X

36X

9.6X7.2

0.02

16.8

4

0.1%

MTDY05C-115

0.5X

115

19.1X

36X

9.6X7.2

0.02

16.8

4

0.1%

MTDY08-115

0.8X

115

30.5X

57.6X

6X4.5

0.03

11.2

1.67

0.6%

MTDY08C-115

0.8X

115

30.5X

57.6X

6X4.5

0.03

11.2

1.67

0.6%

MTDY10-115

1X

115

38.1X

72X

4.8X3.6

0.032

10.5

1.25

0.3%

MTDY10C-115

1X

115

38.1X

72X

4.8X3.6

0.032

10.5

1.25

0.3%

MTDY20-115

2X

115

76.2X

143.9X

2.4X1.8

0.04

8.4

0.5

0.17%

MTDY20C-115

2X

115

76.2X

143.9X

2.4X1.8

0.04

8.4

0.5

0.17%

MTDY30-115

3X

115

114.3X

215.9X

1.6X1.2

0.05

6.7

0.266

0.17%

MTDY30C-115

3X

115

114.3X

215.9X

1.6X1.2

0.05

6.7

0.266

0.17%

MTDY40-115

4X

115

152.4X

287.9X

1.2X0.9

0.053

6.3

0.188

0.16%

MTDY40C-115

4X

115

152.4X

287.9X

1.2X0.9

0.053

6.3

0.188

0.16%

Note:
1. The depth of field is the value of parsing images if you use 1/2" CCD camera and monitor of level 320 line.(imaging surface concessional confusion circumference: 40μm)
2. Resolution is the theory resolution of wavelength in 550nm.
3. The largest compatible CCD: 1/2"
4. Install dimension: C-mount, the whorl is 1 inch 32 button.
5. In the line of total magnification, “1/3"” is expressed CCD camera's specifications, “9"”、“14"” is expressed monitor's screen dimensions. “1/3"、9"” is expressed the total magnification of MTDY series Object Space Telecentric Lens in 1/3" CCD camera and 9" monitor.
